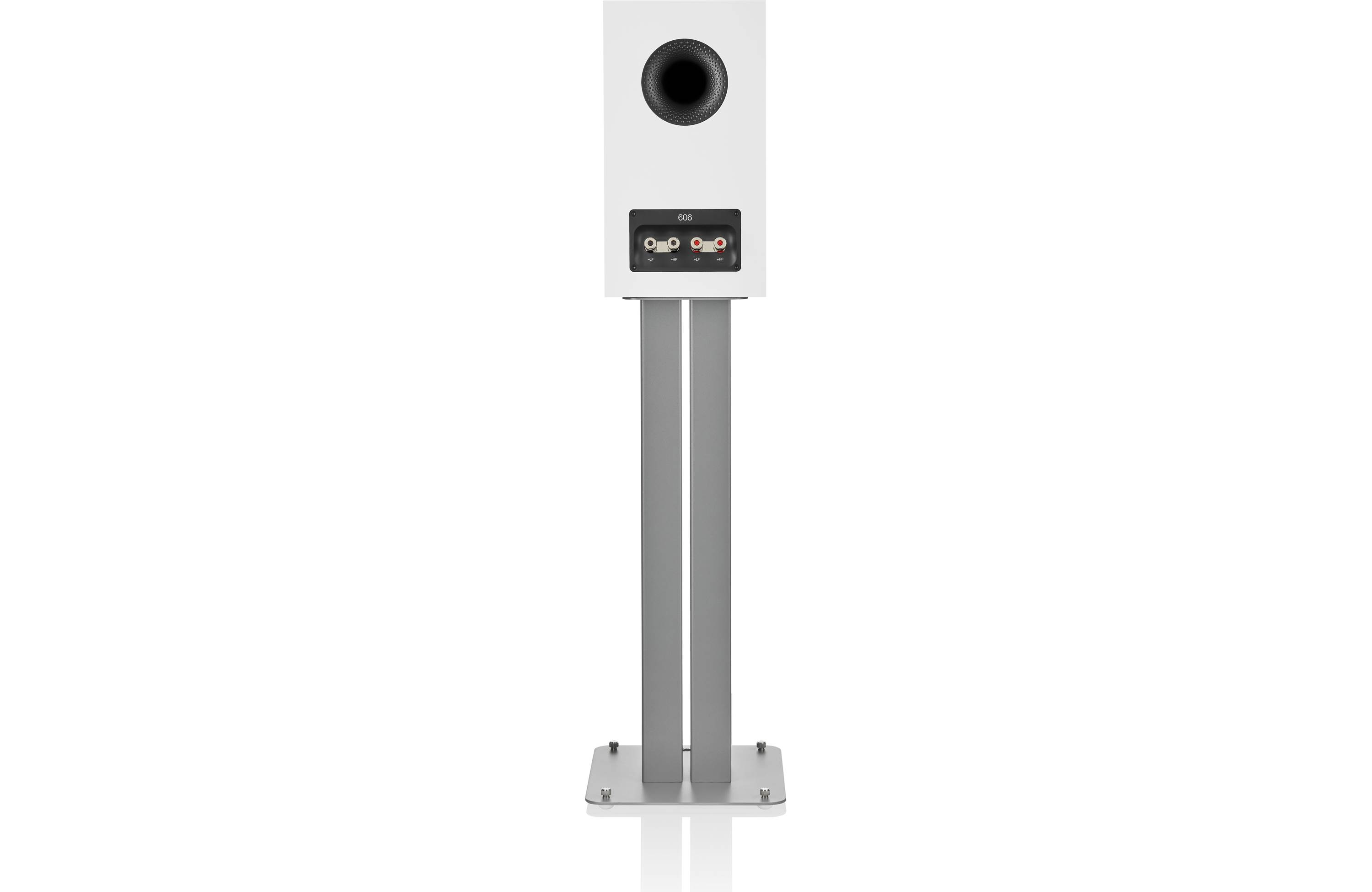

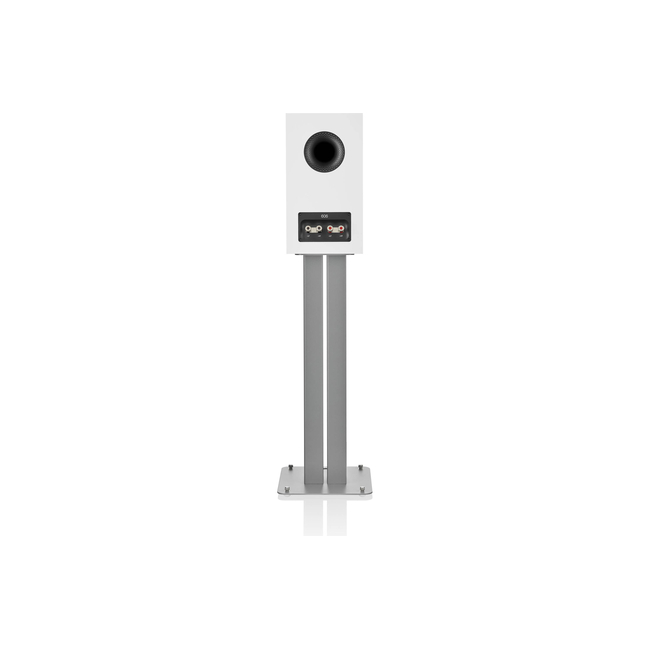

Upgraded speaker terminals
Derived from the speaker terminals recently introduced in our 700 Series range, the speaker terminals on the new 606 S3 feature an improved layout and a cleaner signal path between your amplifier and your loudspeakers.

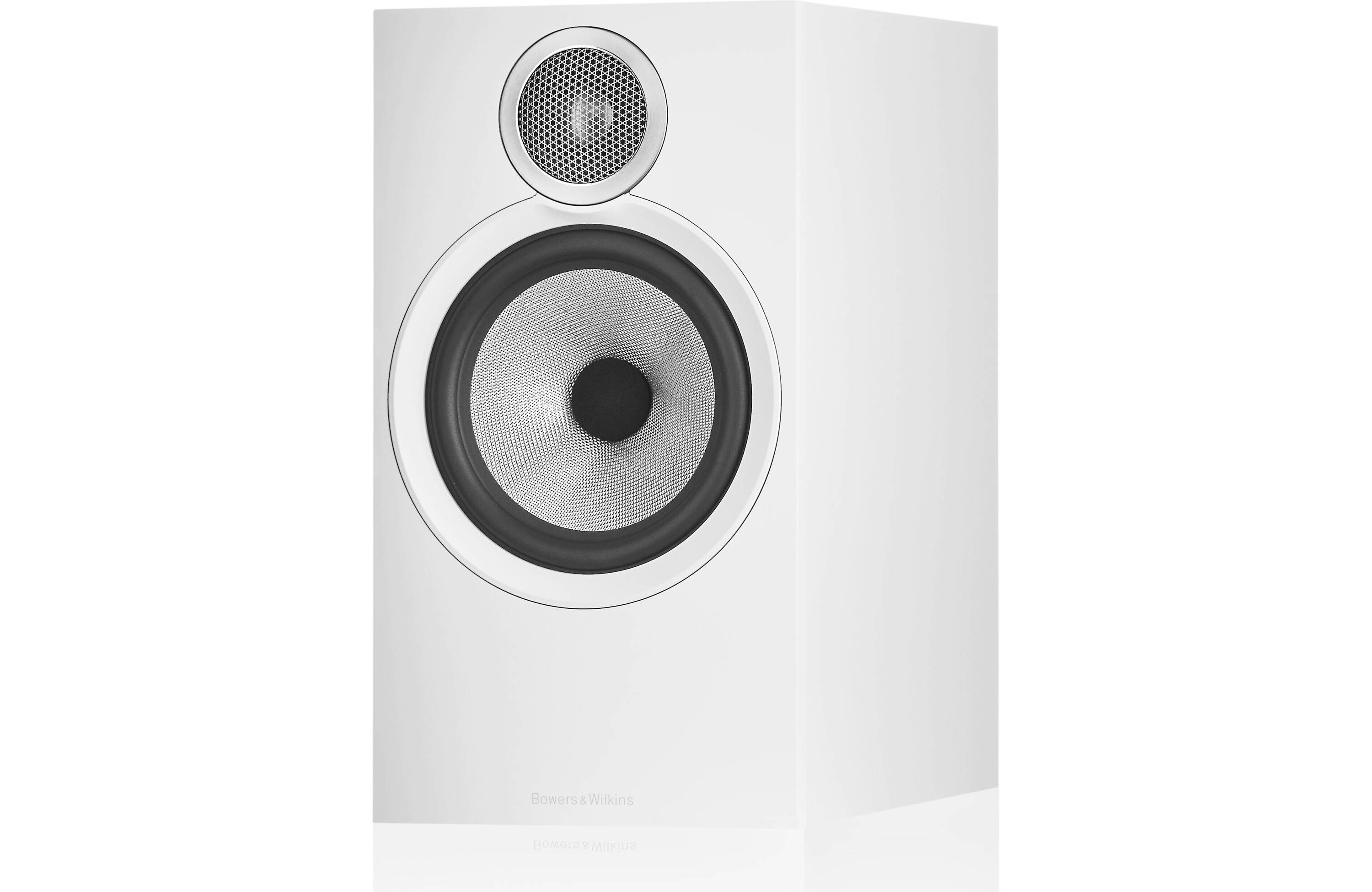

Description
2-way vented-box system
1x ø25mm (1 in) Titanium Dome high-frequency
1x ø165mm (6.5 in) Continuum cone bass / midrange
Technical Features
Decoupled Double Dome Titanium tweeter
Continuum cone bass / midrange
Flowport
Frequency range
-6dB 40Hz - 33kHz
Frequency response (+/-3dB from reference axis)
52Hz - 28kHz ±3dB
Sensitivity (on axis at 2.83Vrms at 1m)
88dB
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz
<0.5% 150Hz - 12kHz
Nominal impedance
8Ω (minimum 3.0Ω)
Recommended amplifier power
30W - 120W into 8Ω on unclipped programme
Max. recommended cable impedance
0.1Ω
Dimensions
Height: 344 mm (13.6 in) cabinet only
Width: 189 mm (7.4 in) cabinet only
Depth: 300 mm (11.8 in) cabinet only; 328 mm (12.9 in) including grille and terminals
Net weight
7.05kg (15.5 lb)
