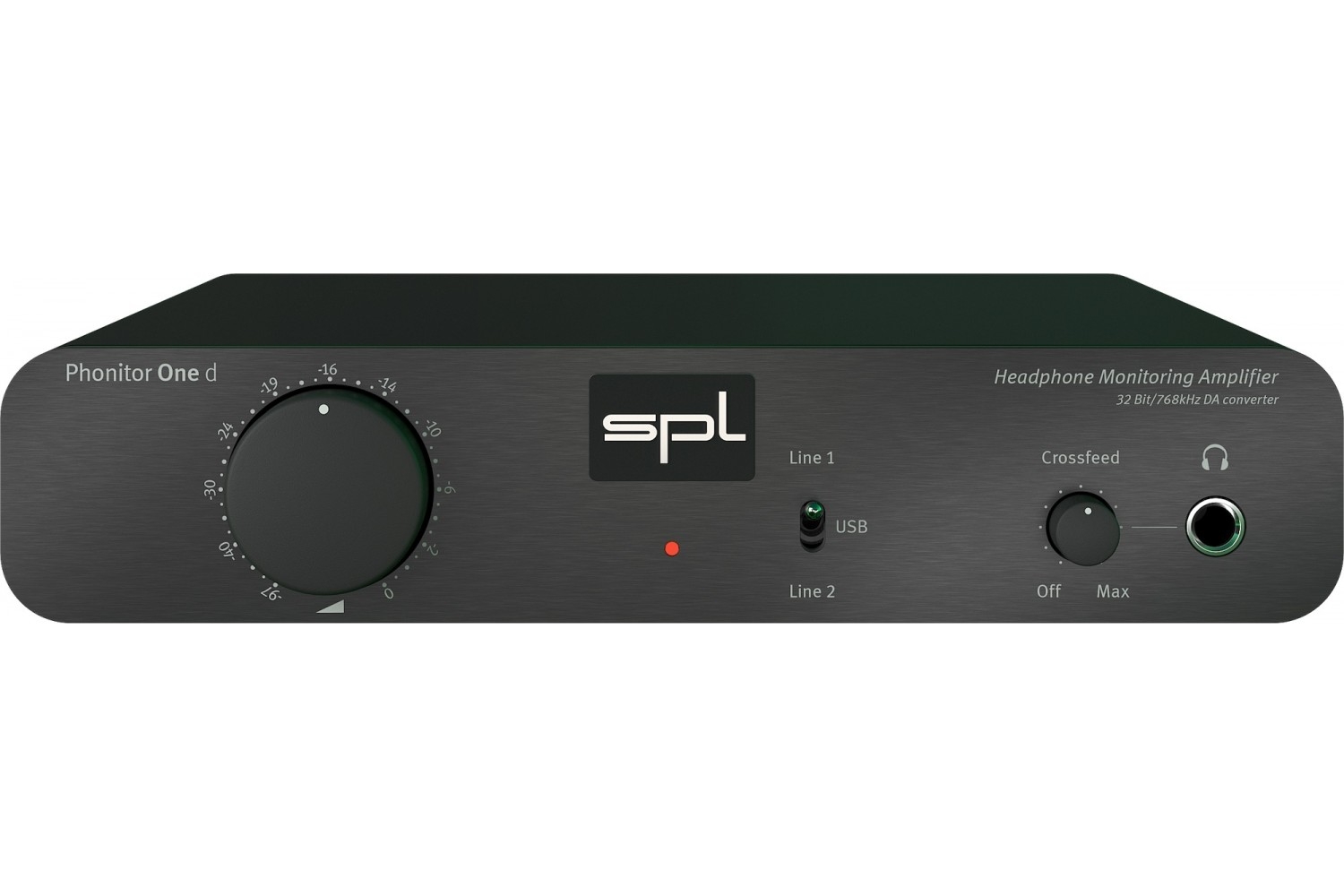

SPL Phonitor One d

Name: SPL Phonitor One d
Brand: SPL
SKU: 48973
Price: 620 EUR
Availability: InStock

Leave a review

SKU: 48973

SPL Phonitor One d

Με καινοτόμο Phonitor Matrix, μετατροπέα DA 32-bit και εξαιρετική ποιότητα ήχου. Για εμάς ο ήχος είναι πάντα στο προσκήνιο. Όταν ακούγεται καλό, μας αρέσει να το ακούτε και έσεις. Για να αποκτήσετε έναν τέτοιο ήχο, χρειάζεστε εμπειρία και τεχνική φινέτσα. Έχουμε ενσωματώσει και τα δύο στη Σειρά One.

Κατόπιν παραγγελίας - Σύμφωνα με την αποθήκη του προμηθευτή

€620,00 Final Price

Add to cart

Do you have any questions or want to place a phone order? Call us at 2109401167

Buy Now Pay Later with the use of a debit card

We support installment purchases using a debit card. For details call us Phone

Type him postcode της περιοχής σας - ώστε να σας ενημερώσουμε για τους τρόπους αποστολής / παραλαβής.

After Sales Support

Supplier guarantee up toYears

Next to you since 1976

Over 46 years of experience!

Join us

Earn special offers

Alternative Suggestions

SKU: 53003

SoundMagic A30i ενισχυτής ακουστικών με lightning

In Stock

€79,99

SKU: 50048

SoundMagic A30 DAC ενισχυτής ακουστικών με USB C

In Stock

€79,99

SKU: 87736

iBasso DC04 PRO - Blue

In Stock

€134,00

SKU: 87737

iBasso DC06 PRO (6971585541360)

In Stock

€134,00

SKU: 84923

Shanling UA4 - Titanium (6972835392022)

In Stock

€109,00

SKU: 59489

iFi Audio GO bar 5060738784189

In Stock

€329,00

SKU: 78082

iFi Audio Go Blu Case Blue/Gray (5060738786442)

In Stock

€35,00

Τελευταία Τεμάχια

SKU: 48982

iFi Audio Micro iDSD Signature (5060738784080)

In Stock

€749,00

SKU: 59073

iFi Audio ZEN Air Can (5060738786756)

In Stock

€99,90

SKU: 84910

Shanling M0 Pro - Red (6972835391476)

In Stock

€138,00

SKU: 69070

Shanling M3 Ultra - Black

In Stock

€499,00

SKU: 57841

Shanling M6 (21) - 64GB

In Stock

€599,00

SKU: 53742

iFi Audio GO Blu (5060738785230)

In Stock

€199,00

SKU: 85022

iFi Audio ZEN CAN Signature Standard (5060738787920)

In Stock

€299,00

SKU: 93879

iFi Audio Go Bar KENSEI (5060738788514)

In Stock

€449,00

Τελευταία Τεμάχια

SKU: 84911

Shanling M0 Pro - Green (6972835391483)

In Stock

€139,00

Τελευταία Τεμάχια

SKU: 69067

Shanling UA1s - Black

In Stock

€55,00

SKU: 75405

Fiio KA2 - Lighting - 4.4mm Black (6953175710356)

In Stock

€84,99

SKU: 78297

Fiio Q11 (6953175750109)

In Stock

€115,00

SKU: 48566

Fiio Q3 (6953175750086)

In Stock

€169,99

SKU: 59555

Fiio KA2 - Type C - 4.4mm Black (6953175710349)

In Stock

€74,20

Τελευταία Τεμάχια

SKU: 69068

Shanling UA3

In Stock

€120,00

SKU: 69098

iBasso DC03 PRO - Gray

In Stock

€89,90

SKU: 69203

iFi Audio Go Link (5060738786725)

In Stock

€64,90

SKU: 79881

iFi Hip Dac 3 (5060738787364)

In Stock

€199,00

€197,00

The Power Amplifier

The output stage of the headphone amplifier is designed as a push-pull amplifier in class AB mode. The bipolar transistors share the amplification of the positive and negative half-waves, which produces a higher gain and a higher output voltage than in Class A operation, where only one transistor amplifies both half-waves.

The output stage transistors are thermally coupled and thus run particularly coherently, which contributes to a consistent and stable sound image.

The power supply has a buffer circuit with low source resistance, ensuring generous current reserves even when operating low-impedance headphones.

The Revolution

in the headphone amplifier is the Phonitor Matrix, with adjustable crossfeed, thanks to which you can create mixes with headphones that sound the same on speakers. The Phonitor Matrix in its largest expansion stage has three setting parameters: Crossfeed, Speaker Angle and Center Level. In the Phonitor One d, the center level is preset to -1 dB and the speaker angle to 30°. These are the most commonly used values. The crossfeed function determines the crosstalk of the channels, the so-called interaural level difference. The intensity of the crossfeed is fully variable. At the beginning of the control path the function is not in the audio path. It is only switched on by adding it via relay (hysteresis circuit). The audio signal therefore does not pass through the crossfeed stage if this is not desired.

Three Stereo Inputs

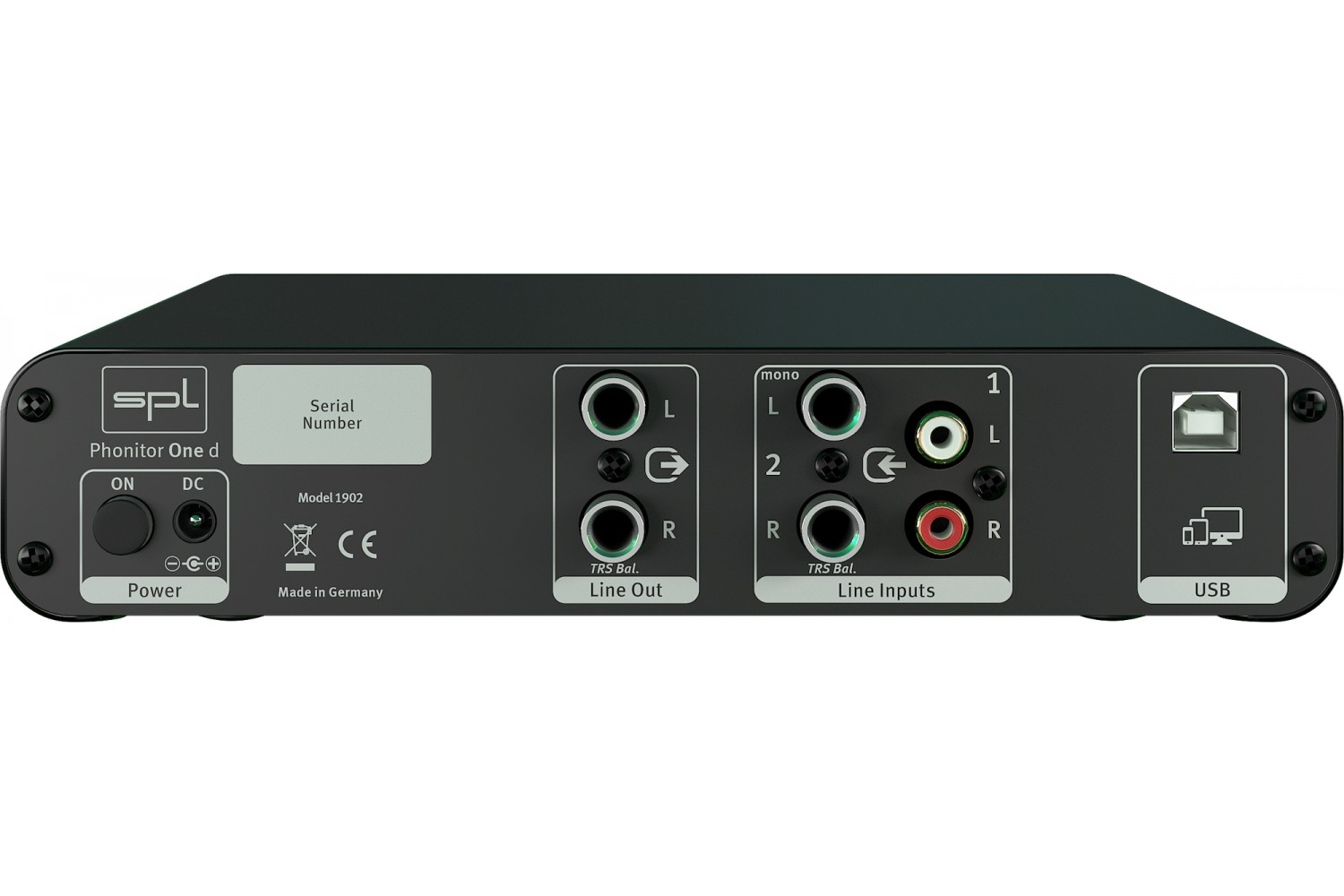

Two analog stereo inputs and one digital USB input can be connected to Phonitor One d. The computer, tablet or phone are preferably connected via USB. Other players such as a CD player, mixer, synthesizer or an analog tape machine / tape deck can be connected to the analog line inputs either balanced (TRS jacks) or unbalanced (RCA)

Specifications:

Analog inputs & outputs; 6.35 mm (1/4") TRS Jack, RCA

Input gain (max.) +22.5 dBu
Input impedance Line In 2 (balanced) 20 kΩ
Common mode rejection < 60 dB
Input impedance Line In 1 (unbalanced) 47 kΩ
Output gain (max.) +22 dBu
Output impedance Line Out (balanced) 150 Ω
Frequency range (-3dB) 10 Hz - 200 kHz
Noise (A-weighted, 0 dBu, 600 Ω load) - 99 dB
THD + N (0 dBu, 10 Hz – 22 kHz, 600 Ω) 0.002 %
THD + N (0 dBu, 10 Hz – 22 kHz, 32 Ω) 0.013 %
Crosstalk (1 kHz) < 75 dB
Dynamic range 121.5 dB

USB, 32-Bit AD/DA

USB (B), PCM sample rates 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz kHz
USB (B), DSD over PCM (DoP), sample rates 2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz MHz
0 dBFS calibrated to 15 dBu
Noise (A-weighted, 44.1/48 kHz sample rate) -113 dBFS
THD + N (-1 dBFS, 10 Hz – 22 kHz) 0.0012 %
Dynamic range (44,1/48 kHz sample rate) 113 dBFS

Headphones Output; 6.35 mm (1/4") TRS Jack

Wiring Tip = Left, Ring = Right, Sleeve = GND
Source impedance 20 Ω
Frequency range (-3 dB) 10 Hz - 200 kHz
Noise (A-weighted, 600 Ω) -97 dB
THD + N (0 dBu, 10 Hz – 22 kHz, 600 Ω) 0.002 %
THD + N (0 dBu, 10 Hz – 22 kHz, 32 Ω) 0.013 %
Max output power (600 Ω) 2 x 190 mW
Max output power (250 Ω) 2 x 330 mW
Max output power (47 Ω) 2 x 400 mW
Fade-out attenuation (600 Ω) -99 dB
Crosstalk (1 kHz, 600 Ω) -75 dB

Internal Power Supply

Operating voltage for analog audio +/- 17 V
Operating voltage for headphone amplifier +/- 19 V
Operating voltage for relays and LEDs +12 V
Operating voltage for digital audio +3,3 V, +5 V

External Power Supply

AC/DC switching adaptor Mean Well GE18/12-SC
DC plug (+) pin 2.1mm; (-) outside ring 5.5mm
Input 100 - 240 V AC; 50 - 60 Hz; 0.7 A
Output 12 V DC; 1.5 A

Dimensions & Weight

W x H x D (width x height incl. feet x depth) 210 x 49,6 x 220 mm
Unit weight 1,45 kg

The Preamplifier Stage

Two Burr-Brown OPA 2134 SoundPlus™ operational amplifiers provide the pre-amplification. These are specially designed for audiophile circuits and are characterized by extremely low noise and minimal distortion of only 0.00008%.

Thanks to a true FET stage, the OPA 2134 achieves a slew rate of 20V/µs, making it a high-speed operational amplifier. This has an immediate positive effect on the liveliness of the playback.

In addition, low capacitance film capacitors are installed in the signal path as bypass capacitors of the coupling capacitors, which ensures a more precise transmission of the high-frequency signal components.

The excellent Panasonic ‘Electric Double Layer’ gold electrolytic capacitors are used as coupling capacitors. They offer the highest storage capacity of all capacitor technologies

The Power Amplifier

The output stage transistors are thermally coupled and thus run particularly coherently, which contributes to a consistent and stable sound image.

The power supply has a buffer circuit with low source resistance, ensuring generous current reserves even when operating low-impedance headphones.

The Revolution

Three Stereo Inputs

Specifications:

Analog inputs & outputs; 6.35 mm (1/4") TRS Jack, RCA

Input gain (max.) +22.5 dBu
Input impedance Line In 2 (balanced) 20 kΩ
Common mode rejection < 60 dB
Input impedance Line In 1 (unbalanced) 47 kΩ
Output gain (max.) +22 dBu
Output impedance Line Out (balanced) 150 Ω
Frequency range (-3dB) 10 Hz - 200 kHz
Noise (A-weighted, 0 dBu, 600 Ω load) - 99 dB
THD + N (0 dBu, 10 Hz – 22 kHz, 600 Ω) 0.002 %
THD + N (0 dBu, 10 Hz – 22 kHz, 32 Ω) 0.013 %
Crosstalk (1 kHz) < 75 dB
Dynamic range 121.5 dB

USB, 32-Bit AD/DA

USB (B), PCM sample rates 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz kHz
USB (B), DSD over PCM (DoP), sample rates 2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz MHz
0 dBFS calibrated to 15 dBu
Noise (A-weighted, 44.1/48 kHz sample rate) -113 dBFS
THD + N (-1 dBFS, 10 Hz – 22 kHz) 0.0012 %
Dynamic range (44,1/48 kHz sample rate) 113 dBFS

Headphones Output; 6.35 mm (1/4") TRS Jack

Wiring Tip = Left, Ring = Right, Sleeve = GND
Source impedance 20 Ω
Frequency range (-3 dB) 10 Hz - 200 kHz
Noise (A-weighted, 600 Ω) -97 dB
THD + N (0 dBu, 10 Hz – 22 kHz, 600 Ω) 0.002 %
THD + N (0 dBu, 10 Hz – 22 kHz, 32 Ω) 0.013 %
Max output power (600 Ω) 2 x 190 mW
Max output power (250 Ω) 2 x 330 mW
Max output power (47 Ω) 2 x 400 mW
Fade-out attenuation (600 Ω) -99 dB
Crosstalk (1 kHz, 600 Ω) -75 dB

Internal Power Supply

Operating voltage for analog audio +/- 17 V
Operating voltage for headphone amplifier +/- 19 V
Operating voltage for relays and LEDs +12 V
Operating voltage for digital audio +3,3 V, +5 V

External Power Supply

AC/DC switching adaptor Mean Well GE18/12-SC
DC plug (+) pin 2.1mm; (-) outside ring 5.5mm
Input 100 - 240 V AC; 50 - 60 Hz; 0.7 A
Output 12 V DC; 1.5 A

Dimensions & Weight

W x H x D (width x height incl. feet x depth) 210 x 49,6 x 220 mm
Unit weight 1,45 kg
