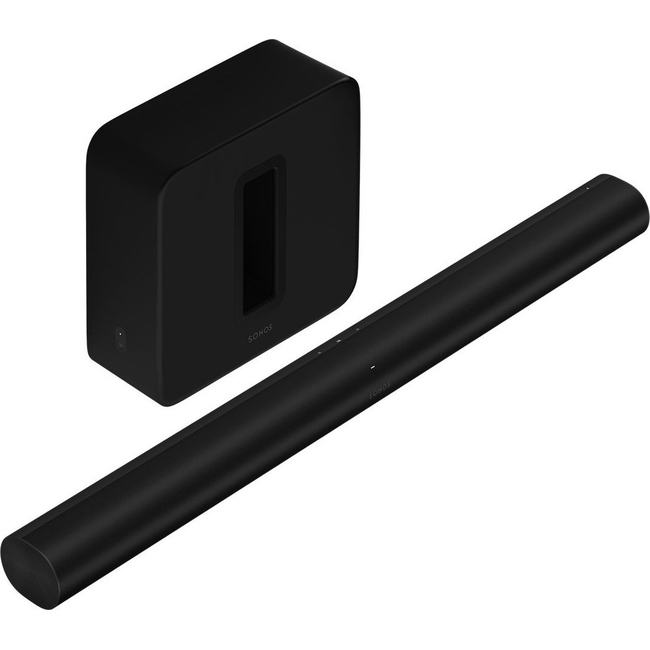

Includes: Arc, Sub (Gen 3)

3D sound with Dolby Atmos

Experience shows, films, and video games with the precise and immersive sound of Dolby Atmos on Arc. The upwards-firing drivers create a multi-dimensional soundstage that moves around you, rendering every whisper and explosion with dramatic clarity, detail, and depth.

A realistic listening experience

Arc's advanced processing creates five channels that masterfully deliver sound to your ears from all directions at the exact right moment.

Tuned to perfection

Trueplay tuning technology optimises the sound for the unique acoustics of the room where Arc is placed, calibrating the height channels for precise localisation.

No buzz, just bass

Two force-cancelling drivers at the centre of Sub eliminate vibration and rattle so you get powerful bass without any distortion.

Voice control

The Google Assistant and Amazon Alexa are built right in so you can play music, check news, set alarms, get your questions answered, and more, completely hands free.

Arc

• Eleven Class-D digital amplifiers perfectly tuned to Arc's acoustic architecture.
• Eight elliptical woofers ensure faithful playback of mid-range and vocal frequencies in addition to rich bass.
• Three precisely-angled silk-dome tweeters create crisp high frequencies and crystal-clear dialogue.
• Far-field microphone array uses advanced beamforming and multi-channel echo cancellation so your voice assistant can be readily activated.
• Trueplay™ software dynamically tunes the speaker to the unique acoustics of the room. iOS device required.
• Adjustable EQ settings in the app, including bass, treble, and loudness.
• Speech Enhancement emphasises the frequencies of the human voice to clarify dialogue.
• Night Sound reduces the intensity of loud sound effects.
• Dimensions - H x W x D: 3.4 x 45 x 4.5 inches,(87 x 1141.7 x 115.7 mm)
• Finish: Black with matte finish,White with matte finish
• Status LED: Indicates the speaker and microphone status and adjusts based on the ambient light of the room to be visible but not distracting.
• Capacitive Touch Controls: Tap to play, pause, adjust the volume, and mute the microphones. Swipe right to skip ahead or left to revisit a track.
• Weight: 13.78 lb (6.25 kg)

Sub

• Two Class-D digital amplifiers perfectly tuned to the acoustic architecture.
• Two force-cancelling drivers face inwards for powerful bass without any cabinet buzz or rattle.
• Dual acoustic ports precisely tuned to enhance performance.
• Frequency response as low as 25 Hz.
• Audio settings automatically equalise to balance Sub and the paired Sonos speaker(s) or component.
• Trueplay™ software dynamically tunes to the unique acoustics of the room. iOS device required.
• Adjustable EQ settings in the app.
• Dimensions - H x W x D: 15.3 x 15.8 x 6.2 in. (389 x 402 x 158 mm).
• Finish: Black with gloss finish, White with gloss finish
• Status LED: Indicates the power and connection status.
• Join Button: Hold to set up and pair with your system.
• Operating Temperature: 32°F to 104°F , (0°C to 40°C)
• Storage Temperature: -4°F to 158°F, (-20°C to 70°C)
• Weight: 36.3 lbs. (16 kg).

Power & Networking

• Power supply: Auto-switching 100-240 V, 50-60 Hz AC universal input.
• Ethernet Port: 1 10/100 Mbps ethernet port. Wire directly to your router if WiFi is unreliable.
• WiFi: Connects to your home WiFi network with any 802.11b/g, 2.4 GHz broadcast-capable router.
• Sonos S2: Download the latest generation of the app to set up and control.
• Apple AirPlay 2: Works with AirPlay 2 on Apple devices iOS 11.4 and higher.
• Infrared (IR) receiver: Syncs with your TV remote for streamlined control
• CPU: Quad Core, 1.4 GHz A-53
• Memory: 1GB SDRAM, 4GB NV
• CPU: Single Core, 1 GHz

Contents

• Arc, Power Cable, HDMI Cable, Optical Audio Adapter, QuickStart Guide, Legal & Warranty Information
• Sub, Power Cable, QuickStart Guide, Legal & Warranty Information

• Manufacturer : Sonos
