SKU: 40660
free shipping

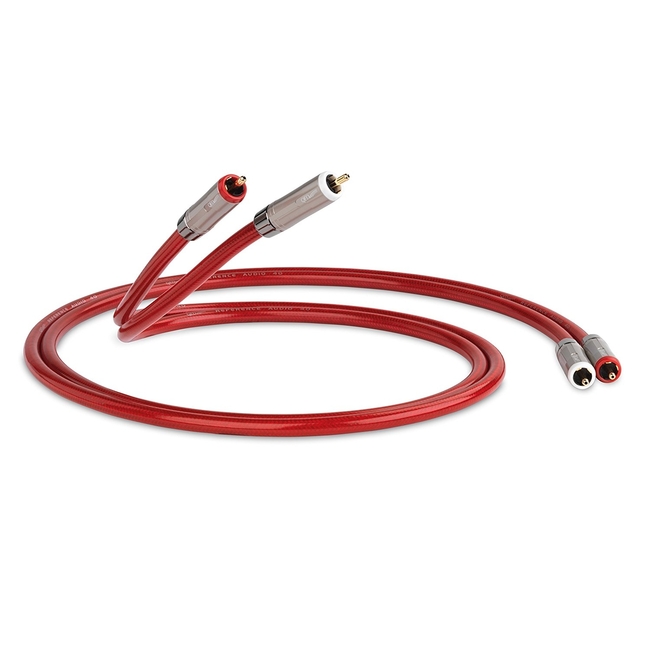

QED QE2450 Reference Audio 40 - 0.6m
QED QE2450 Reference Audio 40 - 0.6m
QED QE2450 Reference Audio 40 - 0.6m

QED QE2450 Reference Audio 40 - 0.6m

Το επαναστατικό καλώδιο διασύνδεσης αναλογικού ήχου Reference Audio 40 γιορτάζει τα 40 χρόνια της QED στην πρωτοπορία των βρετανικών καλωδίων ήχου

Η σειρά καλωδίων Audio 40 είναι μια εντελώς νέα σχεδίαση από τα εργαστήρια QED. Έχει σχεδιαστεί κυρίως για χαμηλή χωρητικότητα, καθώς αυτό έχει αναγνωριστεί από το QED ως ένας σημαντικός παράγοντας που οδηγεί σε μια εμπειρία υψηλής πιστότητας, δημιουργώντας έναν σφιχτό ήχο και διατηρώντας το ρυθμό του αρχικού κομματιού. Προσθέσαμε τη τεχνολογία αγωγών TechnologyTM για λεπτομέρειες υψηλής συχνότητας και το Analoc TechnologyTM για να μεγιστοποιήσουμε την ακεραιότητα του σήματος και το αποτέλεσμα είναι αυτό που θεωρούμε ότι είναι η πιο καινοτόμος διασύνδεση που έγινε ποτέ από το QED.



Κατόπιν παραγγελίας - Σύμφωνα με την αποθήκη του προμηθευτή
€125,00 Final Price
Add to cart
Do you have any questions or want to place a phone order? Call us at 2109401167
Buy Now Pay Later with the use of a debit card

We support installment purchases using a debit card. For details call us Phone

Free shipping all over Greece!

badge

After Sales Support

Supplier guarantee up toYears

star

Next to you since 1976

Over 46 years of experience!

group

Join us

Earn special offers

Alternative Suggestions
QED QE6113 PERFORMANCE Audio 40i - 1m
SKU: 49992
In Stock
€75,00
€73,90
Chord C-Line RCA - 1m
SKU: 0015780
In Stock
€89,00
Ludic Magica Interlink RCA-RCA - 1m
SKU: 58750
In Stock
€65,00
Inakustik 0030415 Star 2RCA-2RCA - 5m
SKU: 009225
In Stock
€58,80
Τελευταία Τεμάχια
Wireworld Solstice 7 RCA - 2m
SKU: 0015222
In Stock
€119,00
€98,00
Wireworld Solstice 8 RCA - 1m
SKU: 41851
In Stock
€120,00
Audioquest Tower RCA - 8m (7065851069)
SKU: 0016803
In Stock
€119,95
Audioquest  Chicago  RCA - 0.5m
SKU: 0016937
In Stock
€129,00
QED QE6117 PERFORMANCE Audio 40i - 3m
SKU: 49993
In Stock
€129,00
€127,00
Ludic Hera Interlink RCA-RCA set - 1m
SKU: 58746
In Stock
€37,98
Wireworld Luna 8 RCA - 2m
SKU: 39098
In Stock
€96,00
Inakustik 0040403 Premium 2RCA-2RCA - 3m
SKU: 0012816
In Stock
€74,00
€69,00
Atlas Cables Element Integra+ RCA - 1.5m
SKU: 59938
In Stock
€95,00
€87,00
Real Cable 2RCA-1  - 3m
SKU: 0011342
In Stock
€18,00
Oyaide d+ RCA Class A - 2m
SKU: 009458
In Stock
€73,00
€71,99
Oyaide d+ RCA Class B DUO - 1m
SKU: 009461
In Stock
€54,00
Atlas Cables Element Integra+ RCA - 3m
SKU: 0014114
In Stock
€116,00
€108,00
Atlas Cables Element Integra+ RCA - 2m
SKU: 0014113
In Stock
€102,00
€94,00
Audioquest  Chicago  RCA - 1m
SKU: 0016939
In Stock
€139,00
Audioquest Evergreen RCA - 0.6m (706585636)
SKU: 0016453
In Stock
€79,00
Audioquest Evergreen RCA - 1m (706585397)
SKU: 0016454
In Stock
€89,00
Audioquest Evergreen RCA - 1.5m (706585828)
SKU: 0016455
In Stock
€99,00
QED QE6111 PERFORMANCE Audio 40i - 0.6m
SKU: 49990
In Stock
€65,00
€63,90
Audioquest Tower RCA - 0.6m (706585635)
SKU: 0016506
In Stock
€45,95
Wireworld Oasis 8 RCA - 2m
SKU: 41858
In Stock
€230,00
Wireworld Oasis 8 RCA - 1.5m
SKU: 41859
In Stock
€205,00
Wireworld Oasis 8 RCA - 1m
SKU: 41860
In Stock
€180,00
Wireworld Oasis 8 RCA - 0.5m
SKU: 41861
In Stock
€155,00
Wireworld Equinox 8 RCA - 0.5m
SKU: 41867
In Stock
€230,00
Σε προσφορά
Wireworld Luna 8 RCA - 3m
SKU: 39099
In Stock
€110,00
€98,00
QED QE2455 Reference Audio 40 - 3m
SKU: 40662
In Stock
€189,00
Audioquest Evergreen RCA - 2m  (706585398)
SKU: 0016456
In Stock
€109,00
Audioquest Evergreen RCA - 3m (7065851272)
SKU: 0016804
In Stock
€119,00
Inakustik 00304107 Star 2RCA-2RCA - 0.75m
SKU: 008964
In Stock
€27,80
€26,70
Oehlbach NF Ice Blue 92023 RCA - 3m (Τεμάχιο)
Oehlbach NF Ice Blue 92024 RCA - 1.5m (Τεμάχιο)
Oehlbach 2032 - 1m
SKU: 008262
In Stock
€61,49
Oehlbach BEAT! Audio RCA - 3m   -(D1C2703)-
SKU: 88401
In Stock
€45,99
Audioquest Tower RCA - 2m (706585394)
SKU: 0016452
In Stock
€59,95
Chord C-Line RCA - 0.5m
SKU: 90263
In Stock
€69,00
QED Connect Phono-Phono - 3m  (QE8107)
SKU: 78131
In Stock
€15,95
€13,89
Oyaide d+ RCA Class B - 2m
SKU: 009463
In Stock
€33,60
Chord Clearway Analogue RCA - 2m
SKU: 0015786
In Stock
€299,00
Inakustik 00404015 Premium 2RCA-2RCA - 1.5m
SKU: 008654
In Stock
€59,20
€54,00
Real Cable 2RCA-1  - 0.5m
SKU: 0011339
In Stock
€11,80
Oyaide d+ RCA Class A - 1m
SKU: 009459
In Stock
€54,00
Real Cable 2RCA-1  - 2m
SKU: 0011341
In Stock
€14,80
Inakustik 00304115 Star 2RCA-2RCA - 1.5m
SKU: 007836
In Stock
€36,30
€28,00
Dynavox Perfect Sound Stereo - 1.5m (207377)
SKU: 0015997
In Stock
€25,00
Inakustik 0030413 Star 2RCA-2RCA - 3m
SKU: 007837
In Stock
€42,00
GoGEN 2CINCH200MM01 2RCA-2RCA - 2m
SKU: 0013167
In Stock
€9,80
Wireworld Terra RCA - 3m
SKU: 0015209
In Stock
€44,00
Oyaide d+ RCA Class B - 1m
SKU: 009464
In Stock
€28,00
€27,90
Audioquest Tower RCA - 1.5m (706585512)
SKU: 0016451
In Stock
€54,95
QED QE2453 Reference Audio 40 - 1m
SKU: 40661
In Stock
€149,00
QED QE6115 PERFORMANCE Audio 40i - 2m
SKU: 49991
In Stock
€99,00
€97,90
Wireworld STREAM RCA - 1m
SKU: 48568
In Stock
€45,00
Wireworld STREAM RCA - 2m
SKU: 48569
In Stock
€52,00
Wireworld STREAM RCA - 3m
SKU: 48570
In Stock
€60,00
Dynavox  Perfect Sound Stereo  - 1m  (207376)
SKU: 0016107
In Stock
€19,00
Wireworld Luna 8 RCA - 1m
SKU: 39095
In Stock
€85,00
Wireworld Luna 8 RCA - 1.5m
SKU: 39097
In Stock
€89,90
Dynavox Perfect Sound Stereo - 0.75m  (207375)
SKU: 0016106
In Stock
€15,00
Dynavox Perfect Sound Stereo - 0.50m  (207619)
SKU: 44764
In Stock
€13,00

OVERALL PERFORMANCE

Analoc

Analoc™ Technology

QED ‘Analoc™ RCA plug which features high purity copper signal and ground connections in an insulated low eddy current brass body. The hollow central pin eliminates skin effect in the signal connection and the locking barrel design clamps the dual tombstone ground connection firmly to the RCA sockets

CCT

Complementary Conductor Technology

Complementary conductor geometry utilises two conductors of different diameters to carry the same audio signal. This has the effect of providing an alternative path for high frequency audio components which might otherwise become time smeared in a single audio pathway.

Ferrite

Ferrite Insulation Technology

Like putting wooden wheels on a Ferrari, conventional RCA phono plugs have the potential to undo all of the hard work carried out by our carefully designed cordage. With Anamate and Analoc RCA plugs, the fidelity of the audio signal is maintained form start to finish.

FEATURES AND BENEFITS

Complementary Conductor TechnologyTM

This innovation utilises two conductors of different diameters to carry the same audio signal. This has the effect of providing an alternative path for high frequency audio components which might otherwise become time smeared in a single audio pathway.

FOAMED POLYETHYLENE DIELECTRIC

Foamed Polyethylene has a low dielectric constant and has been used to cut down on the amount of audio signal energy lost due to cable capacitance.

ANALOCTM Locking RCA Plugs

The new QED Analoc™ plug is a low eddy current design featuring small high purity copper

conductors in place of the usual large volume brass body found in ordinary high quality plugs. This cuts down or eliminates the tendency for the changing magnetic field in the conductor to induce eddy currents which can affect the micro-timing of the audio signal.

SPECIFICATIONS

Silver Plated 99.999% Oxygen Free Copper (SPOFC) conductors with LDPE dielectric
Asymmetrical twisted pair geometry

OFC shield giving 100% electromagnetic screening

Zn/Mn ferrite Jacket

Gold plated QED 'Analoc™' RCA plugs


Parallel Capacitance: 76 pF/m

Inductance: 0.37 μH/m

Loop resistance: 0.072 Ω/m

Dissipation Factor: 0.0059

QED Lifetime Guarantee

Like most interconnects here, the Reference Audio 40 is a silver-plated copper affair, arranged in a special complementary way - the two conductors have different diameters, and this is said to give an alternative path for high-frequency audio signals to avoid time smear. The foamed polyethylene dielectric is claimed to reduce the amount of signal lost to cable capacitance. QED's Analoc plugs are fitted, said to be a low eddy current design with copper instead of brass used. They feature an outer locking cylinder that needs to be screwed forward before the plug's 'blades' can be locked onto the RCA phono socket, then the locking cylinder needs to tightened backup for a (very) secure fit. The Signature Revelation speaker cable uses 10 silver-plated oxygen- free copper central conductors, which are claimed to provide very low resistance alongside high levels of detail. These cores are separately insulated and arranged around a hollow core of polyethylene; QED calls this its Aircore technology and it's claimed to reduce inductance.

Sound Quality

Before the QED loom, the panellists have taken a mixed view of the various wires played to them. They've found positives and negatives, liked some and been lukewarm about others. But two out of the three listeners express a strong preference for this set of cables, applauding it for its clean, open, even sound that doesn't try to do anything too clever. Instead it is very accomplished at almost every facet of the music, and makes things look rather easy.

"Everything is joined up," says one panellist, and so it proves. The Lorde track plays better than it has through most others here. Although not necessarily the warmest or most expansive, it just seems to gel the bass with the rest of the music - which is something several others fail to do.It doesn't sound too steely in the midband, giving a nice smooth sound to female vocals, and treble is crisp and finessed. Musically the loom works very well, the beat bouncing along in an enjoyable way. The result is a surprisingly easy listen, when previously the track hasn't quite made sense.The REM tune is described as sounding, "head and shoulders better" by one panellist. There is a fine sense of depth to what can sound a pretty close and claustrophobic mix. One can hear lots of detail too, with the keyboard backing track coming through from the second verse, where previously it had been submerged. Tonally the QED isn't the warmest or most sumptuous here, but it is very even and transparent and doesn't seem to be trying to add or subtract anything much. This means that it's likely to work well with a wide range of systems. Moving to the Duke Ellington piece and the pattern continues. One adoring panellist describes it as, "good bass rhythm and control, nice, cohesive, great sound, head and shoulders better".Another of the panellists isn't quite so enamoured; they appear to yearn for the expansive yet sumptuous midband of the Ecosse, and find the QED a little too anodyne and bland when playing Julian Lloyd Webber's cello work. All of which just goes to show how much taste plays a part, but still this remains a superb result considering its low price

Download the article here

Reference and Signature Audio40 analogue cables use 'Analoc™' plugs with a built-in locking feature so that as the barrel is screwed up tight, the clamping force is increased making for a super noise free and secure connection.




To correctly fit 'Analoc™' plugs, the outer locking cylinder of the plug must be screwed forward, to loosen the gripping 'blades', whilst the plug is pushed into place on the socket. The locking cylinder should then be screwed back in order to lock the plug onto the socket. Needless to say, users must always remember to do this when connecting/disconnecting the cables.




CABLES MATTER

There are three cables in the Audio 40 range representing the long established Performance, Reference and Signature designations which have always corresponded to the "good, better, best" principle of QED product hierarchy.* However the whole range has been developed using a strict top down approach which means that all three cables share an almost identical construction and geometry with the Signature cable representing the ideal 'cost no object' original state of the design with the Performance cable its cost engineered alternative. The Reference cable represents the perfect balance of performance against the law of diminishing returns omitting only the most expensive components.

*Performance Audio 40 to be launched 2015.

The cordage is designed primarily for low capacitance as this has been identified by QED as the primary factor which leads to a hi-fidelity experience and makes for a tight sound which retains the rhythm of the original piece. Further unique steps have also been taken to eliminate minute timing errors in the cable. Our new complementary conductor geometry is used throughout the range and utilises two conductors of different diameters to carry the same audio signal. This has the effect of providing an alternative path for high frequency audio components which might otherwise become time smeared in a single audio pathway. Another innovation added to the entire range is the specially impregnated PVC jacket containing 10% Zn/Mn ferrite material. This absorbs very high frequency noise signals and audio signal components which are thought to have an adverse affect on the micro-timing of the audio signal. Low dielectric constant materials such as foamed polyethylene or teflon have been used throughout the range to cut down on the amount of audio signal energy lost due to cable capacitance and all of these measures have been applied under the consultation of leading industry experts. We have been able to measure the affects of these improvements using our high frequency cable test suite.

Additionally the new locking plug does nothing to spoil the low jitter, low noise signal provided by the cordage. The new QED Analoc™ plug is a low eddy current design featuring small high purity copper conductors in place of the usual large volume brass body found in ordinary high quality plugs. This cuts down or eliminates the tendency for the changing magnetic field in the conductor to induce eddy currents which can affect the micro-timing of the audio signal. Coupled with its hollow central pin, which is designed to combat the skin effect in the same way as our X-Tube speaker cables, the new QED Analoc ™ plug maintains the fidelity of the audio signal from start to finish.

Traditionally high quality RCA phono plugs (designed in the 1940s and still used today for domestic unbalanced audio connections) have been machined from solid brass. Brass is a reasonably inexpensive material and can be easily worked so it lends itself to use in bespoke designs which attempt to improve

upon more basic implementations of the original RCA plug. Unfortunately there are a few problems with the use of bulk brass, the most prominent being its low conductivity compared to pure copper. Pure copper plugs would be prohibitively expensive and so are not used but if the high purity copper conductors were confined to just the pin section and the small contact areas required for the return ring then this would be economically viable.

QED's new Analoc™ plugs take advantage of this idea and provide a high purity copper connection without the use of bulky brass plug bodies. The pin section is made from a hollow tube of high purity copper and the ground return is reduced to just two of the normal six leaves. This has the dual effect of providing a low resistance path for the tiny signal currents flowing in line level unbalanced connections and cuts out the possibility of eddy currents forming in the large volume of the plug body which would otherwise form part of the return path for the signal. Eddy currents are swirling circular currents which build up in any conductor where there is a variable magnetic field acting on it such as when an ac signal is applied. Eddy currents flowing in a conductor of a given resistivity necessarily dissipate energy and this energy loss is proportional to the square of the diameter of the conductor - so the smaller this can be kept, the less the effect of eddy currents on the delicate audio signal. Add to this that due to self inductance eddy currents can persist for a short time after the field is removed and always create a field that opposes that which creates them it can be seen that eliminating this phenomenon can lead to improved transmission of the audio signal - especially in the area of minute timing effects.

Eddy currents give rise to the skin effect wherein the current increasingly flows towards the outside of the conductor as frequency increases. By removing the central portion of the copper pin section we have reduced eddy currents here also and thus combated the skin effect and reduced self inductance in a similar way to that employed in our X-Tube™ speaker cables. Because the contact area of the outer ground ring has been reduced it is necessary to provide a very firm connection indeed and so all Analoc™ plugs have a locking feature built in so that as the barrel is screwed up tight, the clamping force is increased making for a super noise-free and secure connection for life.

The high purity copper conductors featured in the Analoc range come with gold plating at Reference level and rhodium plating for the Signature plugs. This plating is there to maintain low contact resistance throughout the life of the product due to the stability and low reactivity of these metals. Although copper is the second best electrical conductor (behind silver) it does react with oxygen and can tarnish over time increasing the contact resistance and therefore increasing distortion of the original signal. Rhodium has the advantage for use as a plating material due to its superior hardness. QED Analoc comes as standard on the Audio 40 interconnect range and can be purchased separately to be included in custom cable projects.

HIGH FREQUENCY DATA STREAMS



The two diagrams above show the difference measured in a high frequency data stream applied to an ordinary cable without the improvements (left) and with the improvements in the QED cable (right)


The ability to accurately transmit high frequency impulses means that within the audio band timing and dynamics should be improved.
