SKU: 005165

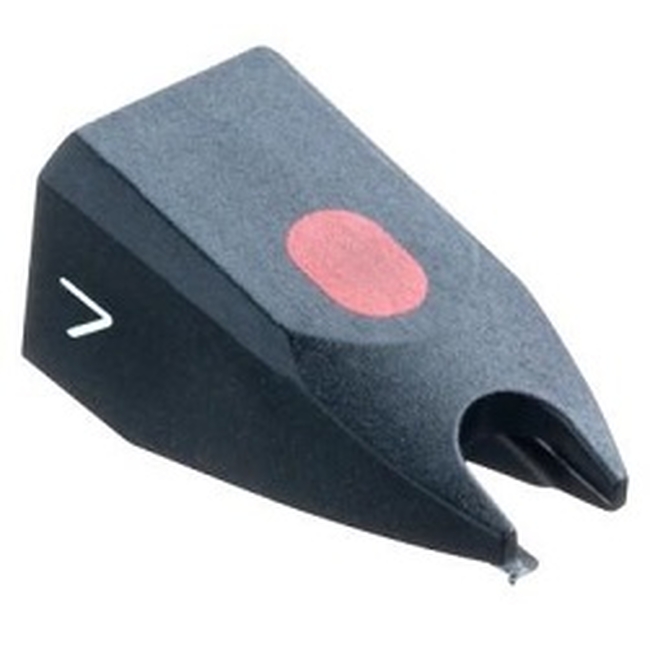

Ortofon stylus 7 for TM 7U
Frequency range 20-20.000 HzFrequency response 20-18.000 Hz + 2dB
Κατόπιν παραγγελίας - Σύμφωνα με την αποθήκη του προμηθευτή
€59,00
Final Price
Add to cart
Do you have any questions or want to place a phone order?
Call us at 2109401167
Buy Now Pay Later with the use of a debit card
We support installment purchases using a debit card. For details call us Phone
Type him postcode της περιοχής σας - ώστε να σας ενημερώσουμε για τους τρόπους αποστολής / παραλαβής.
Δυνατότητα παραλαβής με BOX NOW
After Sales Support
Supplier guarantee up toYears
Next to you since 1976
Over 46 years of experience!
Join us
Earn special offers
|
Καμία επιστροφή των κεφαλών και βελονών ΔΕΝ γίνεται δεκτή Technical data |
|
| Frequency range | 20-20.000 Hz |
| Frequency response | 20-18.000 Hz + 2dB |
| Tracking ability at 315Hz at recommended tracking force *) | 60 µm |
| Compliance, dynamic, lateral | 25 µm/mN |
| Stylus type | Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Equivalent stylus tip mass | 0,5 mg |
| Tracking force range | 1,0-1,5 g (10-15 mN) |
| Tracking force, recommended | 1,25 g (12,5 mN) |
| Tracking angle | 20° |
| Stylus colour | Black |
| Recommended for following cartridges | TM 7U |
