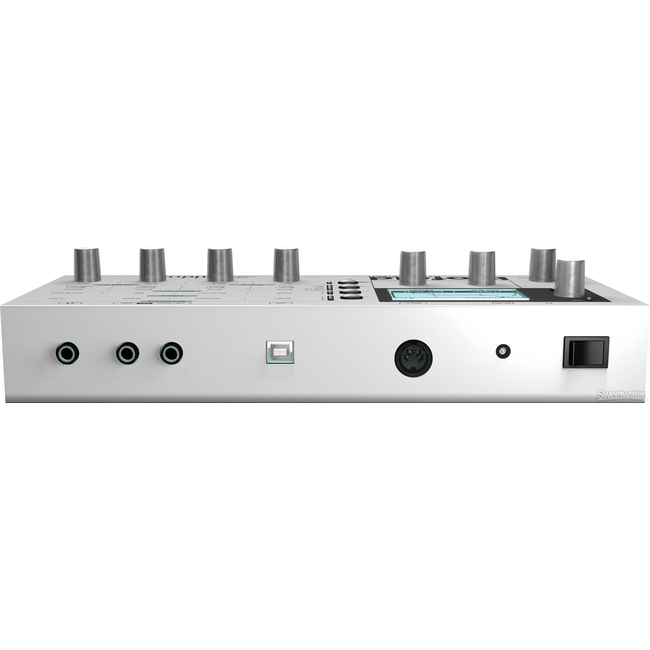

Headphone Output
MIDI In
USB Connector for MIDI In / Out
Uses standard USB MIDI Driver provided by host computer OS
Windows ME minimum, Windows XP or newer recommended
Mac OS X 10.2 minimum, Mac OS X 10.3 or newer recommended
External Power Supply
Voice
3 Oscillators
Virtual Analog Models:
Pulse with Pulse Width Modulation and adjustable Brilliance
Sawtooth with adjustable Brilliance
Triangle
Sine
Wavetables:
Q Alt 1 and Alt 2 Wavetable with adjustable Brilliance
All Wavetables from Microwave II/XT/XTk Series with adjustable Brilliance
Separate Wavetable selectable for Oscillator 1 and 2
Frequency Modulation between the Oscillators
Oscillator Synchronization
Ring Modulator for Osc 1 / 2
Noise Generator with Noise Colour
2 independent Multi Mode Filters
Filter FM
Resonance up to Self-Oscillation
Low Pass 24 dB / 12 dB
Band Pass 24 dB / 12 dB
High Pass 24 dB / 12 dB
Notch 24 dB / 12 dB
Comb Filter with positive / negative Feedback
PPG Low Pass Filter
2 Drive stages per voice with adjustable Drive Gain and selectable Curves
Clip Hard-Medium-Soft
Sine Shaper
Modulation Matrix with 16 Slots, freely programmable
Modulation Speed far into Audio Range
Modulation Sources include all internal Modulation Sources plus various MIDI messages
Modulation Destinations for almost all continuous sound parameters
Various pre-routed Modulation Destinations with selectable Sources
Pitch Modulation
Oscillator 1 / 2 / 3 Frequency Modulation
Oscillator 1 / 2 / 3 Pulse Width Modulation
Filter 1 / 2 Cutoff Modulation
Filter 1 / 2 Frequency Modulation
Pan 1 / 2 Modulation
Amp Modulation
4 Modifiers for transforming Modulation Sources with various Algorithms
3 fast LFOs syncable to MIDI Clock
Note Retrigger with adjustable Start Phase
Monophonic LFO
Keytrack
4 fast Envelopes with selectable types
Single Trigger / Retrigger per Envelope
ADSR ADS1 DS2R (2 Decay/Sustain stages plus adjustable Attack Level)
One Shot Loop S1S2 (Loop between Sustain 1 and 2)
Loop All (Loop over all stages)
Poly, Mono, Dual or Unisono Mode with selectable Voice Count
Powerful Arpeggiator
Hold and One Shot modes
Syncable to MIDI Clock
Direction Up, Down, Alternate
Range up to 10 Octaves
Various methods to modify Note Sort Order
Freely programmable Arpeggiator Pattern with up to 16 Steps per Sound.
Programmable per Step: Accent/Timing/Length
Glide on/off
Pause
Chord
Previous note
Random not from Note List
First and/or last note from Note List
1 Effect slot per part 1 Effect slot globally for all parts
Effect types:Chorus,Flanger,Phaser,Overdrive,Triple FX (S&H, Ring Modulation, Chorus)
Delay (only available on global Effect slot)
Clocked Delay (only available on global Effect slot)
Reverb (only available on global Effect slot)
