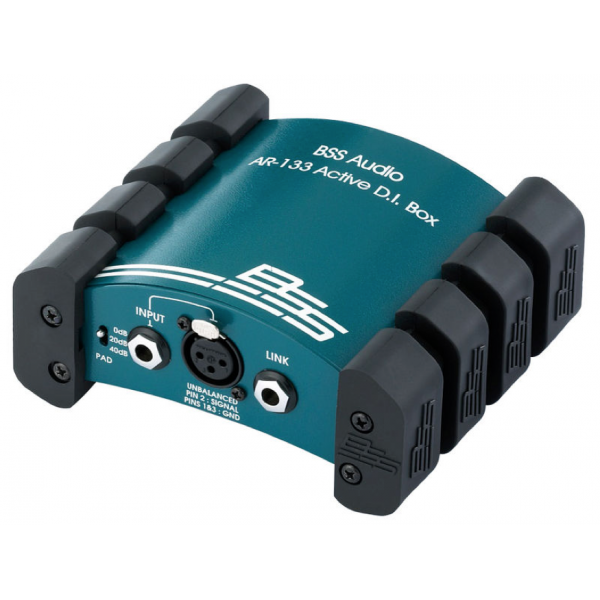

BSS AR-133
Ενεργό di-box με phantom και μπαταρία.Η μονάδα περιλαμβάνει phantom power και μπαταρία στο βασικό εξοπλισμό. Σε περίπτωση που το phantom power από την κονσόλα αποτύχει ή είναι απενεργοποιημένο, το AR-133 μεταβαίνει αυτόματα στην εσωτερική μπαταρία 9V και παρέχει αδιάλειπτη χρήση.The unit is housed in a rugged aluminium extrusion case, with robust polyurethane end-cheeks which give the AR-133 a very distinctive look.Input connectors are both 1/4" jack sockets and an XLR socket, the latter meaning that the AR-133 can be used to convert unbalanced signals to a balanced output on XLRs throughout.The arched case allows cables to run back underneath the unit from the end for neat cable management.Input attenuation is 0, -20 or -40dB, making the box suitable for instrument, line or amplifier levels on inputs. On the output side, a ground-lift switch is provided for quick solutions to ground-loop problems.
We support installment purchases using a debit card. For details call us Phone
After Sales Support
Supplier guarantee up toYears
Next to you since 1976
Over 46 years of experience!
Join us
Earn special offers
The AR-133 uses an enhanced version of the same audio path as the AR-116, now regarded by many people as a reference standard. The sound quality is legendary, particularly on acoustic and bass guitars.
Numerous applications can be satisfied by the AR-133. For example, as well as the traditional guitar use, the AR-133 can be used with keyboards, DJ consoles, amplifier outputs, and other electronic sources.
An additional bonus is the ability to use the AR-133 as an active balancing device.
*Στη περίπτωση μη άμεσης διαθεσιμότητας : Η διαθεσιμότητα του προϊόντος εξαρτάται από την επάρκεια του προϊόντος από τον αντιπρόσωπο τη στιγμή της παραγγελίας σας.
*Στη τιμή εμπεριέχεται ο Φ.Π.Α 24% και το τέλος ανακύκλωσης.
Specifications
| Input Impedance | 1 mOhm (pad at 0dB), 47 kOhm (pad at -20dB or -40dB) |
| Max Input | +9dBu (pad at 0dB), +29dBu (pad at -20dB), +49dBu (pad at -40dB) |

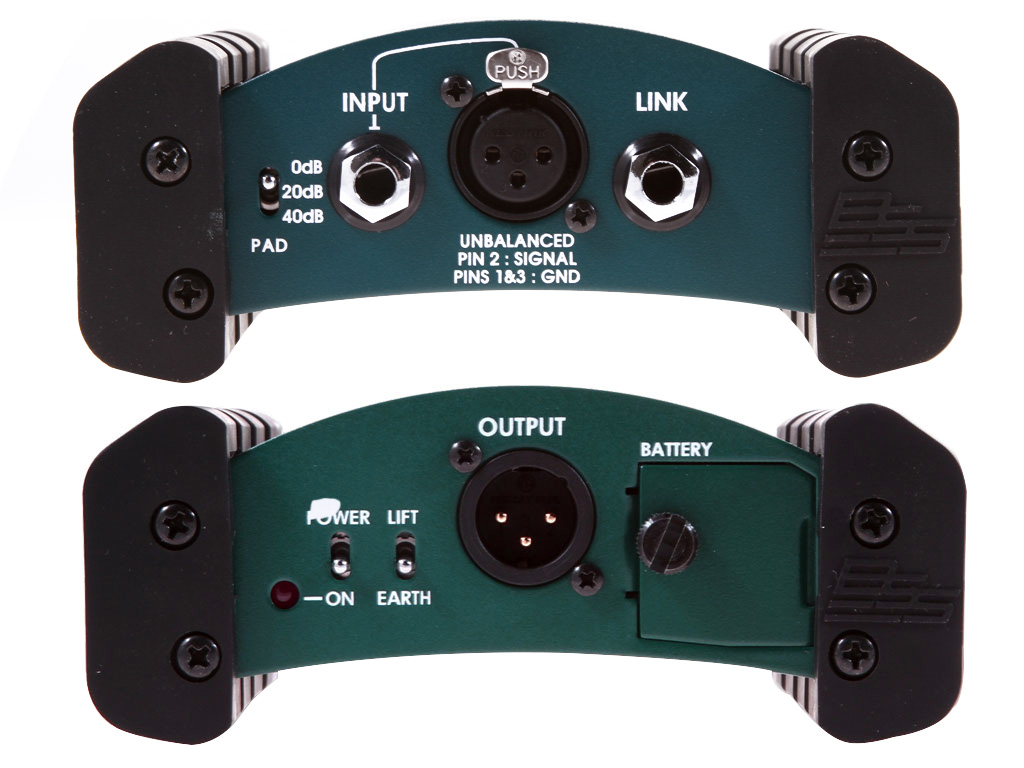

| Input Connectors | Two Parallel 1/4" jack connectors (Tip Hot +ve, Sleeve ground), and a parallel XLR connector (unbalanced) (Pin 2 Hot +ve, Pin 1 & 3 ground) |
| Output | Transformer Balanced |
| Max Output | +8dBu into 600 Ohms or greater |
| Output Connectors | XLR3-32 or equivalent |
| THD | < 0.005% at 1khz, 0dbu output |
| Noise | < -105db unweighted, 22hz-22khz, rms* |
| Frequency Response | 30Hz to 20kHz, +0dB/-1dB |
| Main/Standby battery | 9 volt PP3 type, preferably alkaline |
| Power Consumption | on phantom: less than 7.5mA, on battery: less than 2mA. |
| Phantom Power | +20 volts DC to +48 volts DC |
| Unit Weight | 650 gms, excluding batteries |
| Dimensions | 59 mm x 124 mm x 143 mm |
