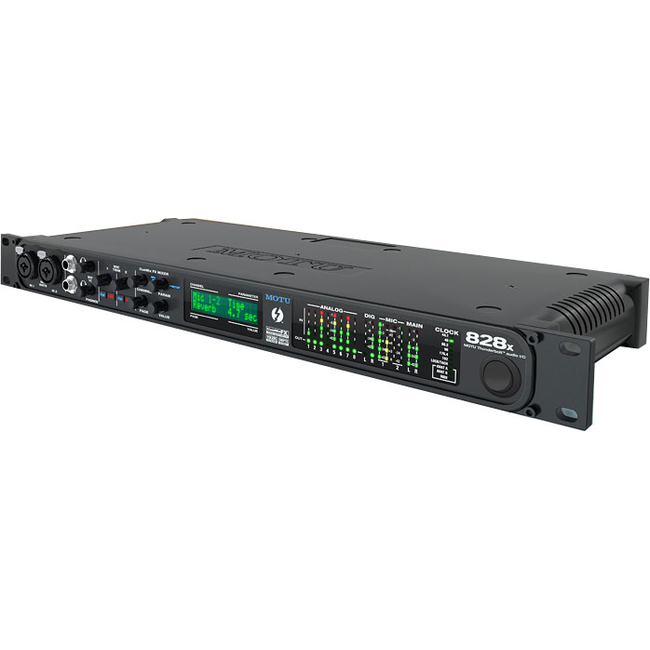

Motu 828x (USB 2/Thunderbolt)
Η νέα κάρτα απο την Motu είναι βασισμένη στην δοκιμασμένη 828 mk III και περιλαμβάνει πλέον εκτός απο USB2 και Thunderbolt συνδέσειςΜε ανάλυση 24bit / 192kHz η κάρτα λειτουργεί αυτόνομα και σαν ψηφιακός μίκτης 28/16 με εφφέ DSP. Διαθέτει δύο εισόδους mic/guitar με ενσωματωμένο limiter και δυνατότητα 48V phantom, 8 εισόδους / εξόδους balanced, στερεοφωνική κύρια έξοδος 2 x XLR, δύο sends, 2 x ADAT I/O, SPDIF I/O, MIDI I/O, WordClock I/O, δύο εξόδους ακουστικών.Συμβατή με PC/MAC.
We support installment purchases using a debit card. For details call us Phone
After Sales Support
Supplier guarantee up toYears
Next to you since 1976
Over 46 years of experience!
Join us
Earn special offers
Technicial Specifications
| Converters | 24-bit |
| Sample rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
| Analog inputs | 2 x XLR/TRS combo-style mic/guitar inputs 8 x 1/4" TRS line inputs (balanced/unbalanced) |
| Analog outputs | 2 x XLR balanced main out 8 x 1/4" balanced TRS line out 2 x 1/4" TRS stereo headphone |
| Digital I/O | 16 channels of ADAT optical at 1x sample rates 8 channels of SMUX optical at 2x sample rates 2-channel TOSlink (optical S/PDIF) up to 96 kHz 2-channel RCA S/PDIF up to 96 kHz |
| Total I/O | 28 inputs and 30 outputs at 1x sample rates 20 inputs and 22 outputs at 2x sample rates 10 inputs and 10 outputs at 4x sample rates |
| Computer I/O | 1 x Thunderbolt (compatible with 1 and 2) 1 x USB 2.0 (compatible with 3.0) |
| Sync I/O | 1 x SMPTE time code in (LTC) 1 x SMPTE time code out (LTC) 1 x word clock in 1 x word clock out |
| Headphone output | 1 x 1/4" TRS stereo phone (assignable) 1 x 1/4" TRS stereo phone (mirrors main outs) |
| Phantom power | 2 x individual +48V |
| Front panel | 2 x XLR/TRS combo mic/guitar in 2 x 1/4" TRS phone 2 x digital rotary encoders • phone/main volume 2 x digital rotary encoders • mic trim 4 x switches • Pad and 48V Phantom 4 x digital rotary encoders for LCD control 2 x 16 character LCD 8 x 4-segment ladder LEDs • 1/4-inch analog in 8 x activity LED • 1/4-inch analog out 2 x 4-segment ladder LEDs • RCA S/PDIF in 2 x activity LED • RCA S/PDIF out 2 x 10-segment LEDs • mic in with V-Limit 2 x 5-segment ladder LEDs • main outs 6 x LED • sample rate indicator 1 x LED • LOCK/TACH indicator 2 x activity LEDs • optical bank A/B 1 x activity LED • MIDI in/out 1 x AC power switch |
