Ludic Heimdall Netfilter G30 Silver -φίλτρο,8 πρίζες,καταστολέας υπερτάσεων. Ludic Heimdall Netfilter G30 Silver -φίλτρο,8 πρίζες,καταστολέας υπερτάσεων. Ludic Heimdall Netfilter G30 Silver -φίλτρο,8 πρίζες,καταστολέας υπερτάσεων. Ludic Heimdall Netfilter G30 Silver -φίλτρο,8 πρίζες,καταστολέας υπερτάσεων.
free shipping

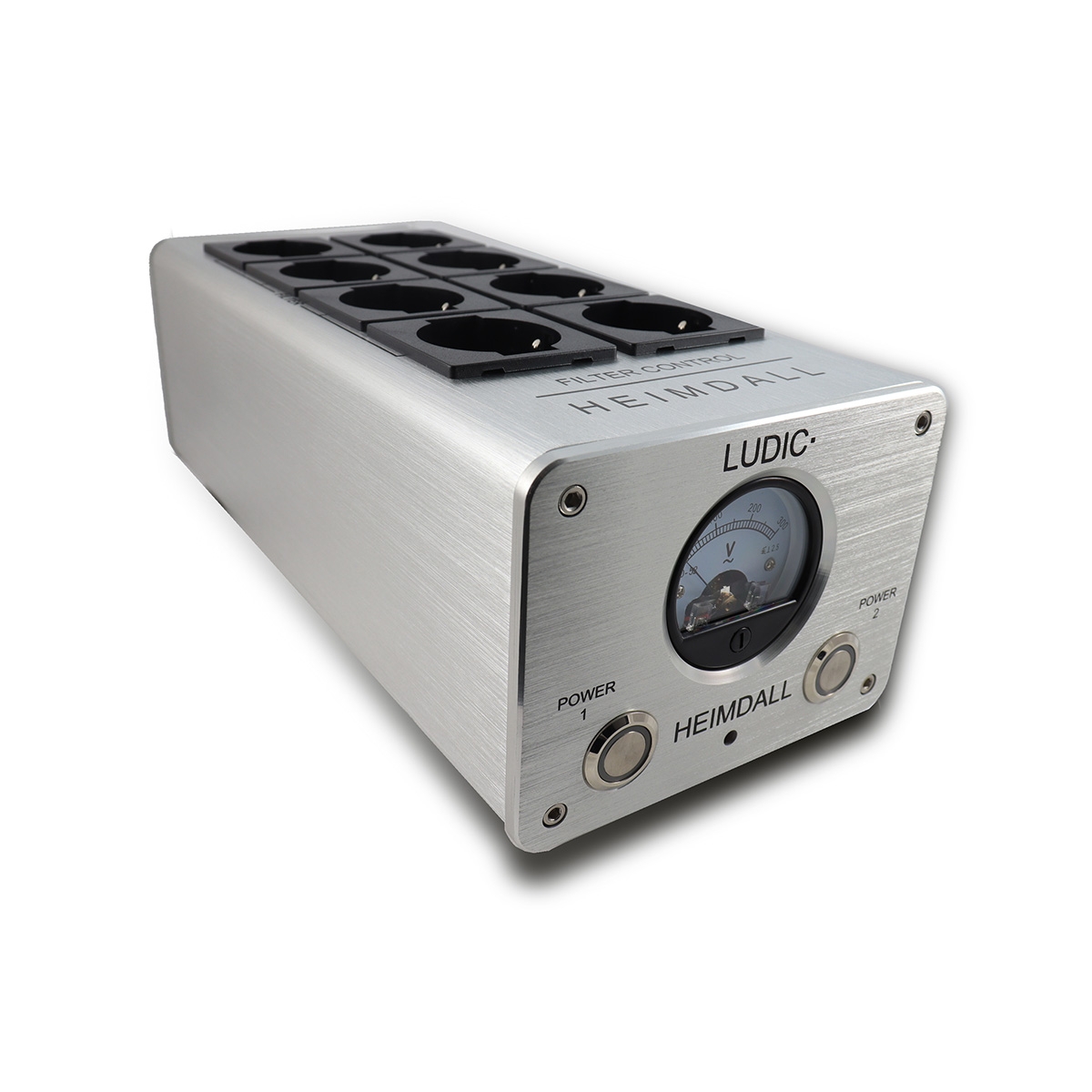

Ludic Heimdall Netfilter G30 Silver -φίλτρο,8 πρίζες,καταστολέας υπερτάσεων.
Ludic Heimdall Netfilter G30 Silver -φίλτρο,8 πρίζες,καταστολέας υπερτάσεων.
Ludic Heimdall Netfilter G30 Silver -φίλτρο,8 πρίζες,καταστολέας υπερτάσεων.
Ludic Heimdall Netfilter G30 Silver -φίλτρο,8 πρίζες,καταστολέας υπερτάσεων.

Ludic Heimdall Netfilter G30 Silver -φίλτρο,8 πρίζες,καταστολέας υπερτάσεων.

brand-logo

Το φίλτρο δικτύου ισχύος LUDIC HEIMDALL καταστέλλει αξιόπιστα όλες τις ανεπιθύμητες παρεμβολές από το σύστημα ισχύος. Το LUDIC HEIMDALL εφαρμόζει ένα φίλτρο υψηλής απόδοσης, απόλυτα προσαρμοσμένο στις ανάγκες σας. Απομακρύνει όλες τις παρεμβολές τόσο από το σύστημα ισχύος όσο και από τις ίδιες τις συνδεδεμένες συσκευές χωρίς να περιορίζει την παροχή. Είναι ένας εξαιρετικός σύντροφος για έναν εξαιρετικό αλλά ισχυρό ήχο. Ο τεχνικός σχεδιασμός στεγάζεται σε ένα στιβαρό μεταλλικό περίβλημα με μπροστινό πάνελ από ασημί ή μαύρο βουρτσισμένο αλουμίνιο, υποσασί που μειώνει τους μηχανικούς κραδασμούς των εξαρτημάτων του φίλτρου που προκαλούνται από τη συχνότητα δικτύου 50 Hz. Οκτώ πρίζες υψηλής ποιότητας είναι διαθέσιμες στο επάνω πλαίσιο. Η κεντρική είσοδος υψηλού ρεύματος επιτρέπει την εύκολη αντικατάσταση του καλωδίου τροφοδοσίας – για παράδειγμα, LUDIC POLARIS ή LUDIC AESIR. Ο ενσωματωμένος καταστολέας υπερτάσεων προστατεύει τις πολύτιμες συσκευές.

In Stock - Express παραλαβή και αποστολή από το κατάστημα
€195,00  Catalogue price - You earn €1,00
€194,00 Final Price
Add to cart
Do you have any questions or want to place a phone order? Call us at 2109401167
Buy Now Pay Later with the use of a debit card

We support installment purchases using a debit card. For details call us Phone

Free shipping all over Greece!

badge

After Sales Support

Supplier guarantee up toYears

star

Next to you since 1976

Over 46 years of experience!

group

Join us

Earn special offers

Size of netfilter is 31cmx13cm and height is 11,5cm.

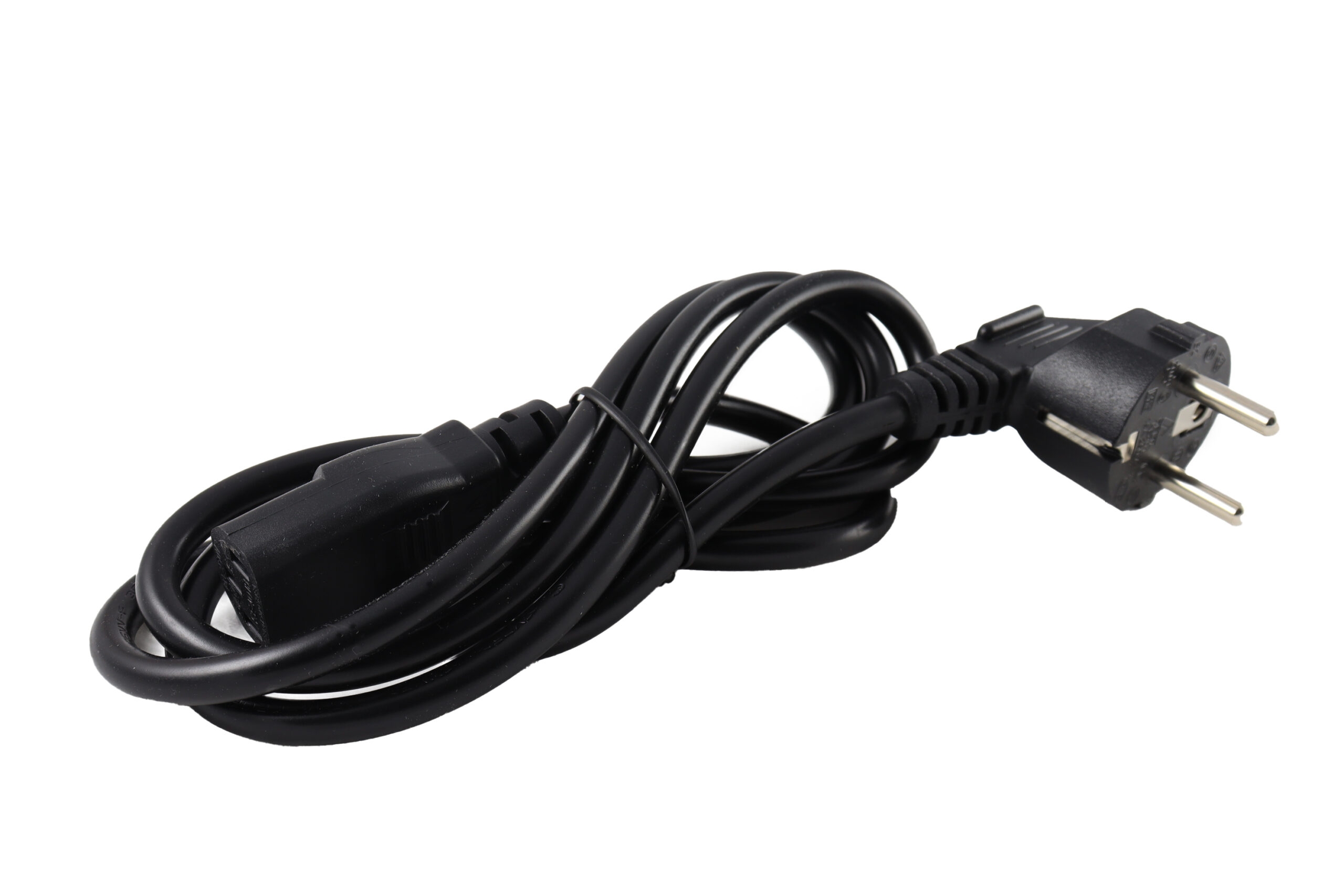

The size of the standard powercord that is included in the box is 150cm.

Introduction

Thank you for purchasing this LUDIC Heimdallpower filter.
The power filter is a perfect addition to your audio or home theatre system.
The electricity we are supplied with at our homes or workplaces is not clean and there
is almost always at least some noise.
Eight high-quality power sockets are available at the top panel. The 8 european standard its plastic engineering, aviation engineering ABS (fire proof, high temperature resistant, 30% glass fiber). Compared with the Universal seat in the market, the characteristics are more qualitative breakthrough. The European standard seat is made of high-purity phosphor Bronze, and the inner copper is also made of high-purity phosphor bronze, which reduces the resistance, improves the current, and improves high-power effect! So that the filtering effect can be described as the ultimate!

This dirty electricity can have a negative effect on performance of your audio-video system and even affect its life.

LUDIC Heimdall

power filter limits noises from your electricity as well as isolates sound and video sources from the soiled electrical network as well as indicates the correct power phase – now your system performance will be much better!!

This instruction manual provides all of the information that you need to know about your LUDIC power filter. Please read it carefully before you start using the unit.
Cleaning, Do not use strong or abrasive cleaners. Use a dry, soft cloth for cleaning.



Safety Instructions
IMPORTANT

READ THIS SECTION CAREFULLY BEFORE PROCEEDING!
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE. DO NOT REMOVE CHASSIS (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
The triangle containing a lightning symbol is intended to alert the user to the presence
of uninsulated dangerous voltages within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS DEVICE TO RAIN OR MOISTURE, AND OBJECTS FILLED WITH
LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS DEVICE.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO
WIDE SLOT, FULLY INSERT.
CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE
THE FUSE ONLY WITH THE SAME AMPERAGE AND VOLTAGE TYPE. REFER
REPLACEMENT TO QUALIFIED SERVICE PERSONNEL.
WARNING: UNIT MAY BECOME HOT.
ALWAYS PROVIDE ADEQUATE
VENTILATION TO ALLOW FOR COOLING.
DO NOT PLACE NEAR A HEAT
SOURCE, OR IN SPACES THAT CAN RESTRICT VENTILATION.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

An exclamation mark in a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instruction

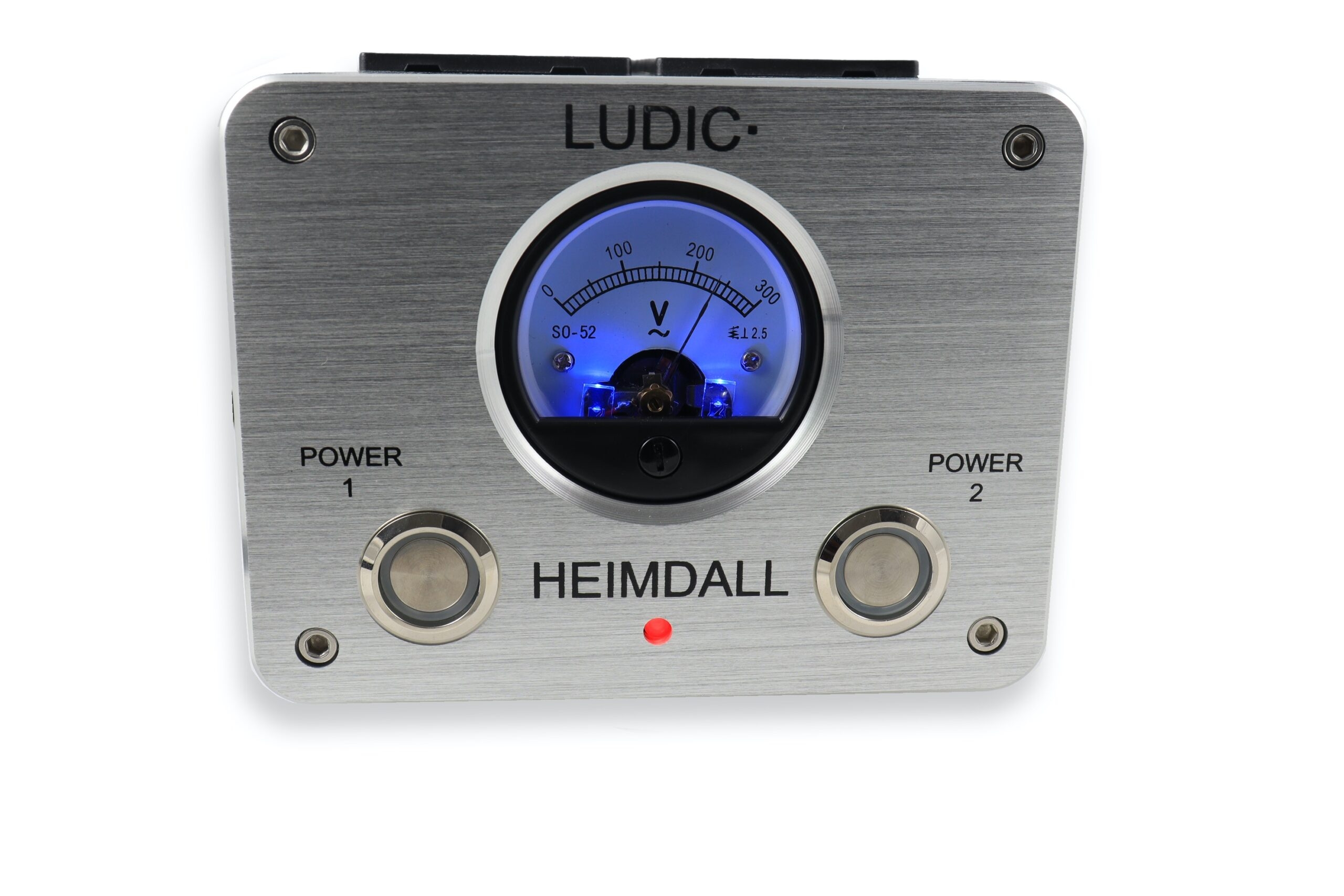

Operation

Note! This unit requires a single-phase 3-conductor electrical outlet.
1. Plug the Power Cable to the filter and into the electrical outlet.
2. Turn on the filter (the Power Switch should be in the upper ON position).
The Power Indicator should light up – if not then check the connection
to the electrical outlet and whether it is powered.

3. Phase Indicator – the indicator will illuminate when the phase is incorrect.

If the Phase is incorrect perform the following steps:

a) Schuko type electrical outlet. Make sure the filter is turned off (the Power Switch is in
the down OFF position and the Power Cable is removed).
Remove the power plug from the outlet, reverse the plug by 180 degrees and put it into

the outlet.

Turn on the filter – the Phase Indicator should switch off – the Phase is correct.

b) Electrical outlet with a ground pin.
Make sure the filter is turned off (the Power Switch is in the down OFF position and the Power Cable is removed). Contact a qualified electrician to reverse wiring connection in your electrical outlet. Turn on the filter – the Phase Indicator should switch off – the Phase is correct.
Note! Due to risk of electric shock refer any changes related to electrical equipment to qualified personnel.
The Power Sockets in your filter may have additional marking related to the female contacts: L – LIVE | N – NEUTRAL.
If not then check the below figure showing the Power Sockets wiring (for the correct Phase) >-10dB (2-100MHz) noisefilter
