Input: 16A

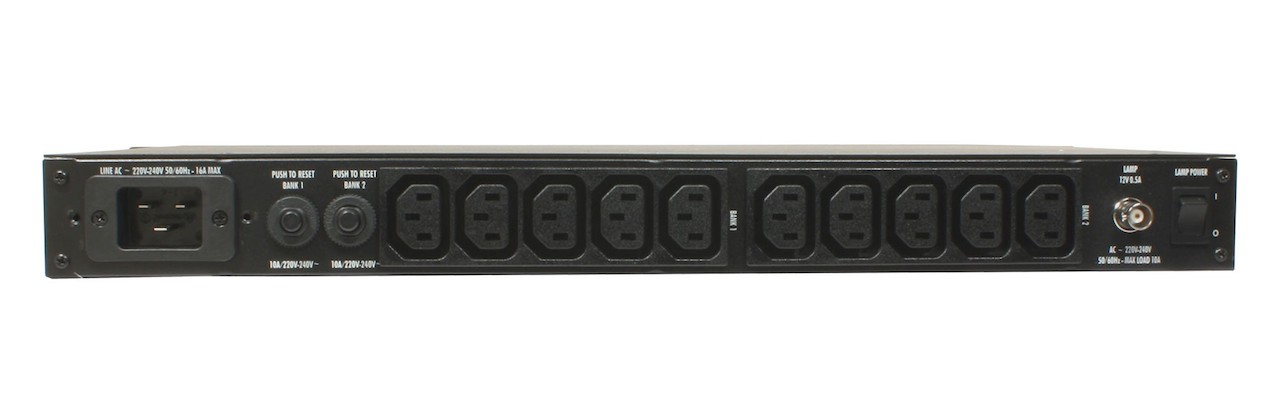

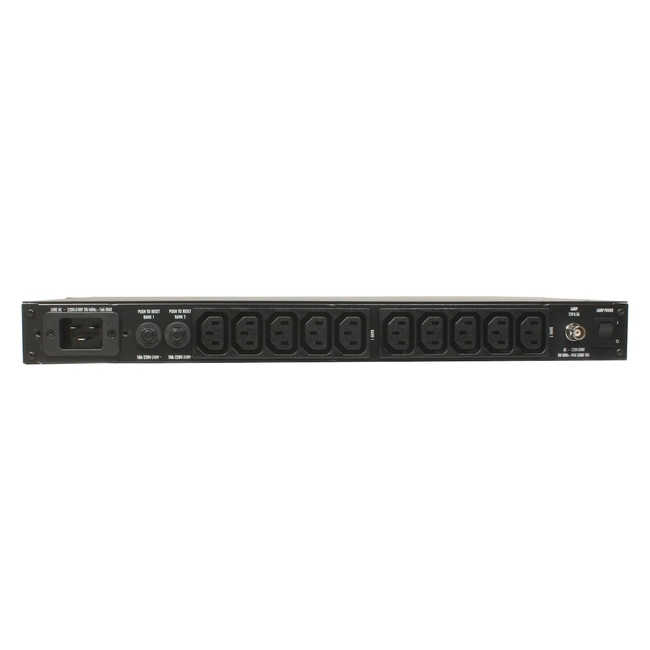

Output: 10 x 16A rear panel

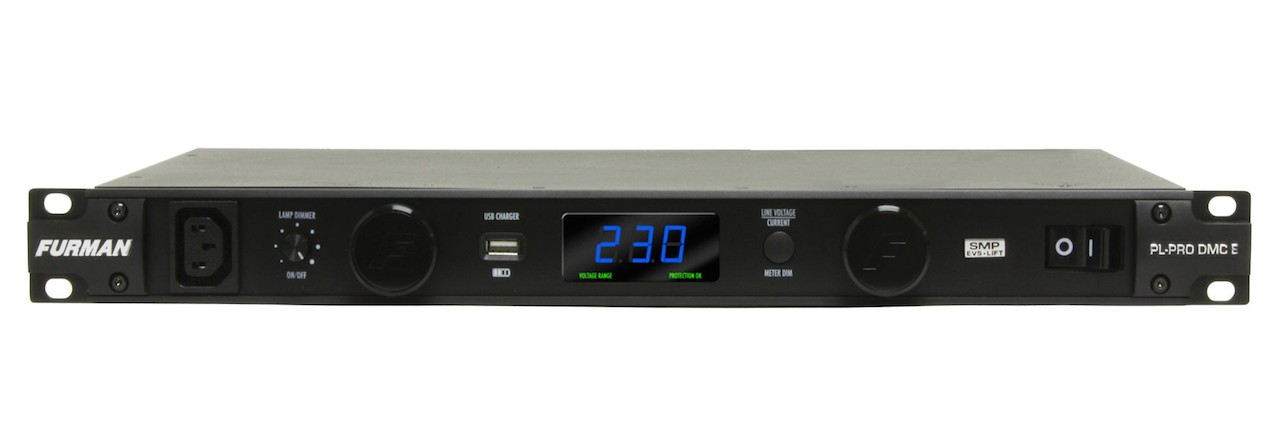

1 x 16A front panel
Spike protection mode: SMP, Line to Neutral, Zero ground leakage
Let through voltage: 376V peak/ 266V RMS @ 3000A
Noise attenuation (Transverse Mode): 10dB @ 10kHz, 40dB @ 100kHz, 50dB @ 500kHz
USB charging circuit: 500mA @ 5V DC, USB-A connector
Voltage Protection
Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
Pull-out Lights, Dual smooth track retractable LED lights illuminate equipment in rack.
Diagnostic Lights, LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
Front panel convenience charger allows you to charge most media devices or power a USB lamp.
Voltmeter / Ammeter
Large digital voltmeter / ammeter, with discrete dimmer button, displays line votlage and true RMS current draw.
Isolated Banks, Isolated outlet banks minimize inter-component interference and noise contamination.
Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.
Dimensions (W x H x D): 482.6 x 44.45 x 266.7 mm. Weight: 6 kg
Surge Protection
Furman's exclusive SMP technology provides the highest level of surge & spike protection available.
Noise Filtration
LiFT offers AC power filtering to ensure clean power for unequalled audio & video clarity.
Voltage Protection
Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
Pull-out Lights
Dual smooth track retractable LED lights illuminate equipment in your rack.
Diagnostic Lights
LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
USB Charger
Front panel convenience charger allows you to charge most media devices or power a USB lamp.
Voltmeter / Ammeter
Large digital voltmeter / ammeter, with discrete dimmer button, displays line voltage and true RMS current draw.
Isolated Banks
Isolated outlet banks minimize inter-component interference and noise contamination.
16 AMP Rating
16 Amp rating featuring a high inrush magnetic circuit breaker for added protection.
11 Total Outlets
11 total outlets (10 rear panel outlets and one front panel convenience outlet).
BNC Lamp Connector
Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.
