4.5-inch (114mm) Polycellulose Ribbed Cone Woofer
Each speaker in the Stage 2 series features Polycellulose ribbed cone woofers. This pure pulp cone has a proprietary mix of other materials added to improve its rigidity and the ribs echo legendary JBL designs. These woofers produce deep, accurate, room filling bass.

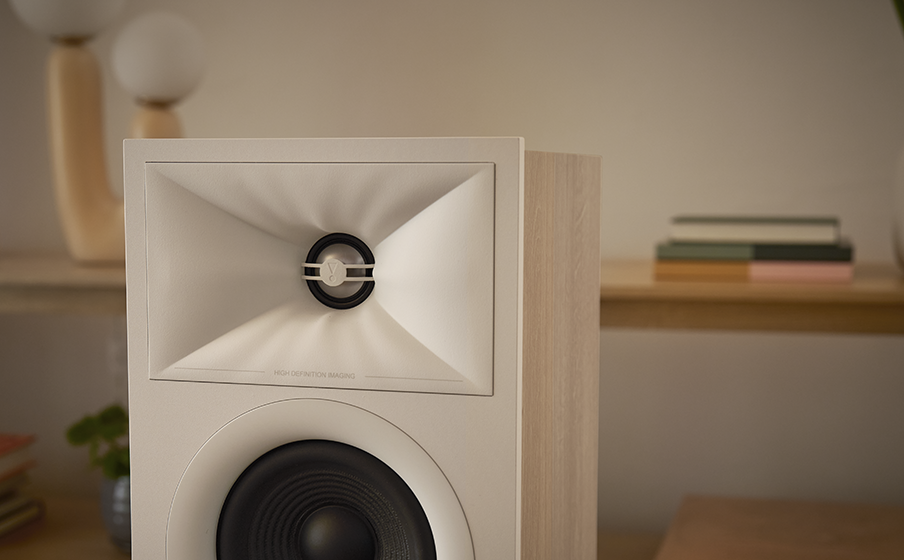

1-inch (25mm) Anodized Aluminum Tweeter in a Next Generation HDI™ Waveguide
Through intense research of previous waveguide designs, JBL has developed a new complex geometry that improves directivity, reduced diffraction, and an overall neutral frequency response both on and off axis. The Stage 2 HDI Horn is coupled to an anodized aluminum dome tweeter to enhance efficiency and dynamics.
Precision 2-Way Crossover
Premium components are used to construct the crossovers fitted to the Stage 2 line. The High frequency section features air core inductors and mylar capacitors that reduce distortion and improve sonic performance. The low frequency section includes laminate core inductors and electrolytic capacitors. These premium materials can handle more power and transmit energy faster elevating system performance.
Specifications
2-Way 4.5-inch (114mm) Bookshelf Loudspeaker
• Type: Bookshelf Loudspeaker System • Low Frequency Driver: 4.5-inch (114mm) Polycellulose Ribbed Cone • High Frequency Driver: 1-inch (25mm) Anodized Aluminum
• Waveguide: Next Generation HDITM • Recommended Amplifier Power: 20-125W • Frequency Response ± 6dB: 53Hz-25kHz
• Sensitivity @ 1M, 2.83V: 85dB • Nominal Impedance: 6Ohms • Crossover Frequencies: 1.4Khz
• Enclosure Tuning: Bass Reflex via Rear-Firing Tuned Port
• Finish:EspressoorLatte • Dimensions(HxWxD): 10.7in x 6.9in x 8.5in (272mm x 175mm x 217mm)
• Product Weight: 10.1 lbs. (4.6 kg) • Shipping Weight: 22.9 lbs. (10.4kg)
• Shipping Units of Measure: Pair
