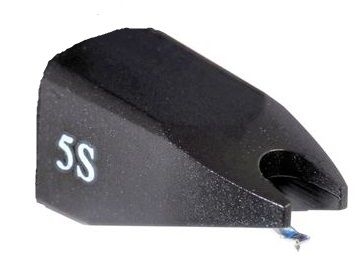

Ortofon Stylus 5s
Ανταλακτική βελόνα για την κεφαλή της ortofon OM 5s
We support installment purchases using a debit card. For details call us Phone
After Sales Support
Supplier guarantee up toYears
Next to you since 1976
Over 46 years of experience!
Join us
Earn special offers
The OM 5S is a moving magnet cartridge for general purpose application
If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM’s. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.
If your tonearm is an standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5 g.
The OM 5S features Spherical stylus, robust and economic solution for play back of vinyl records.
Technical specifications
Frequency range - 20-25.000 Hz
Frequency response - 20-25.000 Hz
Tracking ability at 315Hz at recommended tracking force *) - 65 µm
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 µm
*) Typical value
Equivalent stylus tip mass - 0.5 mg
Tracking force range - 1.5-2.0 g (15-20 mN)
Tracking force, recommended - 1.75 g (17.5 mN)
Tracking angle - 20°
Stylus colour - Black
Recommended for OM 5E, Super OM 5, OMP 5E, OMB 5E, OMT 5E, 5s
