SKU: 0013668

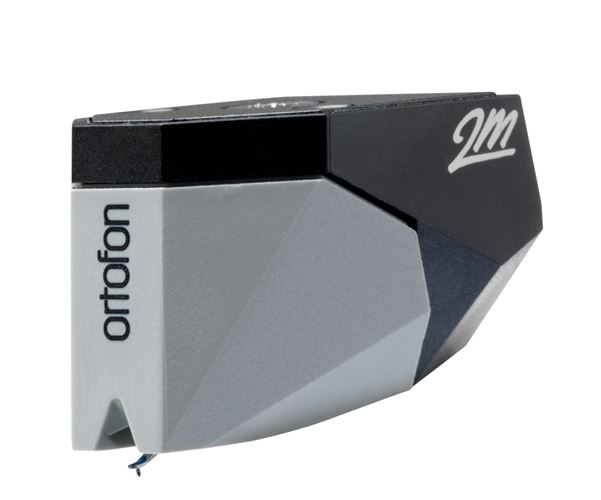

Ortofon 2M 78
Ortofon 2M 78

Ortofon 2M 78

brand-logo

Κεφαλή Pickup

Κατόπιν παραγγελίας - Σύμφωνα με την αποθήκη του προμηθευτή
€129,00 Final Price
Add to cart
Do you have any questions or want to place a phone order? Call us at 2109401167
Buy Now Pay Later with the use of a debit card

We support installment purchases using a debit card. For details call us Phone

Type him postcode της περιοχής σας - ώστε να σας ενημερώσουμε για τους τρόπους αποστολής / παραλαβής. Δυνατότητα παραλαβής με BOX NOW
badge

After Sales Support

Supplier guarantee up toYears

star

Next to you since 1976

Over 46 years of experience!

group

Join us

Earn special offers

Alternative Suggestions

Output voltage at 1000 Hz, 5cm/sec. - 4 mV
Channel balance at 1 kHz     -
Channel separation at 1 kHz     -
Channel separation at 15 kHz     -
Frequency range at - 3dB  -  20-20.000 Hz
Frequency response  -  20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 70 µm
Compliance, dynamic, lateral -  18 µm/mN
Stylus type  - Spherical
Stylus tip radius  -  R 65 µm
Tracking force range  -  1,6-2,0g (16-20 mN)
Tracking force, recommended  - 1,8 g (18 mN)
Tracking angle  -  20°

Internal impedance, DC resistance -  700 Ohm
Internal inductance  -  300 mH
Recommended load resistance  -  47 kOhm
Recommended load capacitance  -  150-300 pF
Cartridge colour, body/stylus  -  Black/Grey
Cartridge weight without screws  -  7,2 g
Replacement stylus unit  -  2M 78
