SKU: 0015064

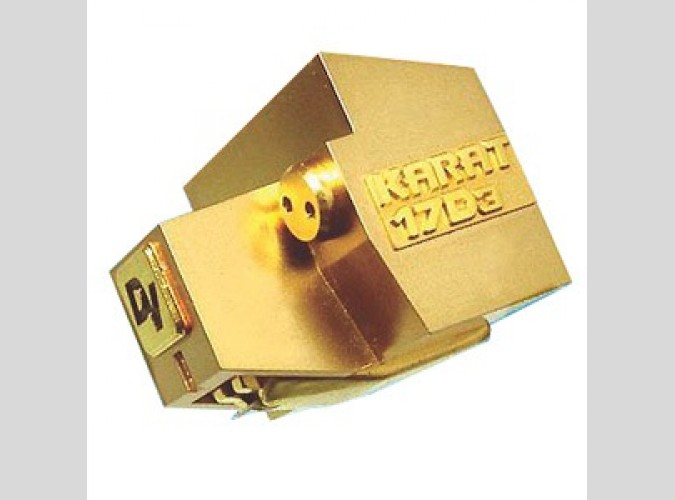

Dynavector Karat 17D3

Low Output with Diamond Cantilever.0.30mv output.The new 17D3 Karat Diamond is the first cartridge built using 'dispersion' theory. Its Micro-Ridge stylus and very short (1.7mm) solid diamond cantilever give a huge reduction in 'frequency dispersion', unmatched dynamics and a high frequency extension all the way up to 100kHz. The latest patented magnet circuit design increases the output to 0.3mV with crystal clear mid-range and treble even during the largest symphonic crescendos.

Κατόπιν παραγγελίας - Σύμφωνα με την αποθήκη του προμηθευτή
€2.250,00 Final Price
Add to cart
Do you have any questions or want to place a phone order? Call us at 2109401167
Buy Now Pay Later with the use of a debit card

We support installment purchases using a debit card. For details call us Phone

Type him postcode της περιοχής σας - ώστε να σας ενημερώσουμε για τους τρόπους αποστολής / παραλαβής.
badge

After Sales Support

Supplier guarantee up toYears

star

Next to you since 1976

Over 46 years of experience!

group

Join us

Earn special offers

Alternative Suggestions
Ortofon OM 5s
SKU: 57715
In Stock
€59,00
Audio Technica VM530EN
SKU: 0016069
In Stock
€239,00
€199,00
Audio Technica VM510CB
SKU: 0016067
In Stock
€139,00
€119,00
Audio Technica AT-XP5
SKU: 58697
In Stock
€109,00
€89,00
Audio Technica VM520EB
SKU: 0016068
In Stock
€159,00
€129,00
Audio Technica AT-VM95EN
SKU: 42558
In Stock
€149,00
€139,00
Audio Technica VM540ML
SKU: 0016070
In Stock
€299,00
€269,00
Nagaoka MP-110
SKU: 40483
In Stock
€164,00
Audio Technica AT-XP3
SKU: 58689
In Stock
€69,00
€59,00
Ortofon OM 5E
SKU: 002197
In Stock
€75,00
€74,80
Audio Technica AT81cp  κεφαλή P-Mount
SKU: 0017142
In Stock
€40,00
€30,00
Reloop Concorde Black
SKU: 58138
In Stock
€94,99
Τελευταία Τεμάχια
Shure M92E
SKU: 0013776
In Stock
€109,00
€97,00
Top seller
Audio Technica AT-VM95C
SKU: 41714
In Stock
€45,00
€39,00
Audio Technica AT-VM95E
SKU: 40417
In Stock
€69,00
€59,00
Audio Technica AT85EP
SKU: 42641
In Stock
€60,00
€40,00
Ortofon 2M Blue
SKU: 002199
In Stock
€209,00
Numark Groove Tool
SKU: 005861
In Stock
€22,90
Goldring E2 Moving Magnet Cartridge GL0056
SKU: 42549
In Stock
€109,00
Audio Technica AT-VM95SH
SKU: 42635
In Stock
€248,00
€219,00

Features and Improvements

The main change to the new Dynavector 17D3 is an improvement in the design of the front yoke. This appears, on the surface, to be a small difference yet contributes to a greatly improved overall performance justifying a model number change.

The new yoke improves focus in the magnetic circuit and in combination with the flux damping mechanism and softened magnetism (patent) gives accurate sonic qualities leading to a very natural sound. The change has also enabled a useful increase in output to 0.3mV.

The Dynavector Karat is notable for its gemstone cantilever. This 1.7mm long by 0.25mm diameter solid diamond cantilever has its 0.07 square mm stylus mounting hole precision cut by laser. The Micro Ridge Stylus of 0.07 square mm nude diamond is securely and accurately bonded to the cantilever.

The armature of 0.9mm square and 0.4mm thick is much smaller than normal, upon which are wound 60 turns per channel of 12 micron fine wire.

construction of Karat17D 1.7mm length Diamond
1.7mm length Diamond cantilever is much smaller than conventional cantilever

Karat 17D3 showed a ruler flat response from 100 Hz to 30KHz of under } 0.5 dB

Karat 17D3 showed a ruler flat response from 100 Hz to 30KHz of under ± 0.5 dB

SPECIFICATIONS
Type Low output moving coil cartridge with flux damper and softened magnetism
Output Voltage 0.3mV (at 1KHz, 5cm/sec.)
Channel Separation 25 dB (at 1KHz)
Channel balance 1.0 dB (at 1KHz)
Frequency response 20 - 20,000Hz (± 1dB), 20 - 100,000Hz
Compliance 15 x 10-6 cm/dyn
Tracking force 1.8 - 2.2grams
DC resistance  R=32 ohms
Recommended load
resistance
 > 100 ohms
Cantilever  1.7mm length, 0.25dia solid diamond
Stylus Micro-Ridge
Weight 5.8 grams
