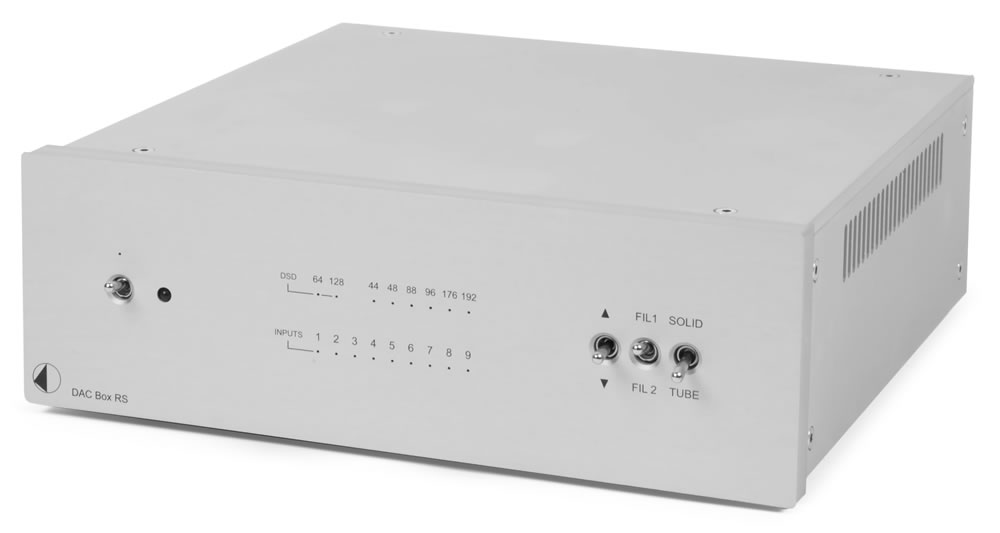

Pro-Ject DAC Box RS Silver
• Double top grade PCM-1792 D/A chip from Texas Instruments • 9 Inputs: USB, AES-EBU, optical (Toslink), coax (S/PDIF)
We support installment purchases using a debit card. For details call us Phone
Free shipping all over Greece!
After Sales Support
Supplier guarantee up toYears
Next to you since 1976
Over 46 years of experience!
Join us
Earn special offers
• Double top grade PCM-1792 D/A chip from Texas Instruments
• 9 Inputs: USB, AES-EBU, optical (Toslink), coax (S/PDIF)
• 24bit/192kHz asynchronous USB (XMOS technology)
• DSD (up to DSD128) capability (DSD over PCM)
• I²S interface for CD Box RS (sonic2data transfer technology) with additional clock synchronisation port (BNC)
• 2 selectable digital filter settings
• Fully balanced analogue audio circuitry
• Tube output stage & solid-state output stage (switchable)
• Ultra linear & ultra low noise circuitry
• IR remote control included
• XLR & RCA line level output sockets
• DC power supply (< 1 watt standby power)
Technical data | Pro-Ject DAC Box RS |
| D/A-converter | Double Texas Instruments PCM-1792 |
| 8 x Oversampling design | |
| Sampling rates | 32/44,1/48/88,2/96/176,2/192 kHz, |
| (optical up to 96kHz) | |
| Selectable filter settings | „steep“ & „optimum phase“ |
| 9 digital inputs | 2x coax (S/PDIF), 2x optical (Toslink®), |
| USB B, 1x AES/EBU, 1x I²S | |
| Precision clock output | BNC (use with CD Box RS) |
| Frequency response | 20Hz - 50kHz (+0/-1dB) |
| Output stages | 6922 tube and solid state (switchable) |
| Analogue out | RCA/Cinch & XLR |
| Output voltage | max 4/2 Veff (XLR/RCA) |
| THD | 0,005% solid state out |
| 0,25% tube out | |
| Signal to noise ratio | 100dB |
| Power consumption | |
| Outboard Power supply | 20V/3A DC (included) |
| Dimensions W x H x D | 206 x 72 x 200 (220mm with sockets) |
| Weight | 1010g without power supply |
