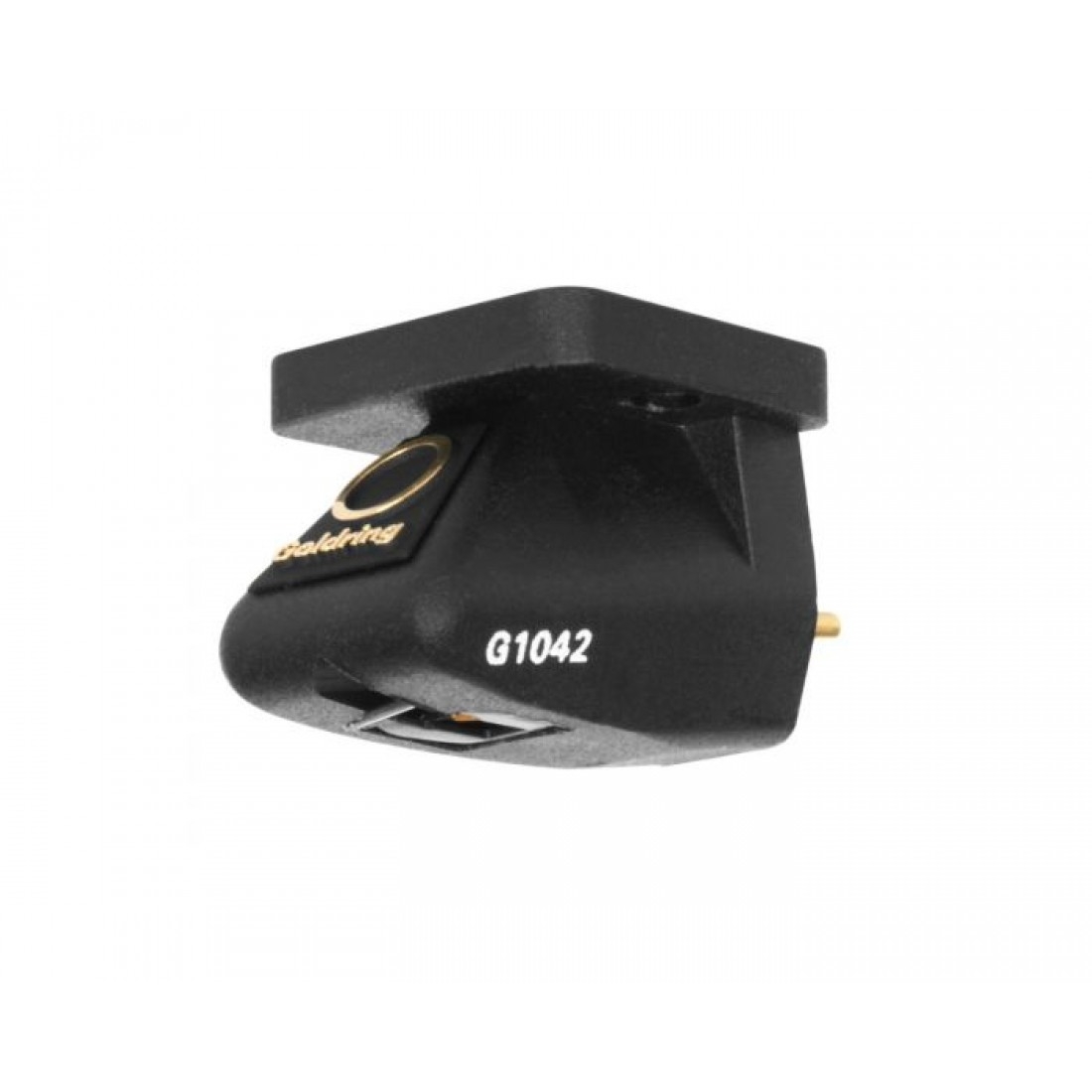

Ισορ.καναλιών 2dB@1kHz G1042 Διαχ. >> >25dB@1kHz Απόκριση συχν. 20Hz-20kHz Ευαισθ. 6.5mV± 1,5dB Βάρος κεφαλής /Τύπος 6,3g/ελλειπτική Δύναμη αναγν. 1,5-2,0 gr (1,7g nom.)Η Goldring 1042 είναι μια κεφαλή για τους λάτρεις της μουσικής που απαιτούν την απόλυτη ηχητική απόδοση από το σύστημά τους, σε συνδυασμό με την ευκολία του χρήστη να αντικαθιστά την βελόνα. Η εκτεταμένη επαφή του Gyger διαμαντιού της δίνει αξεπέραστη ανάλυση των λεπτών διαμορφώσεων στο αυλάκι του δίσκου , που παράγει μια εξαιρετικά λεπτομερή, ομαλό και μουσικό ήχο.
Κατόπιν παραγγελίας - Σύμφωνα με την αποθήκη του προμηθευτή
Frequency Response 20Hz-20kHz +/- 3dB Channel Balance 2dB @ 1kHz Channel Separation 25dB @ 1kHz Sensitivity 6.5mV +/-1.5dB, 1kHz @ 5 cm/sec Static Compliance 24mm/N lat., 16mm/N vert Equivalent tip mass 0.45 mg Vertical Tracking Angle 24 ° Stylus Radius Gyger S Stylus Type Replaceable Load Resistance 47 kΩ Load Capacitance 150-200pF Internal Inductance 570 mH Internal Resistance 660 Ω Cartridge Weight 6.3 g Fixing Centre 0.5" (12.7 mm) Playing Weight .5 - 2.0 g (1.7 g nom.)
Οδηγίες τοποθέτησης της κεφαλής στον βραχίονα
Step 1 Put the cartridge up to the headshell and gently tighten the screws into the holes.
Step 2 Then use the Allen key to tighten (but not over-tighten) the cartridge into place. To prevent damage, be careful not to knock the stylus guard or stylus
Step 3 Then connect the wires from the back of the tone arm to the coloured connecting pins at the rear of the cartridge. Each wire is colour coded (red, white, green, blue). It is best to use tweezers or a pair of small pliers to connect them.
Step 4 As they are very delicate, it is best to grab the wire by the connector to prevent damage. Ensure the wires are connected properly.
Step 5 The next stage is correctly aligning the cartridge to the protractor. Gently put the stylus of the cartridge on to the crossover point of the protractor.
Step 6 Holding the cartridge off the protractor, use the Allen key to gently loosen the screws. Once loosened you need to rotate the cartridge so that it is parallel with the lines on the protractor. When you are happy that they are parallel, you need to re-tighten the screws.
Step 7 When tightened, place the stylus back on the protractor to confirm it still lines up.
Step 8 Use the second chart to check that everything is parallel in both positions. When you are happy, ensure the screws are tight enough (but not too tight). Your cartridge is now correctly aligned.
Frequency Response 20Hz-20kHz +/- 3dB Channel Balance 2dB @ 1kHz Channel Separation 25dB @ 1kHz Sensitivity 6.5mV +/-1.5dB, 1kHz @ 5 cm/sec Static Compliance 24mm/N lat., 16mm/N vert Equivalent tip mass 0.45 mg Vertical Tracking Angle 24 ° Stylus Radius Gyger S Stylus Type Replaceable Load Resistance 47 kΩ Load Capacitance 150-200pF Internal Inductance 570 mH Internal Resistance 660 Ω Cartridge Weight 6.3 g Fixing Centre 0.5" (12.7 mm) Playing Weight .5 - 2.0 g (1.7 g nom.)
Οδηγίες τοποθέτησης της κεφαλής στον βραχίονα
Step 1 Put the cartridge up to the headshell and gently tighten the screws into the holes.
Step 2 Then use the Allen key to tighten (but not over-tighten) the cartridge into place. To prevent damage, be careful not to knock the stylus guard or stylus
Step 3 Then connect the wires from the back of the tone arm to the coloured connecting pins at the rear of the cartridge. Each wire is colour coded (red, white, green, blue). It is best to use tweezers or a pair of small pliers to connect them.
Step 4 As they are very delicate, it is best to grab the wire by the connector to prevent damage. Ensure the wires are connected properly.
Step 5 The next stage is correctly aligning the cartridge to the protractor. Gently put the stylus of the cartridge on to the crossover point of the protractor.
Step 6 Holding the cartridge off the protractor, use the Allen key to gently loosen the screws. Once loosened you need to rotate the cartridge so that it is parallel with the lines on the protractor. When you are happy that they are parallel, you need to re-tighten the screws.
Step 7 When tightened, place the stylus back on the protractor to confirm it still lines up.
Step 8 Use the second chart to check that everything is parallel in both positions. When you are happy, ensure the screws are tight enough (but not too tight). Your cartridge is now correctly aligned.
Manufacturer : Goldring
Supplier Code : 20.04420
