SKU: 001253

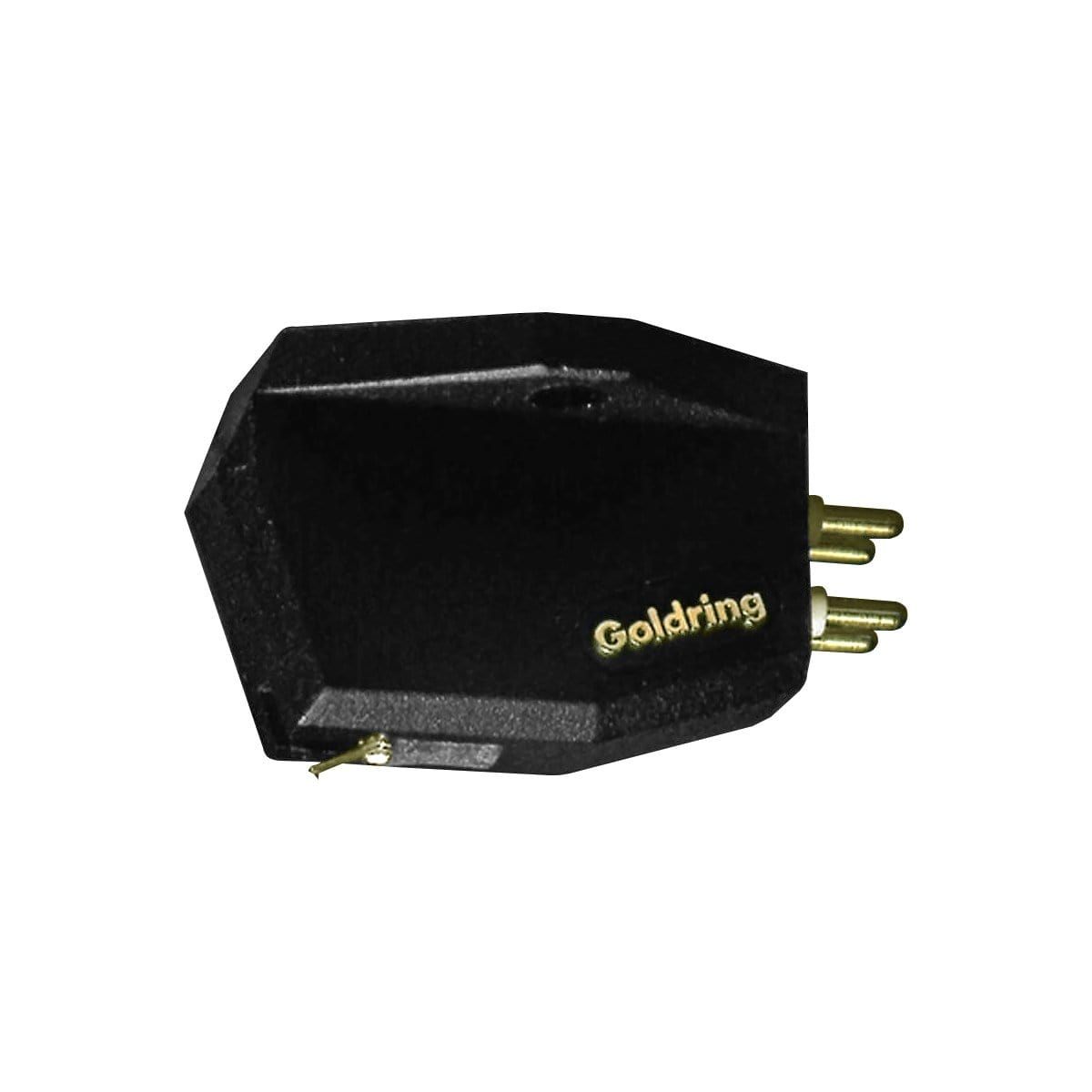

Goldring Elite Moving Coil Cartridge GL0010M
Goldring Elite Moving Coil Cartridge GL0010M

Goldring Elite Moving Coil Cartridge GL0010M

brand-logo

Ισορ.καναλιών 1dB max@1kHz Elite Διαχ.καν.>25dB min@1kHz Απόκριση 20Hz-30kHz@±2dB Ευαισθ. 0,5mV± 1dB@1kHz Βάρος κεφαλής/Τύπος 5,7gr/Gyger S Δύναμη αναγν. 1,5-2,0 gr (1,7gr nom.)Η Elite είναι μια εξαιρετικά υψηλής απόδοσης κεφαλή κινητού πηνίου, το οποίο ενσωματώνει τις πιο πρόσφατες δυνατότητες σχεδιασμού της Goldring. Αυτές περιλαμβάνουν νέα μαγνητικά κυκλώματα, ένα εξαιρετικά άκαμπτο Pocan® σώμα και ένα μαγνήτη νεοδυμίου.

Κατόπιν παραγγελίας - Σύμφωνα με την αποθήκη του προμηθευτή
€899,00 Final Price
Add to cart
Do you have any questions or want to place a phone order? Call us at 2109401167
Buy Now Pay Later with the use of a debit card

We support installment purchases using a debit card. For details call us Phone

Type him postcode της περιοχής σας - ώστε να σας ενημερώσουμε για τους τρόπους αποστολής / παραλαβής.
badge

After Sales Support

Supplier guarantee up toYears

star

Next to you since 1976

Over 46 years of experience!

group

Join us

Earn special offers

Alternative Suggestions
Audio Technica VM530EN
SKU: 0016069

Audio Technica VM530EN

In Stock
€239,00
€199,00
Audio Technica AT-XP5
SKU: 58697

Audio Technica AT-XP5

In Stock
€109,00
€89,00
Audio Technica VM520EB
SKU: 0016068

Audio Technica VM520EB

In Stock
€159,00
€129,00
Audio Technica AT-VM95EN
SKU: 42558

Audio Technica AT-VM95EN

In Stock
€149,00
€139,00
Audio Technica VM540ML
SKU: 0016070

Audio Technica VM540ML

In Stock
€299,00
€269,00
Nagaoka MP-110
SKU: 40483

Nagaoka MP-110

In Stock
€164,00
Audio Technica AT-XP3
SKU: 58689

Audio Technica AT-XP3

In Stock
€69,00
€59,00
Ortofon OM 5E
SKU: 002197

Ortofon OM 5E

In Stock
€75,00
€74,80
Audio Technica AT81cp κεφαλή P-Mount
SKU: 0017142

Audio Technica AT81cp κεφαλή P-Mount

In Stock
€40,00
€30,00
Τελευταία Τεμάχια
Shure M92E
SKU: 0013776

Shure M92E

In Stock
€109,00
€97,00
Audio Technica AT85EP
SKU: 42641

Audio Technica AT85EP

In Stock
€60,00
€40,00
Top seller
Audio Technica AT-VM95C
SKU: 41714

Audio Technica AT-VM95C

In Stock
€45,00
€39,00
Nagaoka MP-100
SKU: 40482

Nagaoka MP-100

In Stock
€135,00
Ortofon OM 5s
SKU: 57715

Ortofon OM 5s

In Stock
€59,00
Audio Technica AT-VM95ML
SKU: 42634

Audio Technica AT-VM95ML

In Stock
€199,00
€179,00
Reloop Concorde Black
SKU: 58138

Reloop Concorde Black

In Stock
€94,99
Audio Technica VM510CB
SKU: 0016067

Audio Technica VM510CB

In Stock
€139,00
€119,00
Goldring E2 Moving Magnet Cartridge GL0056
SKU: 42549

Goldring E2 Moving Magnet Cartridge GL0056

In Stock
€109,00
Audio Technica AT-VM95SH
SKU: 42635

Audio Technica AT-VM95SH

In Stock
€248,00
€219,00
Ortofon 2M Blue
SKU: 002199

Ortofon 2M Blue

In Stock
€209,00
Numark Groove Tool
SKU: 005861

Numark Groove Tool

In Stock
€22,90
Audio Technica AT-VM95E
SKU: 40417

Audio Technica AT-VM95E

In Stock
€69,00
€59,00


Η Elite ενσωματώνει μια Gyger S  επαφής γραφίδα της βελόνας, παρέχοντας τη μέγιστη ανάκτηση πληροφοριών από το αυλάκι του δίσκου με μια εξαιρετικά ομαλή και εκτεταμένη απόκριση.Η Βέλτιστη απόσβεση στα δύο κανάλια επιτυγχάνεται με συμμετρική περιέλιξη της χαμηλής μάζας "οπλισμού" της. Ασημένιο σύρμα  χρησιμοποιείται για τα πηνία, τα οποία παρέχουν πολύ υψηλότερη ευκρίνεια από ότι στης συμβατικής κατασκευής κεφαλών.

Η Elite αντιπροσωπεύει ότι καλύτερο στη βρετανική τεχνολογία ήχου και σχεδιασμού.

προδιαγραφές

Frequency Response20Hz-30kHz +/- 2 dB
Channel Balance1 dB max. @ 1 kHz
Channel Separation25 dB min. @ 1 kHz
Sensitivity0.5 mV +/- 1 dB @ 1 kHz
Static Compliance18 mm/N
Equivalent tip mass0.35 mg
Vertical Tracking Angle20 °
Stylus RadiusGyger S
Stylus TypeNon-Replaceable
Load Resistance100 Ω
Load Capacitance100 - 500 pF
Internal Inductance2  uH
Internal Resistance8 Ω
Cartridge Weight5.7 g
Fixing Centre0.5" (12.7 mm)
Playing Weight1.5 - 2.0 g (1.7 g nom.)

Οδηγίες τοποθέτησης της κεφαλής στον βραχίονα






Step 1
Put the cartridge up to the headshell and gently tighten the screws into the holes.

Step 2
Then use the Allen key to tighten (but not over-tighten) the cartridge into place. To prevent damage, be careful not to knock the stylus guard or stylus

Step 3
Then connect the wires from the back of the tone arm to the coloured connecting pins at the rear of the cartridge. Each wire is colour coded (red, white, green, blue). It is best to use tweezers or a pair of small pliers to connect them.

Step 4
As they are very delicate, it is best to grab the wire by the connector to prevent damage. Ensure the wires are connected properly.

Step 5
The next stage is correctly aligning the cartridge to the protractor. Gently put the stylus of the cartridge on to the crossover point of the protractor.

Step 6
Holding the cartridge off the protractor, use the Allen key to gently loosen the screws. Once loosened you need to rotate the cartridge so that it is parallel with the lines on the protractor. When you are happy that they are parallel, you need to re-tighten the screws.

Step 7
When tightened, place the stylus back on the protractor to confirm it still lines up.

Step 8
Use the second chart to check that everything is parallel in both positions. When you are happy, ensure the screws are tight enough (but not too tight). Your cartridge is now correctly aligned.
