SKU: 002203

Ortofon OM D25M

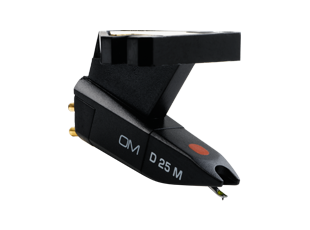

The OM D25M is a magnetic cartridge (MM) with a spherical stylus that is an optimal solution for playing mono 25µm microgroove vinyl records, which require a slightly larger stylus profile for best sound reproduction.

Κατόπιν παραγγελίας - Σύμφωνα με την αποθήκη του προμηθευτή
€69,00 Final Price
Add to cart
Do you have any questions or want to place a phone order? Call us at 2109401167
Buy Now Pay Later with the use of a debit card

We support installment purchases using a debit card. For details call us Phone

Type him postcode της περιοχής σας - ώστε να σας ενημερώσουμε για τους τρόπους αποστολής / παραλαβής. Δυνατότητα παραλαβής με BOX NOW
badge

After Sales Support

Supplier guarantee up toYears

star

Next to you since 1976

Over 46 years of experience!

group

Join us

Earn special offers

Alternative Suggestions
Audio Technica AT-XP7
SKU: 58701
In Stock
€199,00
€179,00
Reloop OM BLK κεφαλή πικαπ
SKU: 0010937
In Stock
€35,00
Reloop Concorde Black
SKU: 58138
In Stock
€94,99
Ortofon Concorde MkII MIX
SKU: 0016599
In Stock
€109,00
€108,00
Ortofon OM PRO S
SKU: 002247
In Stock
€49,00
€48,00

The OM D25M is a magnetic cartridge (MM) with a spherical stylus that is an optimal solution for playing mono 25µm microgroove vinyl records, which require a slightly larger stylus profile for best sound reproduction.

Technical data
Output voltage at 1000 Hz, 5cm/sec.4 mV, Lateral (mono)
Frequency range at - 3dB20-20.000 Hz
Frequency response20-18.000 Hz +3 / - 2 dB
Tracking ability at 315Hz at recommended tracking force *)> 70 µm
Compliance, dynamic, lateral7 µm / mN
Stylus typeSpherical
Stylus tip radiusR 25 µm
Tracking force range2,0-3,0 g (20-30 mN)
Tracking force, recommended2,5 g (25 mN)
Tracking angle20°
Internal impedance, DC resistance750 Ohm
Internal inductance450 mH
Recommended load resistance47 kOhm
Recommended load capacitance200-600 pF
Cartridge colour, body/stylusBlack/Black
Cartridge weight5 g
