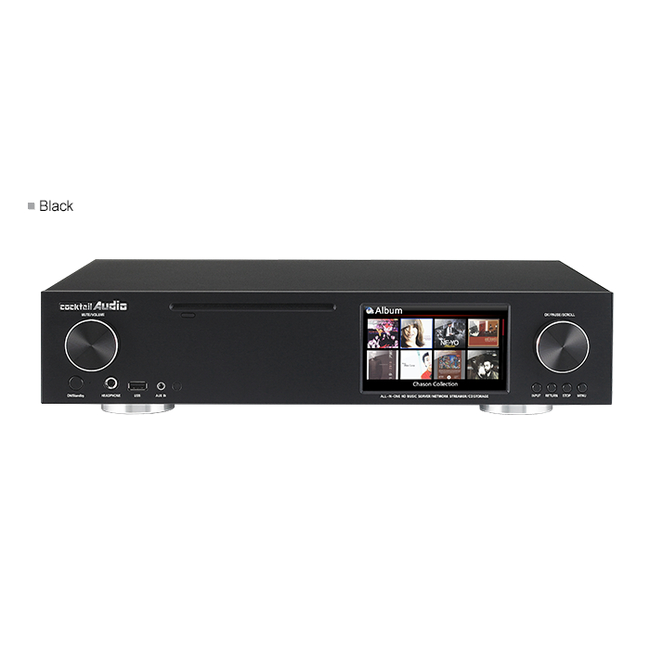

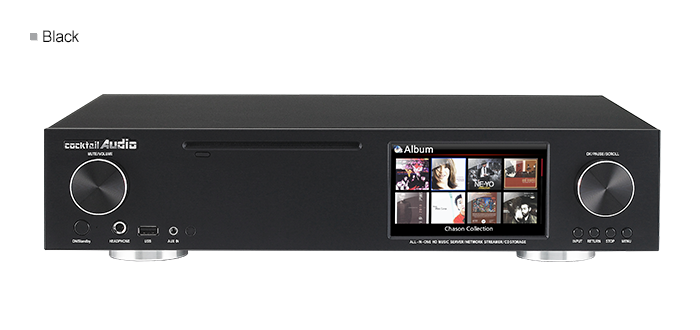

Cocktail Audio CA-X30 και δώρο Wlan-N USB adapter
Ένα επαναστατικό σύστημα HiFi όλα σε ένα με έξυπνο HD Μουσικό Server/Network με δυνατότητα CD αποθήκευσης (Ripper) υψηλής ταχύτητας Compact Disc drive για την αντιγραφή CD,με ισχυρό ενισχυτή.Ήχο υψηλής ποιότητας μέσω του DAC Burr-Brown HD.Υψηλής ανάλυσης (24bit / 192kHz) ψηφιακή έξοδος.Πολλαπλές είσοδοι και έξοδοι για ευέλικτη συνδεσιμότητα. Υψηλή συνδεσιμότητα.Υψηλής απόδοσης στερεοφωνικό ενισχυτή diigital με δυναμική 100W.Γρήγορη αντιγραφή CD σε CD συμπεριλαμβανομένων των εξωφύλλων άλμπουμ.Γρήγορη και εύκολη εγκατάσταση χάρη στην οθόνη LCD 5 in.Συνδέστε την τηλεόρασή σας για να δείτε ένα slideshow των φωτογραφιών σας, ενώ ακούτε τα κομμάτια σας.FM tuner και πολλά άλλα.
We support installment purchases using a debit card. For details call us Phone
After Sales Support
Supplier guarantee up toYears
Next to you since 1976
Over 46 years of experience!
Join us
Earn special offers
| Model name | CA-X30 | Remarks | |||
| Host CPU & Memory | Embedded 700Mhz MIPS | ||||
| Main Memory(4Gbit, DDR2 800Mhz) | |||||
| Firmware Memory(4Gbit) | |||||
| CD Player | Type | Front Loading | |||
| Supported media | CD, CD-DA, CD-R, CD-RW, DVD-R/RW | ||||
| Supported audio codec & format | APE/CUE, HD FLAC, HD WAV, MP3, FLAC, WAV, WMA, M4A, AAC, ALAC, AIFF , AIF, Ogg Vorbis, PCM, PLS, M3U, etc. | ||||
| Interface | 5" TFT LCD(800x480 pixel) on the front | ||||
| External big screen like TV to be connected through HDMI connector | |||||
| Remote Control | |||||
| Customized Web Interface (Web UI) for Web Browser like Internet Explorer, FireFox, Chrome, Safari. | |||||
| Free UPnP app available in app store or market for iOS and Android | |||||
| Amplifier (Speaker Out) | Rated output : 50W + 50W @ 1Khz, 8 ohm, 0.1% THD | ||||
| ANALOG OUT | LINE OUT (L & R RCA) | Dynamic Range : 127 dB(2 V rms, Stereo) THD+N : 0.0004% | DAC IC : Burr-Brown PCM1792A | ||
| Headphone Out | 6.35mm jack on the front, 500mW+500mW@1Khz, 32 ohm, 0.1% THD | ||||
| DIGITAL OUT | Toslink x 1 | Sample Rate : up to 24bit/192Khz | |||
| COAXIAL x 1 | SPDIF 75ohm RCA, Sample Rate : up to 24bit/192Khz | ||||
| AES/EBU XLR x 1 | 110ohm, Sample Rate : up to 24bit/192Khz | ||||
| ANALOG INPUT | LINE IN x 1 | L & R RCA at the rear, 2V rms | |||
| AUX IN x 1 | 3.5mm Phone Jack on the front, 800mV rms | ||||
| DIGITAL INPUT | Toslink x 1 | Sample Rate : up to 24bit/192Khz | |||
| COAXIAL x 1 | Sample Rate : up to 24bit/192Khz | ||||
| TUNER | FM Radio | * Tuning Range(FM 87.5 - 108MHz) * FM Antenna input Impedance : 75ohm unbalance | * RDS is supported | ||
| Connectivity | 3 x USB Host ports | Front | 1x USB Host | ||
| Rear | 2x USB Host | ||||
| Network | Wired | Giga Fast Ethernet(10/100/1000Mbps) LAN | |||
| Wireless (Optional) | * 801.11b/g/n WiFi USB dongle(Optional) | ||||
| HDMI OUT(video only) x 1 | Connecting to external big screen like TV for GUI display and photo slide show | ||||
| POWER SUPPLY | Audio Power Supply | Linear Power Supply | Isolated power source | ||
| CPU Power Supply | 150W internal SMPS | ||||
| Supported Storage | Hard Disk | 2.5” SATA, up to 1TB | Removable storage tray (drawer) is provided. | Bigger capacity to be supported by firmware update. | |
| 3.5” SATA, up to 4TB | |||||
| SSD | 2.5” SATA, up to 500GB | ||||
| Supported audio codec & format | APE/CUE, MP3, HD WAV, HD FLAC, WAV, WMA, M4A, Apple Lossless, AAC, AIFF, AIF, Ogg Vorbis, PCM, Playlist(PLS, M3U) | ||||
| Network & Internet | Supported Network protocol | UPnP server/client/media renderer, Samba server/client, FTP server, Web server, etc | |||
| Streaming Playback | Hi-res 24bit/192Khz network streaming playback | ||||
| File management | Copy, delete, rename, importing and exporting between X30 storage and NAS or networked PC | ||||
| Remote controlling by mobile devices | To control remotely by iPhone, iPad and Android base devices. | ||||
| Customized Web UI | Music database of X30 can be controlled and managed by the customized Web UI for IE, Firefox, Chrome and Safari. | ||||
| Internet Service | Internet Radio : Reciva internet radio | ||||
| Online Music Service : Simfy < note * > More services like Spotify, Rhapsody will be added. But, we can’t guarantee its schedule as present. | |||||
| Supported OSD Lang. | English, German, French, Spanish, Italian, Polish, Czech, Dutch, Traditional Chinese, Russian, Danish, Korean, etc ( To be added by request) | ||||
| Power Source | AC 220V - 240V, 50/60Hz (For Europe) < note * > We will support 110V countries also. | ||||
| Mechanical | Material | Front : 8mm thickness aluminum / Chassis : Metal | |||
| Dimension | without foot | 435mm(W) x 325mm(D) x 88mm(H) | |||
| with foot | 435mm(W) x 325mm(D) x 98.5mm(H) | ||||
| Certificate | CE, FCC, EMI, etc | ||||
※ Specification to be changed without notification.
● Equipped with a 700MHz MIPS host CPU (Processor)
● Burr-Brown PCM1792a DAC(digital-to-analogue converter) chip
● Powerful TI stereo digital amplifier
● Isolated power source circuit design for digital parts and analogue parts
● High speed optical disk drive for quick ripping
● 5 inch full colour screen for intuitive graphical user interface
● FM radio tuner
● Internet Radio and online music service like Simfy(it depends on country)
● Recording with max 192Khz sampling rate
● Max capacity storage installation for 3.5” & 2.5” SATA hard disk and SSD
● Versatile network solution for 24bit/192Khz hi-res streaming playback and file management
● Customized Web Interface and free UPnP apps for remote controlling
● Rugged chassis construction with 8mm thick aluminium front with a metal chassis
● Various software functionalities
| |||||||||
 | |||||||||
