SKU: 79333
free shipping

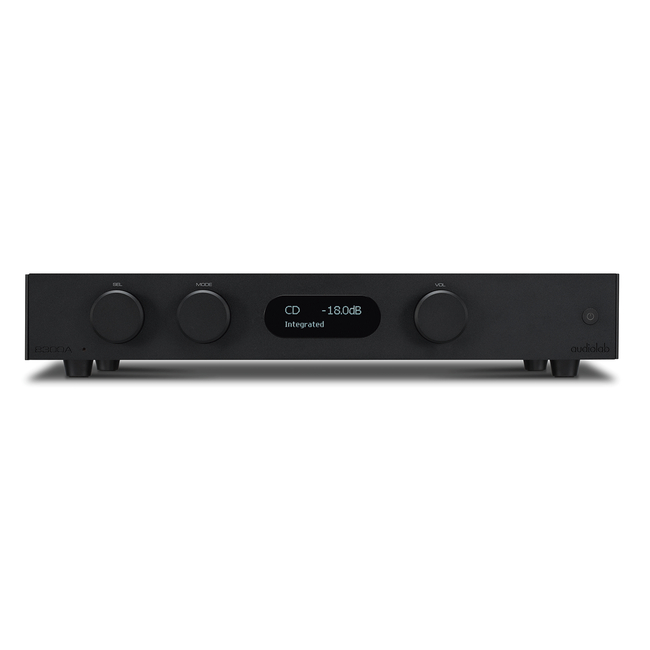

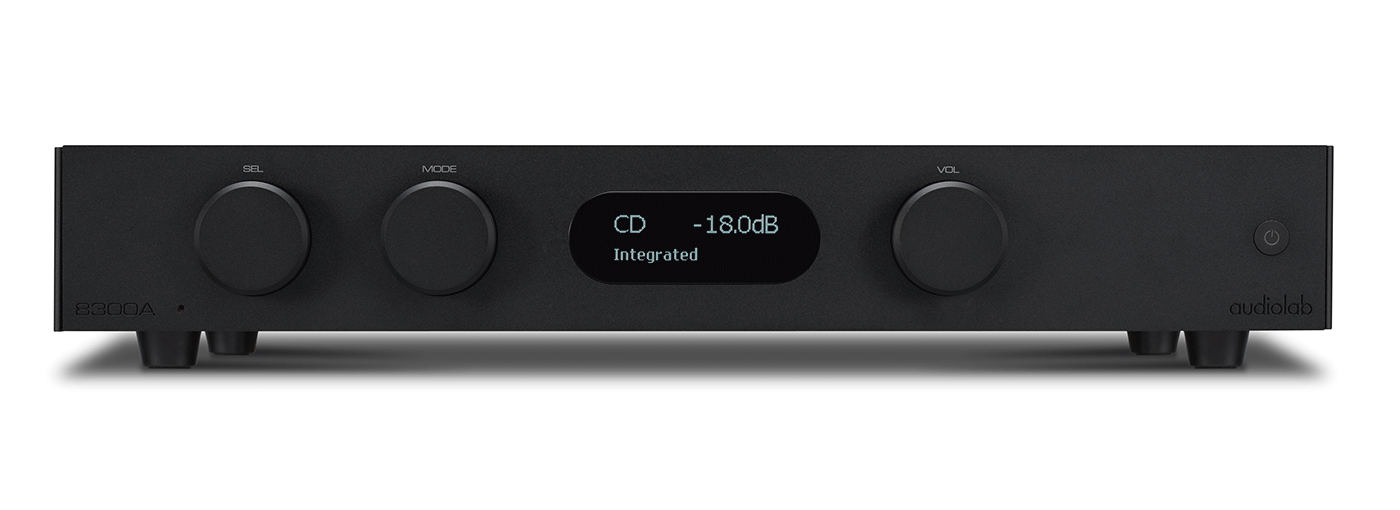

Audiolab 8300A - Black
Audiolab 8300A - Black

Audiolab 8300A - Black

Πλήρως επανασχεδιασμένος από την αρχή, ο νέος μας ολοκληρομένος ενισχυτής, ο 8300A είναι μίλια μπροστά από αυτό που ήταν ήδη πρωτοποριακό στον κλάδο. Υψηλότερη ισχύς, πρόσθετη είσοδο phono και νέο στυλ audiolab σημαίνει ότι ο ενισχυτής είναι πιο κομψός και πιο ευέλικτος από ποτέ. Το πιο σημαντικό είναι ότι τα νέα εξαιρετικά αποδοτικά κυκλώματα και τα βελτιωμένα εξαρτήματα δημιουργούν μια εμπειρία ακρόασης που φέρνει νέο ορισμό στην αγαπημένη σας μουσική. Η ισχύς του είναι 230W/4Ω ή 150W/8Ω.



Color

Available in 10 - 30 days
€1.549,00 Final Price
Add to cart
Do you have any questions or want to place a phone order? Call us at 2109401167
Buy Now Pay Later with the use of a debit card

We support installment purchases using a debit card. For details call us Phone

Free shipping all over Greece!

badge

After Sales Support

Supplier guarantee up toYears

star

Next to you since 1976

Over 46 years of experience!

group

Join us

Earn special offers

Alternative Suggestions
Taga Harmony TA-600MULTI  stereo ενισχυτής 4 ζωνών
Cambridge Audio AXA35 Intergrated Amplifier Lunar Gray
Sonos Amp
SKU: 42639
In Stock
€799,00
Taga Harmony TA-400MIC
SKU: 0013262
In Stock
€227,00
VIP
Do you want lower prices? Register and get a discount! Subscribe now
Marantz Model 40n - Black
SKU: 59779
In Stock
€2.599,00
Pioneer A-40AE - Silver  4573211154009
SKU: 79897
In Stock
€499,00
€486,50
Pioneer A-10AE - Silver  4573211153972
SKU: 79899
In Stock
€349,00
System Fidelity SA-250 Silver
SKU: 59814
In Stock
€340,00
€306,00
Dynavox CS-PA1 mkII mini - Black 207740
SKU: 58298
In Stock
€119,00
Dynavox Mini Stereo Digital Amplifier CS-PA8 Black --207684-
YAMAHA A-S301 (S) Oλοκληρωμένος Eνισχυτής
SKU: 57956
In Stock
€339,00
€321,89
Arcam A5 (1200130004186)
SKU: 84878
In Stock
€890,00
VIP
Do you want lower prices? Register and get a discount! Subscribe now
Cambridge Audio Evo 150 All in One Player
SKU: 51538
In Stock
€2.399,00
€2.390,00
YAMAHA A-S701 (B) Oλοκληρωμένος Ενισχυτής
SKU: 57952
In Stock
€648,00
€635,00
YAMAHA A-S301 (B) Oλοκληρωμένος Eνισχυτής
SKU: 009278
In Stock
€339,00
€321,80
ΥΑΜΑΗΑ A-S201 (S) Ολοκληρωμένος Ενισχυτής
Cambridge Audio CXA61 Integrated Amplifier 2x60W
SKU: 44853
In Stock
€949,00
€799,00
Metro ONE Ενισχυτής 2x40W max
SKU: 0014339
In Stock
€94,00
ΥΑΜΑΗΑ A-S201 (B) Ολοκληρωμένος Ενισχυτής
Cambridge Audio AXA25 Intergrated Amplifier Lunar Gray
Denon PMA-600NE Black
SKU: 43962
In Stock
€469,00
€466,00
Dynavox VT-80 mk  SD, USB,  Black-207678-
SKU: 48105
In Stock
€215,00
€199,00
Lyngdorf TDAI-1120
SKU: 89153
In Stock
€2.199,00
Marantz MODEL M1
SKU: 4000001
In Stock
€999,00

Brilliance evolved

The 8300A’s circuit design delivers all-new sound quality. The soundstage it produces is deeper and broader, with greater space and separation within. Instrument and voices are better defined, their character is vividly portrayed. Dynamic range is greater and frequency response is further extended, with greater bass definition and treble that is both crisper and sweeter. In short, it delivers an open window on the music being played, as all great HiFi should, engaging the listener with natural, unforced energy that is fully reflective of the source material.

Versatile High End Integrated Amplifier

At this amplifier’s heart is a powerful dual-mono amplifier delivering 75W per channel into eight ohms. CFB or ‘Complementary Feedback’ topology offers superior linearity and ensures excellent thermal stability.

ACD or ‘Active Current Drive’ means current limiting is under microprocessor control, programmed to allow the amplifier to supply high currents into complex loads, on par with amplifiers that are bigger and more powerful on paper.

8300A Specifications

General description Integrated Amplifier
Design philosophy and core technology Dual Mono Power Amp Design
Display OLED 128x64 pixels 2.7"
Controls Logarithmic Ladder Volume Design
Finish Fine Textured Aluminium (Black / Silver)
Standby Features Yes
12V Trigger Yes
Phono Yes (MM/MC)
Balanced XLR Input Yes
Pre-amplifier Section

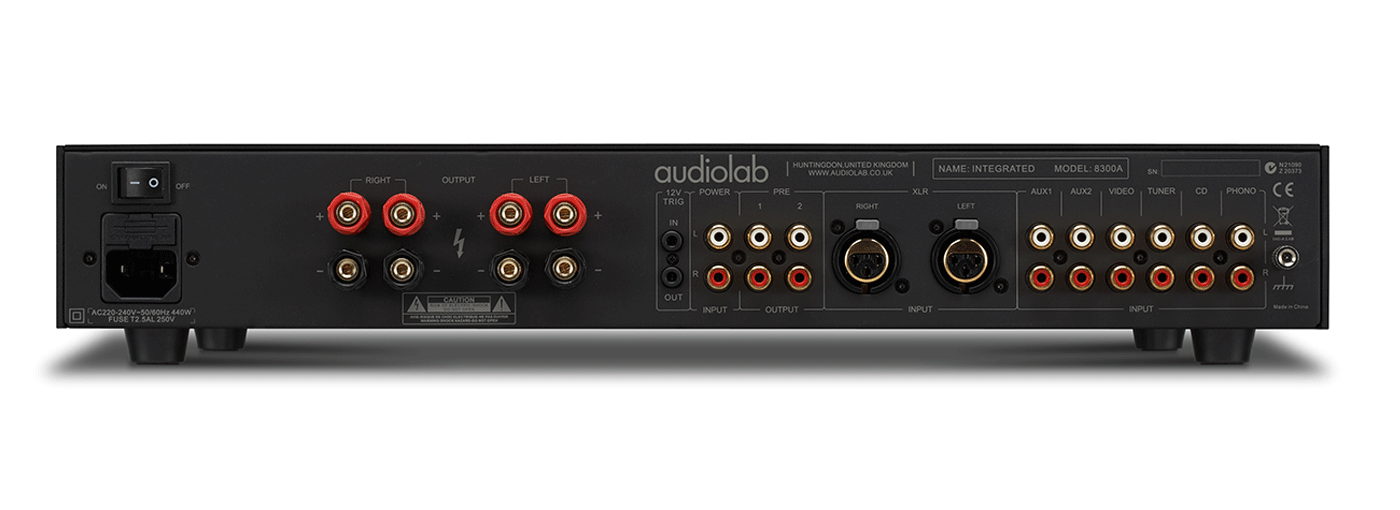

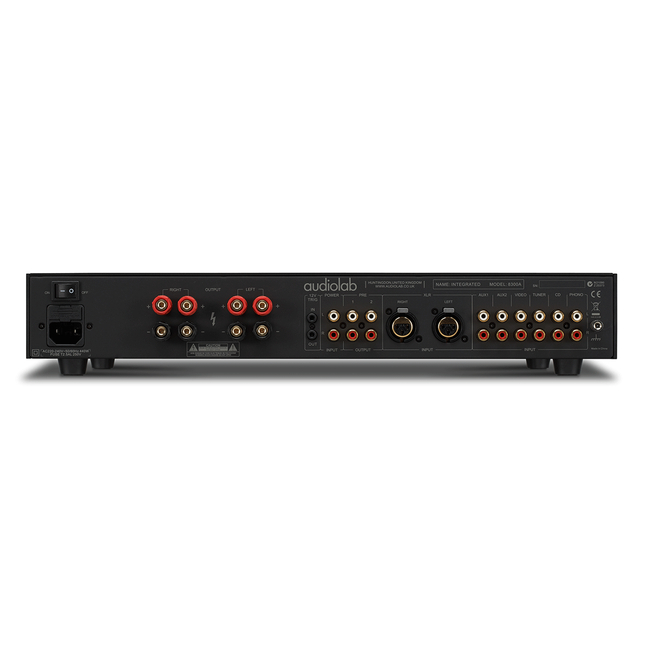

Inputs CD, Video, Tuner, Aux 1, Aux 2, XLR (Balanced) & Phono
Outputs 2 x RCA
Input sensitivity (Phono RIAA) 50K // 100pF
Input impedance (line inputs) 50K // 100pF
Input impedance (phono inputs) 47K // 100pF (MM), 100R // 1.5nF (MC)
Output voltage 2.3V max. (< 0.02% THD)
Output impedance 120Ω
Frequency response (Line) +/- 0.1dB (10Hz - 20kHz)
+/- 3.0dB (1Hz - 100kHz)
Frequency response (Phono RIAA) +/- 1.0dB (20Hz - 20kHz)
Channel Imbalance < 0.2dB (10Hz - 20kHz)
Total harmonic distortion (THD) Line <0.001%
Total harmonic distortion (THD) Phono <0.002%
Signal-to-noise ratio (Line) > 107dB
>109dB(A-weighted)
Signal-to-noise ratio Phono (MM) > 73dB
> 78dB(A-weighted)
Signal-to-noise ratio Phono (MC) > 68dB
> 73dB(A-weighted)
Crosstalk < 80dB (L-> R & R->L @10kHz)
Power amplifier Section
Gain 29dB (20Hz-20kHz)
Input Sensitivity 840mV (Power Out = 70W into 8Ω)
Input impedance 15K // 100pF
Rated max power output THD < 1% 2 x 75W RMS (8Ω) , 2 x 115W (4Ω)
(Vmains = 230V , THD < 1%)
Peak output current +/- 15A
Frequency response +/- 0.1dB (10Hz – 20kHz)
+/- 3.0dB (1Hz – 100kHz)
Channel Imbalance < 0.2dB (10Hz – 20kHz)
Total harmonic distortion (THD) <0.002% (Power Out= 50W @ 1kHz, BW = 20Hz – 20kHz)
Signal-to-noise ratio > 107dB (BW = 20 – 20kHz )
>109dB(A-weighted BW = 20 – 20kHz)
Damping factor >100 (8Ω Load @ 1kHz)
Inputs 1 x RCA
Outputs Speaker Binding Post Terminals
Dimensions 80 x 444 x 330.3mm
Net weight 7.8kg
