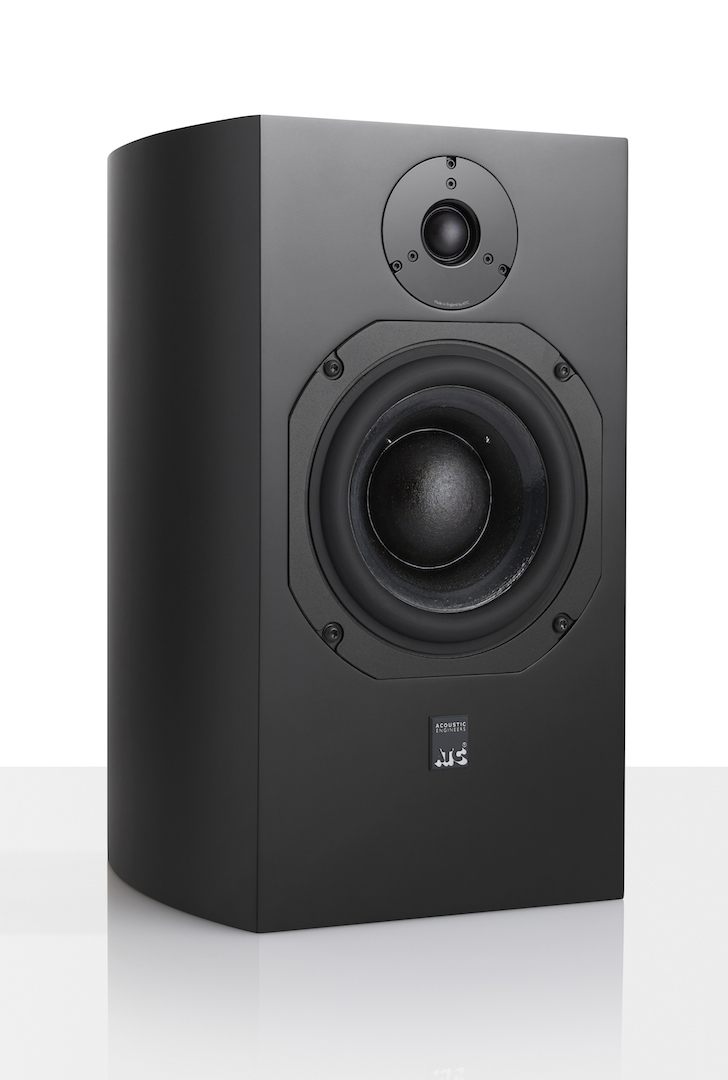

ATC SCM19 Satin Black (Ζεύγος)
New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.“SL” spec bass driver with 75mm integral soft dome.9kg optimised short-coil/long gap motor assembly.In-house, hand-wound precision flat wire coil.Flat impedance curve allowing easy load for amplifiers.6 year warranty.
Color
We support installment purchases using a debit card. For details call us Phone
After Sales Support
Supplier guarantee up toYears
Next to you since 1976
Over 46 years of experience!
Join us
Earn special offers
Overview

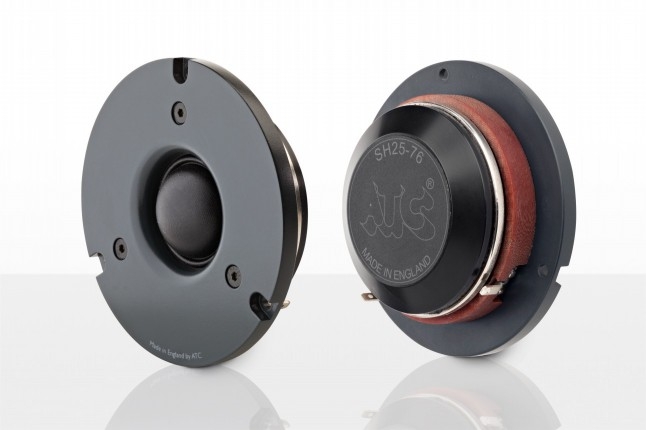

- New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.

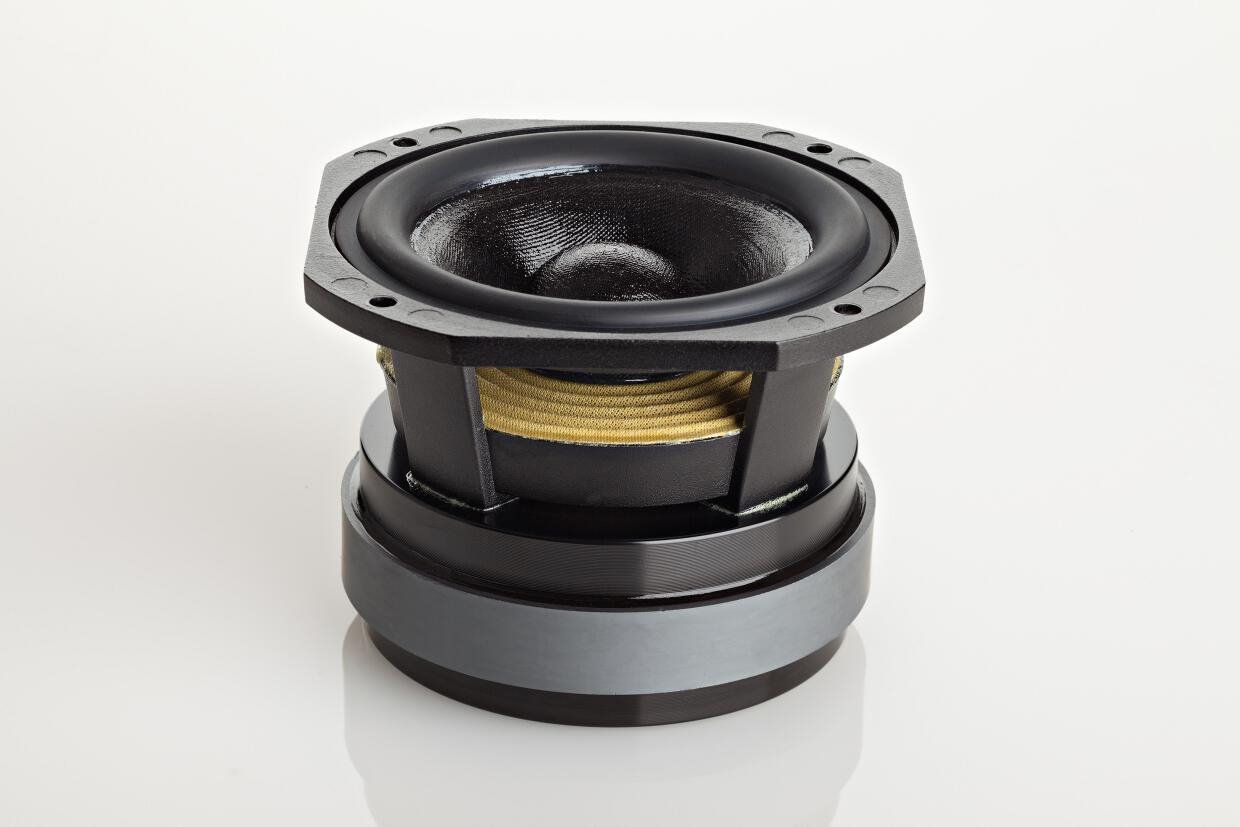

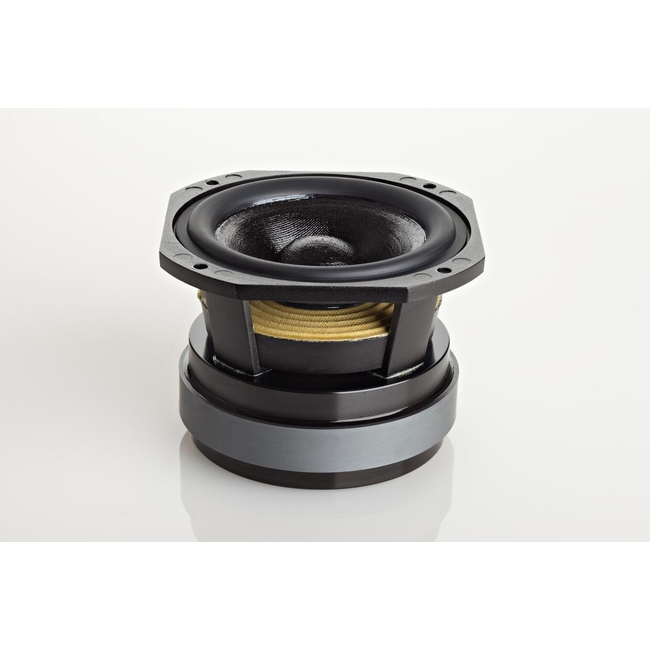

- “SL” spec bass driver with 75mm integral soft dome.
- 9kg optimised short-coil/long gap motor assembly.
- In-house, hand-wound precision flat wire coil.
- Flat impedance curve allowing easy load for amplifiers.
- 6 year warranty.
Superlative clarity; excellent phase coherence; sublime bass. Hi-Fi Choice Magazine, September 2014
Drivers: HF ATC 25mm Neodymium soft dome, Mid/LF ATC 150mm SL
Matched Response: ±0.5dB
Frequency Response (-6dB): 54Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 85dB @ 1W @ 1metre
Max SPL: 108dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequency: 2.5kHz
Connectors: Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 438x265x300mm (grill adds 28mm to depth)
Weight: 17.8kg
