SKU: 87737

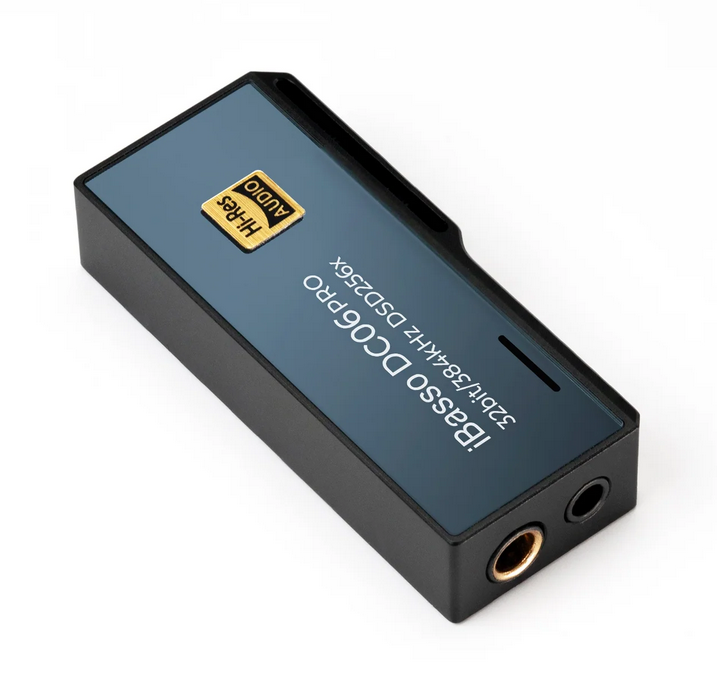

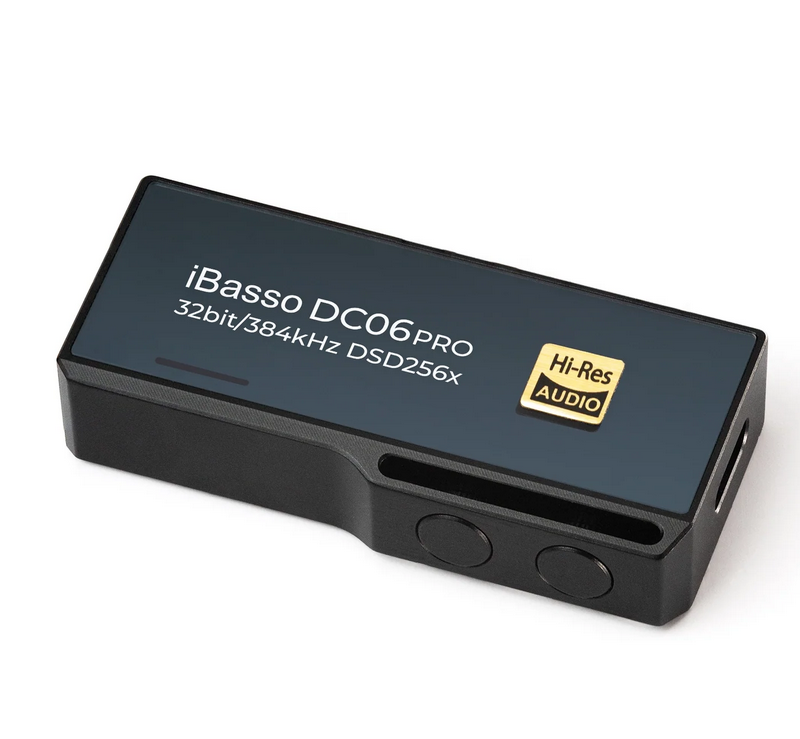

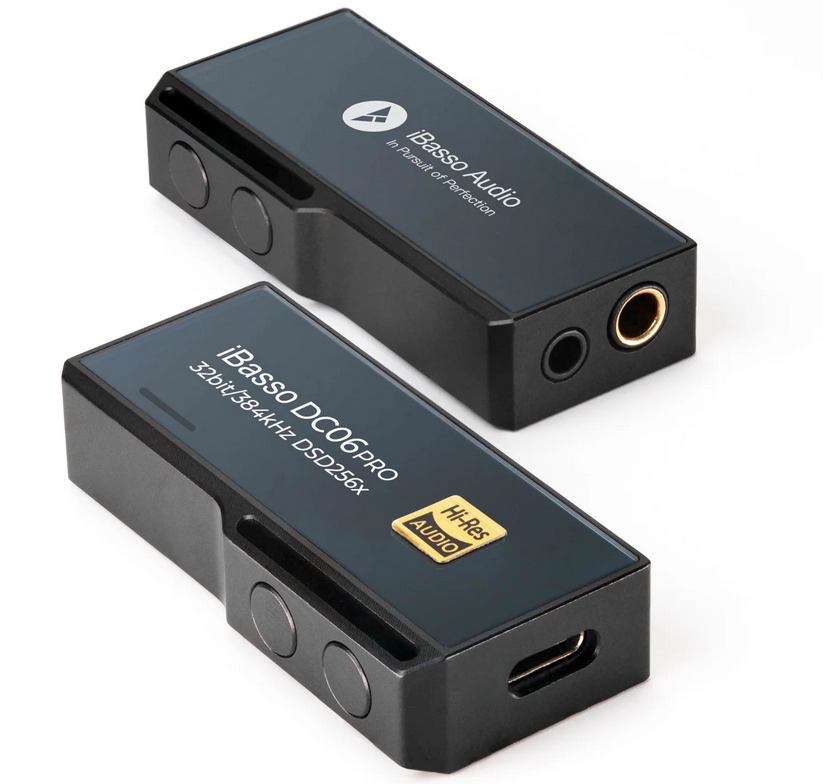

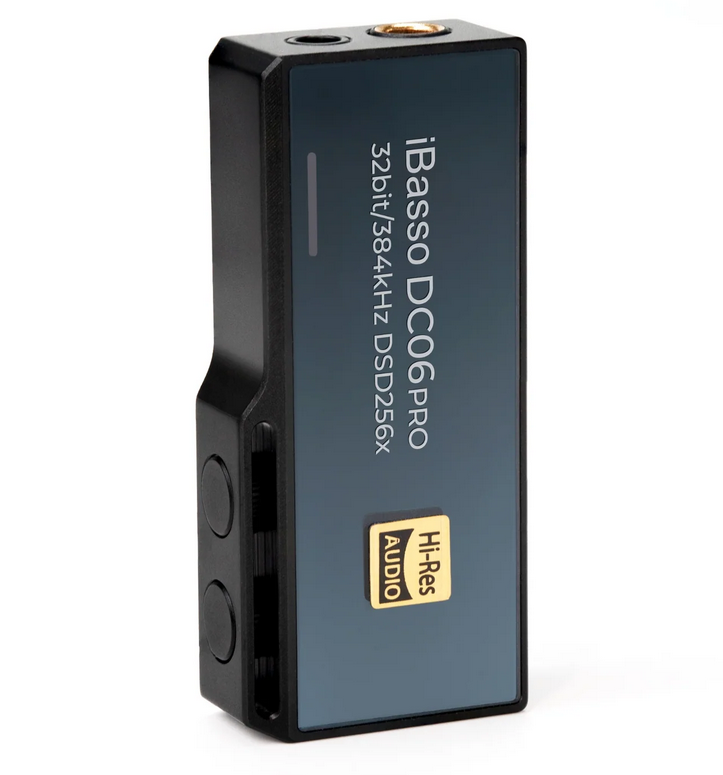

iBasso DC06 PRO (6971585541360)

Ένα νέο Hi-Res USB DAC/Amp με διπλό τσιπ ES9219C, εξόδους ακουστικών 3,5mm SE & 4,4mm Balanced και αποκλειστική τροφοδοσία ενισχυτή.
Η υλοποίηση των διπλών DAC προχωρά προς τα εμπρός. Αξιοποιώντας το πλήρες δυναμικό του Dual ES9219C το DC06PRO έχει κάνει σημαντικές προόδους στη χρήση των τσιπ ES9219C DAC χάρη σε ενδελεχή έρευνα, ανάπτυξη, αυστηρές δοκιμές και προσεκτικές συνεδρίες ακρόασης.
Παρά τη χρήση ακριβότερων εξαρτημάτων, καταφέραμε να διατηρήσουμε μια εξαιρετικά προσιτή τιμή χωρίς να κάνουμε συμβιβασμούς. Μέσω της εφαρμογής διπλών τσιπ DAC, επιτύχαμε μια αξιοσημείωτη αύξηση της ισχύος εξόδου σε σχέση με το συμπαγές μέγεθός του, ενώ ταυτόχρονα ελαχιστοποιήσαμε το επίπεδο θορύβου.
Η κατανάλωση ρεύματος της νέας γενιάς ESS DAC έχει εξαιρετική αναλογία προς την ισχύ εξόδου και η ποιότητα του ήχου παραμένει χωρίς συμβιβασμούς, παρέχοντας μια πλούσια και αυθεντική εμπειρία ήχου που μπορείτε να απολαύσετε σε καθημερινή βάση.



Out of stock
€134,00 Final Price
Notify me.
Do you have any questions or want to place a phone order? Call us at 2109401167
Buy Now Pay Later with the use of a debit card

We support installment purchases using a debit card. For details call us Phone

Type him postcode της περιοχής σας - ώστε να σας ενημερώσουμε για τους τρόπους αποστολής / παραλαβής. Δυνατότητα παραλαβής με BOX NOW
badge

After Sales Support

Supplier guarantee up toYears

star

Next to you since 1976

Over 46 years of experience!

group

Join us

Earn special offers

Alternative Suggestions
iFi Audio GO POD (5060738788538)
SKU: 79186
In Stock
€399,00
Shanling UP5
SKU: 53649
In Stock
€179,00
Fiio BTR5 Apple Edition (6953175790976)
SKU: 54088
In Stock
€159,99
Fiio BTR5 (6953175790945)
SKU: 44465
In Stock
€149,99
Fiio BTR7 type-c (6953175790990)
SKU: 59484
In Stock
€249,00
Τελευταία Τεμάχια
Fiio BTR7 lighting (6953175791041)
SKU: 59772
In Stock
€259,00
€243,00
iFi Audio hip-case 3 (5030738789238)
SKU: 96964
In Stock
€30,00
FiiO Q5
SKU: 0017150
In Stock
€364,00
iFi Audio GO bar 5060738784189
SKU: 59489
In Stock
€329,00
iFi Audio Go Blu Case Blue/Gray (5060738786442)
SKU: 78082
In Stock
€35,00
Τελευταία Τεμάχια
iFi Audio Micro iDSD Signature (5060738784080)
SKU: 48982
In Stock
€749,00
Shanling M6 (21) - 64GB
SKU: 57841
In Stock
€599,00
iFi Audio GO Blu  (5060738785230)
SKU: 53742
In Stock
€199,00
iFi Audio Go Bar KENSEI (5060738788514)
SKU: 93879
In Stock
€449,00
Τελευταία Τεμάχια
Shanling UA1s - Black
SKU: 69067
In Stock
€55,00
Fiio KA2 - Lighting - 4.4mm Black (6953175710356)
Fiio KA2 - Type C - 4.4mm Black (6953175710349)
SKU: 59555
In Stock
€74,20
Τελευταία Τεμάχια
Shanling UA3
SKU: 69068
In Stock
€120,00
SoundMagic A30 DAC ενισχυτής ακουστικών με USB C
Fiio Q3 (6953175750086)
SKU: 48566
In Stock
€169,99
iFi Audio Go Link (5060738786725)
SKU: 69203
In Stock
€65,00
Shanling UA4 - Titanium (6972835392022)
SKU: 84923
In Stock
€109,00
iFi Audio Go Link ΜΑΧ (5060738789269 )
SKU: 97012
In Stock
€85,00
iFi Hip Dac 3 (5060738787364)
SKU: 79881
In Stock
€199,00
€197,00

The AMP Section Utilizes Its Own Dedicated Power Supply - Low Noise Charge Pump, Synchronous DC-DC Converter, and LDO

In an exhilarating improvement, the DC06PRO incorporates advanced technology to create a separate power supply for the AMP section. This includes a synchronous DC-DC converter, a low noise charge pump chip, and an LDO. These implementations enable the AMP section to operate at its maximum capacity without any interference from the digital section. This enhances the dynamics, bass impact, and overall transparency of the sound.

FPGQ + NDK Femtosecond Oscillator

The DC06PRO utilizes our in-house developed FPHA algorithm. Achieving an impressively low jitter is made possible through the utilization of the NDK femtosecond oscillator, resulting in minimal distortion and a notable enhancement in the quality of the musical sound.

MQA 16x Hardware MQA Rendering

The DC06PRO has hardware for rendering of MQA. For the process, software unfolds 2 times and the on-board hardware of the DAC unfolds a further 9 times. iBasso software is certified, which means you can plug and play to decode and enjoy your MQA files to their full potential.

CNC Aluminum Case with Tempered Hardened Glass Panels

High-grade aluminum alloy is used for the CNC milling of the DC06PRO case. An open volume control feature implements a number of complex steps during CNC. The results are both extremely functional and visually appealing. The overall result of the tempered hardened glass panels is both aesthetic and quality enhancing in combination with the precise CNC case machining.

A Great UAC Companion App with Practical Features Are Already in Place

The iBasso UAC App has been fully upgraded to work with the DC06PRO, which provides:
-100 Steps of Hardware Volume
-2 Options for Digital Filters
-20 Step L/R Balance
-On/Off Power Saver

Detachable Cable - A Number of Cables Can Be Used

The DC06PRO utilizes a USB-C input and can be used with a number of cable types. A USB-A to USB-C cable converter is also provided allowing for use with most Android devices. A Lightning cable can also be used with the DC06PRO.

Specs

DAC Chipset
Dual ES9219C QUAD DAC+ Chips

PCM
up to 32bit/384kHz

DSD
Native DSD64, DSD128, DSD256

MQA
16X

Weight
20g

Output 4.4mm Balance / 3.5mm Single Ended

THD +N
0.00035% (600Ω load) 0.0005% (32Ω load) / 0.00056% (600Ω load) 0.0007% (32Ω load)

Output Voltage
3.2Vrms (32Ω load) 4Vrms (300Ω load) / 2Vrms (32Ω load)

S/N
123dBA / 120dBA

Frequency Response
20Hz~40kHz -0.5dB / 20Hz~40kHz -0.5dB

Output Impedance
<0.5Ω / <0.3Ω
