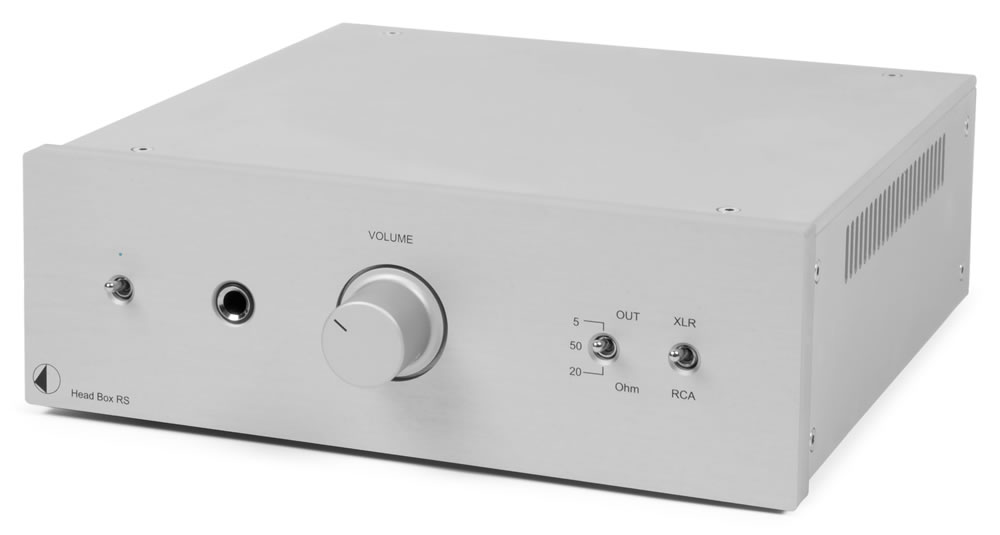

Pro-Ject Head Box RS Silver
Pro-Ject Head Box RS Silver

Pro-Ject Head Box RS Silver

Head Box RS is a reference quality headphone amplifier with fully balanced tube input stage (double triode tube 6922) and single ended, class A „FET (Field Effect Transistor)“ output stage. It offers balanced and unbalanced input as well as balanced and un-balanced by-pass connectors for using the pass-through input signal with other components. Volume control consists of a precise volume regulator with matched resistance between left and right channel. A special output impedance selector allows to adjust output impedance in three steps 5, 20 and 50 ohms to achieve better im-pedance matching between amplifier and headphones. Some experiments with different positions of output impedance selector are highly recommended to get the ultimate sound experience for your headphone. An advanced multi-stage power supply with four different output voltages is used to achieve the best possible S/N ratio for out-standing reproduction of detail, dynamics and imaging with any dynamic headphone

Κατόπιν παραγγελίας - Σύμφωνα με την αποθήκη του προμηθευτή
€849,00 Final Price
Add to cart
Do you have any questions or want to place a phone order? Call us at 2109401167
Buy Now Pay Later with the use of a debit card

We support installment purchases using a debit card. For details call us Phone

Free shipping all over Greece!

badge

After Sales Support

Supplier guarantee up toYears

star

Next to you since 1976

Over 46 years of experience!

group

Join us

Earn special offers

Alternative Suggestions
Τελευταία Τεμάχια
Rega EAR
SKU: 0010662
In Stock
€240,00
iFi Audio ZEN CAN Signature Standard (5060738787920)
iFi Audio ZEN Air Can (5060738786756)
SKU: 59073
In Stock
€105,00

• Fully balanced double mono design

• Tube input stage

• Class-A FET output stage

• Switchable output impedance for ultimate performance

• Superior low distortion

• Low noise components for ultimate dynamic & detail

• Output: 6,3mm socket

• Full metal casing in silver or black

• Optional Upgrade: Linear power supply Power Box RS Uni 1 (or 4) for further improved sound quality



Technical data

Pro-Ject Head Box RS

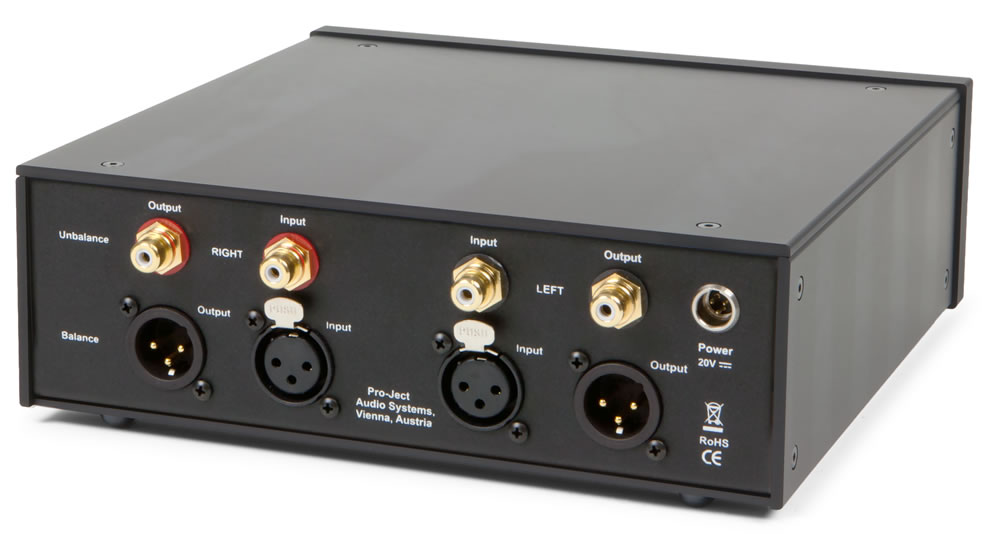

Line-level input/output1 pair RCA/phono & 1 pair XLR each
Headphone jack3-pole 1/4 ‘‘ (6,3mm Ø)
Power output350mW / 32 ohms, 60 mW / 300 ohms
Crosstalk-58dB
Signal-to-noise-99dB
Frequency response30Hz – 20kHz/(+0,2dB; -0,05dB)
THD (IMD)0,17% (XLR in, output impedance setting 5 ohms, load 32 ohms)
Gain9dB
Outboard power supply20V/3A DC suitable for your country's mains supply
Power consumption1,3A DC
Dimensions W x H x D206 x 72 x 200 (209) mm (D with sockets)
Weight2150g (without power supply)
