IFI Audio ZEN Can 3 (5060738788767)
As the successor to the ZEN Can 2, IfI Audio's ZEN Can 3 benefits from an improved look and a number of additional features. This Class A headphone amplifier features a purely analog design, with no DSP for a more natural sound, and extended equalization parameters. In addition to the Xbass + and Xspace modes, it now features equalization modes for video games, movies and XMEMS micro-speakers. The ZEN CAN 3 has been specially designed to power a wide range of headphones and IEMs on the market, thanks to its power of up to 2000mW on its balanced output. In addition, a gain adjustment potentiometer provides 4 levels of gain adjustment (0dB/6dB/12dB/18dB), while a second potentiometer lets you select the input source. This headphone amplifier features 3 analog inputs: stereo RCA, 3.5mm jack and balanced 4.4mm jack. In addition to the two headphone outputs on the front panel, it features a balanced stereo 4.4mm jack line output for use as a preamplifier.
We support installment purchases using a debit card. For details call us Phone
Free shipping all over Greece!
After Sales Support
Supplier guarantee up toYears
Next to you since 1976
Over 46 years of experience!
Join us
Earn special offers
IFI Audio ZEN Can 3: a powerful headphone amplifier

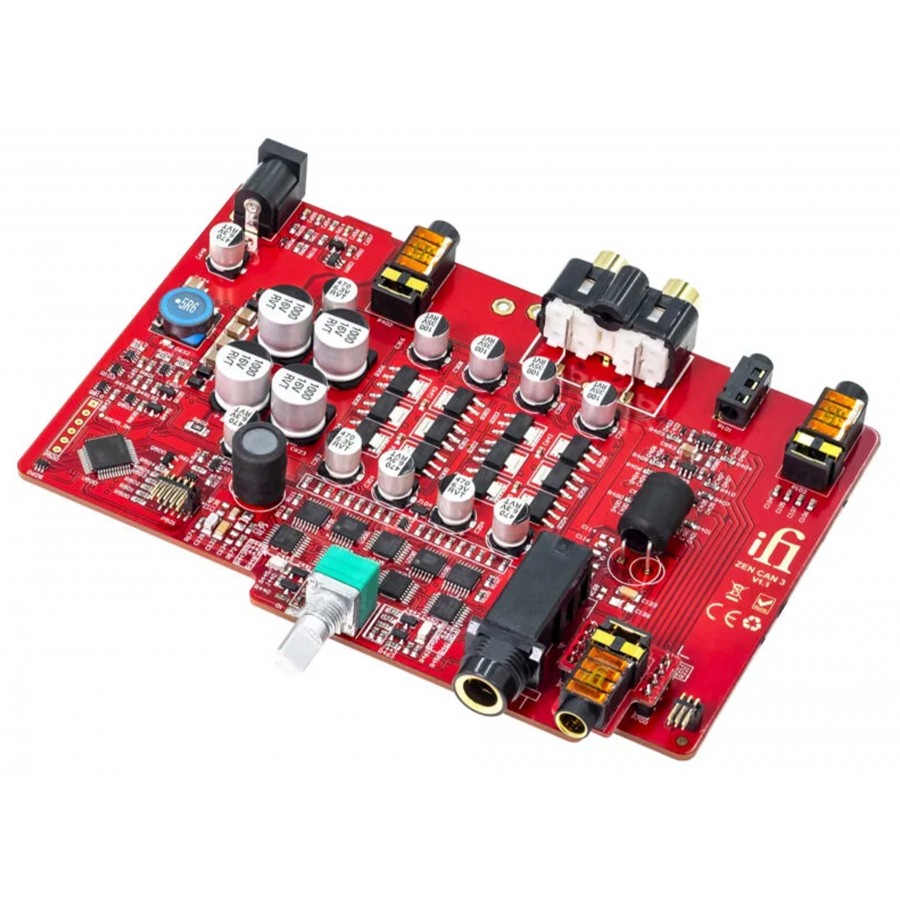

The iFi Audio ZEN Can 3, thanks to its Class A discrete component amplification circuit, is capable of delivering up to 2000mW @ 64 ohm on its balanced headphone output, and up to 1600mW @ 32 ohm on its 6.35mm jack output. This is complemented by a 4-level gain control for adaptation to all headphones and in-ear monitors on the market. Despite its high output power, this headphone amplifier manages to maintain a THD < 0.006% and an SNR greater than 119dBA. The ZEN Can 3 amplifier stage uses proprietary iFi/AMR "OV" series OPAs.
IFI Audio ZEN Can 3: 5 different equalization settings
The ZEN Can 3 is a major improvement, with new equalization parameters. The main new feature is the xMEMS mode, enabling the balanced output to reach an output voltage of 21Vpp.
- Xbass + : compensates for the loss of bass on open headphones.
- Xspace : enlarges the soundstage.
- Gaming : enhances detail so you can hear even the most subtle sounds.
- Film : ensures clear dialogue.
- xMEMS : guarantees compatibility with xMEMS utrasonic earphones transducer.
iFi Audio ZEN Can 3 overview

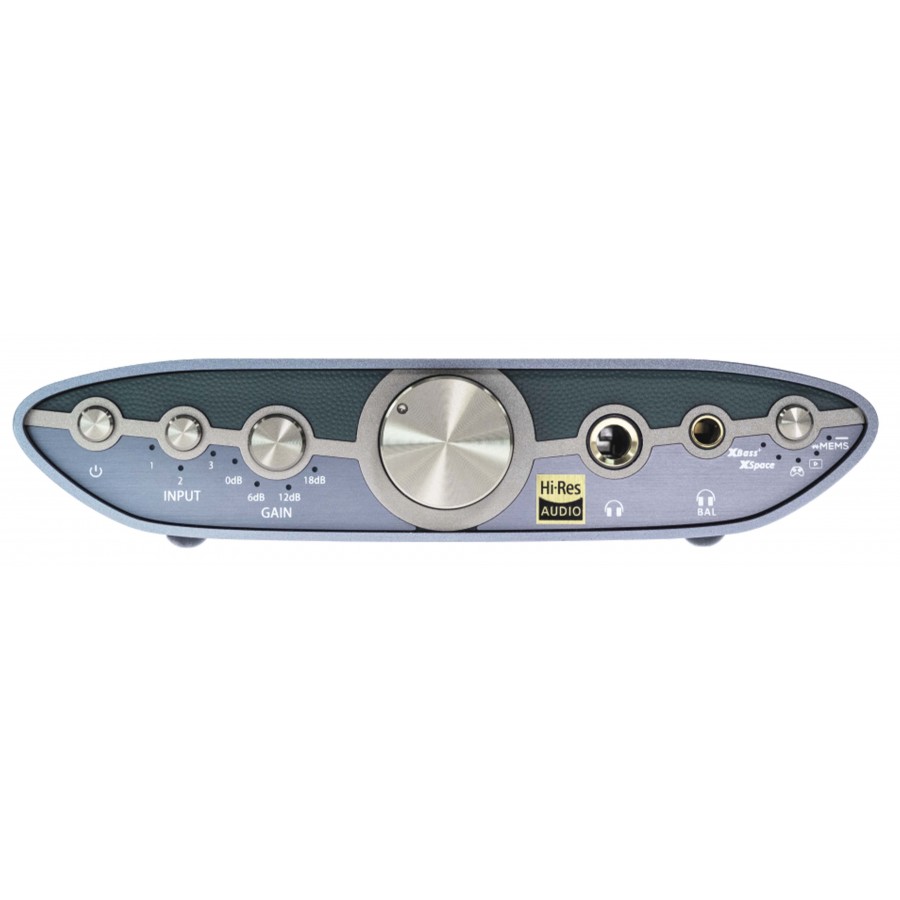

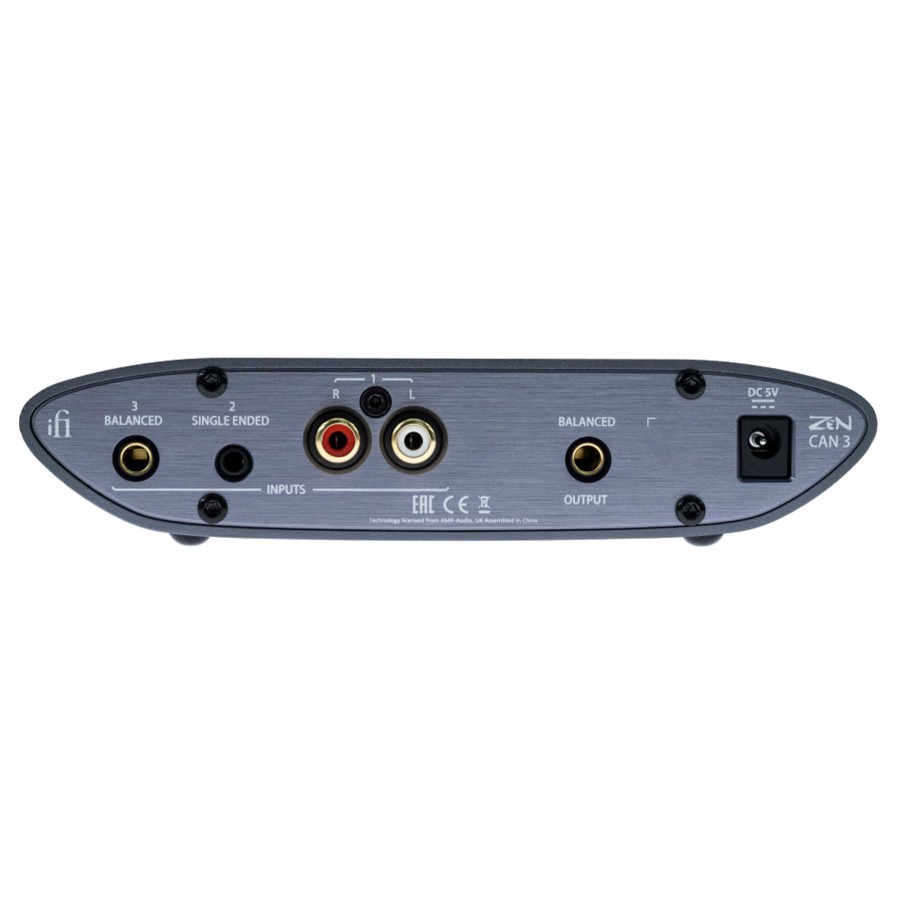

1 ON/OFF button 2 Source selector 3 Gain adjustment 4 Volume control 5 6.35mm headphone output 6 Balanced 4.4mm headphone output 7 Equalization setting 8 Balanced 4.4mm stereo jack input 9 3.5mm stereo jack input 10 RCA stereo input 11 Balanced 4.4mm stereo jack line output 12 DC jack power port
Technical characteristics
Specifications
Product type Headphone amplifie
rAmplification type Class
AInputs
1x RCA stereo
1x 3.5mm jack
1x Balanced 4.4mm jackOutputs1x 6.35mm headphone output
1x Balanced 4.4mm headphone output
1x Balanced 4.4mm stereo jack output
RMS headphone output power
6.35mm jack: up to 1600mW RMS @ 32 ohms (>7.2V)
4.4mm jack: up to 2000mW RMS @ 64 ohms (>11.5V)
Headphone output impedance
6.35mm jack: < 1 Ohms
4.4mm jack: < 2 Ohms
Max. headphone output power
Jack 6.35mm: 98mW @ 600 Ohms (>7.6V) / 1600W @ 32 Ohms (>7.2V)
Jack 4.4mm: 385mW @ 600 Ohms (>15.1V) / 1,200mW @ 32 Ohms (>6.2V)XMEMS
Jack 4.4mm: >21Vpp, 22 Ohms, 11V DC biasTHD< 0.006%
Frequency response10Hz-200kHz (-3dB)SNR>119dBA (@ 0dBFS)
Gain adjustment0dB/6dB/12dB/18dBLINE
OUTPUT SPECIFICATION
Output impedance<200 Ohms
Output level
4Vrms (0dB, 200kOhm load)
SNR≥125dB (7.3V, 4.4mm jack input, 0dB, @ 200kOhm)
DNR≥119dB(A)THD+N0.006% (0dB, 200kOhm load)
General
Power supply
5V 2.5A DC
Power consumption
No signal: 5W
Operating: 13W
Dimensions158 x 35 x 117mm
Weight495g
Color
Grey

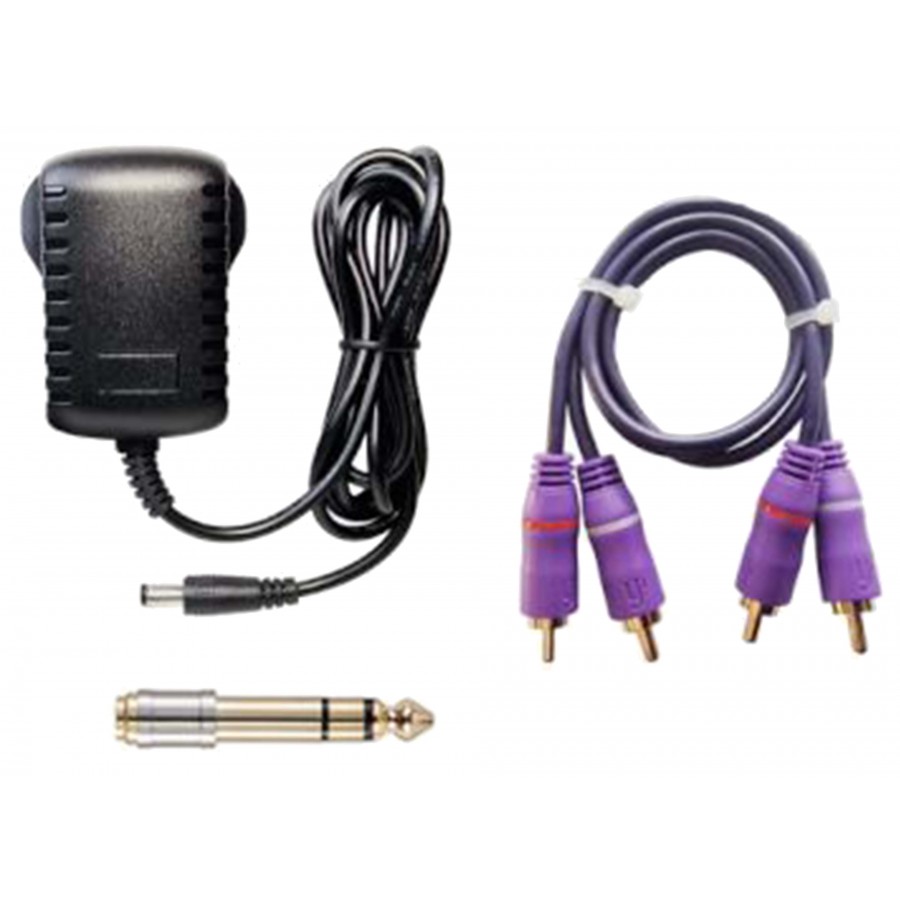

Package
1x iFi Audio ZEN Can 3 headphone amplifier
1x Pair of RCA interconnect cables
1x 3.5mm jack to 6.35mm jack adapter
1x Mains adapter
