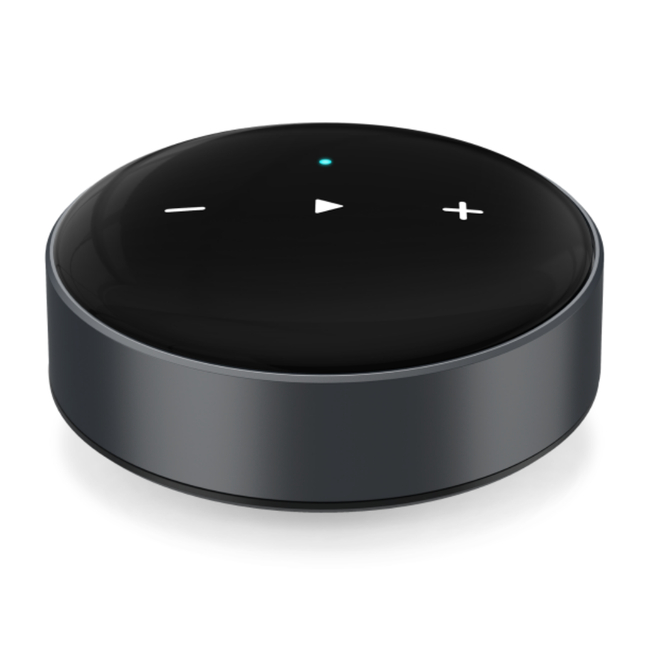

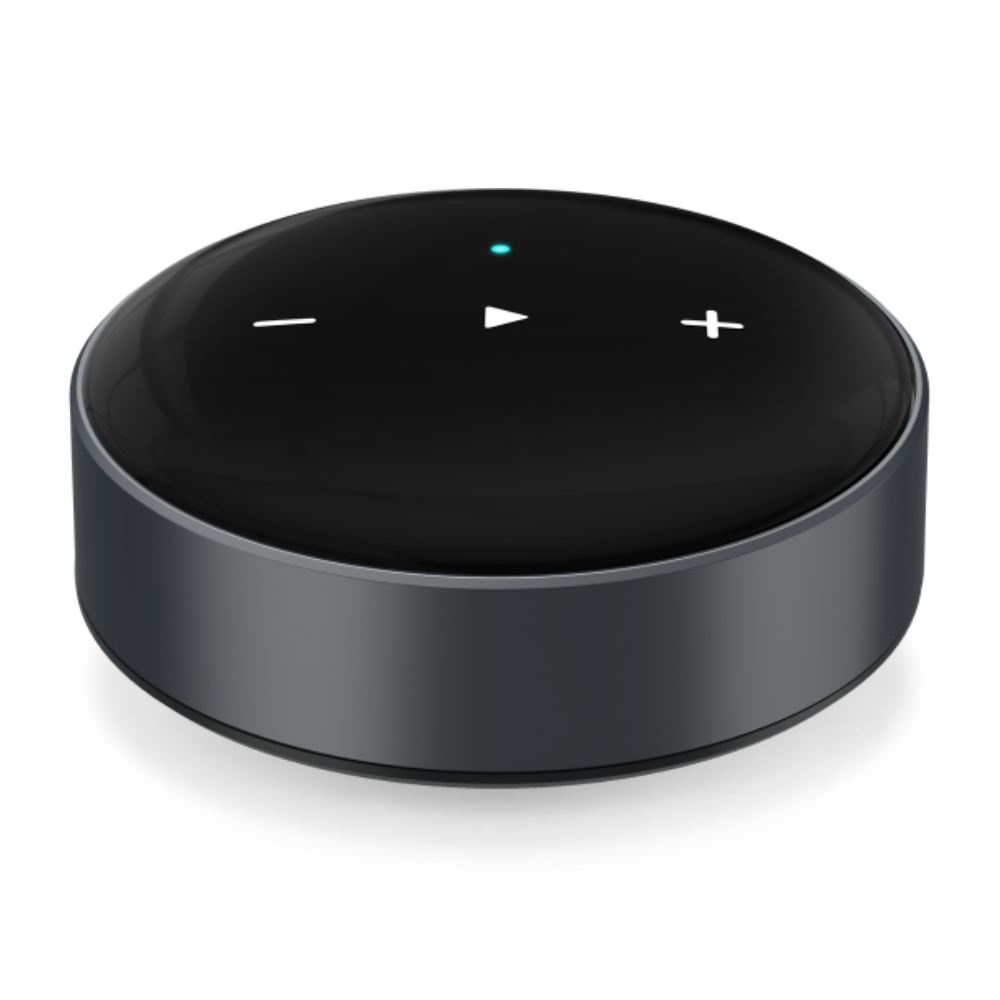

Digital Hub for Your Music

Super easy setup

WiiM Mini will pop up automatically in the WiiM Home app. Follow the in-app guide

and start streaming music in less than 2 minutes.

Stream Hi-Res audio up to 192 kHz/24 bit.

WiiM Mini supports up to 192kHz, 24-bit audio output. That's the same as an artist's recording in the studio.

The integrated TI stereo DAC provides high-quality analog audio output with 106-dB SNR, dynamic range, and -92dB THD+N performance.

All your content in one app

We support many popular music streaming services in our WiiM Home app with more to come. Or connect to your NAS or local files to stream your favorite music.

Play music everywhere with multi-room audio.

Building a wireless multiroom system has never been easier. Group WiiM Mini with other AirPlay 2 speakers, Alexa-enabled devices, or another WiiM Minis to have a multi-room/synchronized audio experience.

Automate your routines

Make your life easier by automating your routines. For your sleeping and wake-up routines, create a routine to wake up or fall asleep to your favorite music, station, or podcasts. Or, use your Alexa to create routines.

High-Res audio

Offering more streaming services and audio content that incorporate MP3 quality, lossless audio, or immersive sound technologies for their listeners. WiiM devices provide the capability to play Hi-Res lossless audio contents from Spotify, Amazon Music, TIDAL, Deezer, Qobuz and more. It supports up to 192kHz, 24-bit audio output which is the same as artist's recording in the studio . The integrated TI stereo DAC provides the high quality analog audio output with the 106-dB SNR, dynamic range and -92dB THD+N performance, outstanding in all audio categories.

Multi-room and stereo pairing

Use the WiiM Home app to play perfect audio-synchronized music throughout your home. With our hardware, algorithm, and software optimization, we can achieve less than 150uS (0.00015s) synchronization accuracy among speakers as long as your speakers are in the same wireless network.

Gapless Playback

Precise gapless playback is important to your listening experience. With precise gapless playback, the playback timing is guaranteed to be identical to the source. There are no gaps or overlaps (crossfading) between successive tracks. The gap will be very noticeable in " continuous " music such as live concert recordings, some classical music, etc.

Whereas various software, firmware, and hardware components may add substantial delay associated with starting the playback of the track, our player uses two decoders to remove the extra samples at the beginning and end of each file and combines them. This works for all the supported music services and music in your phone or local network.

Χαρακτηριστικά

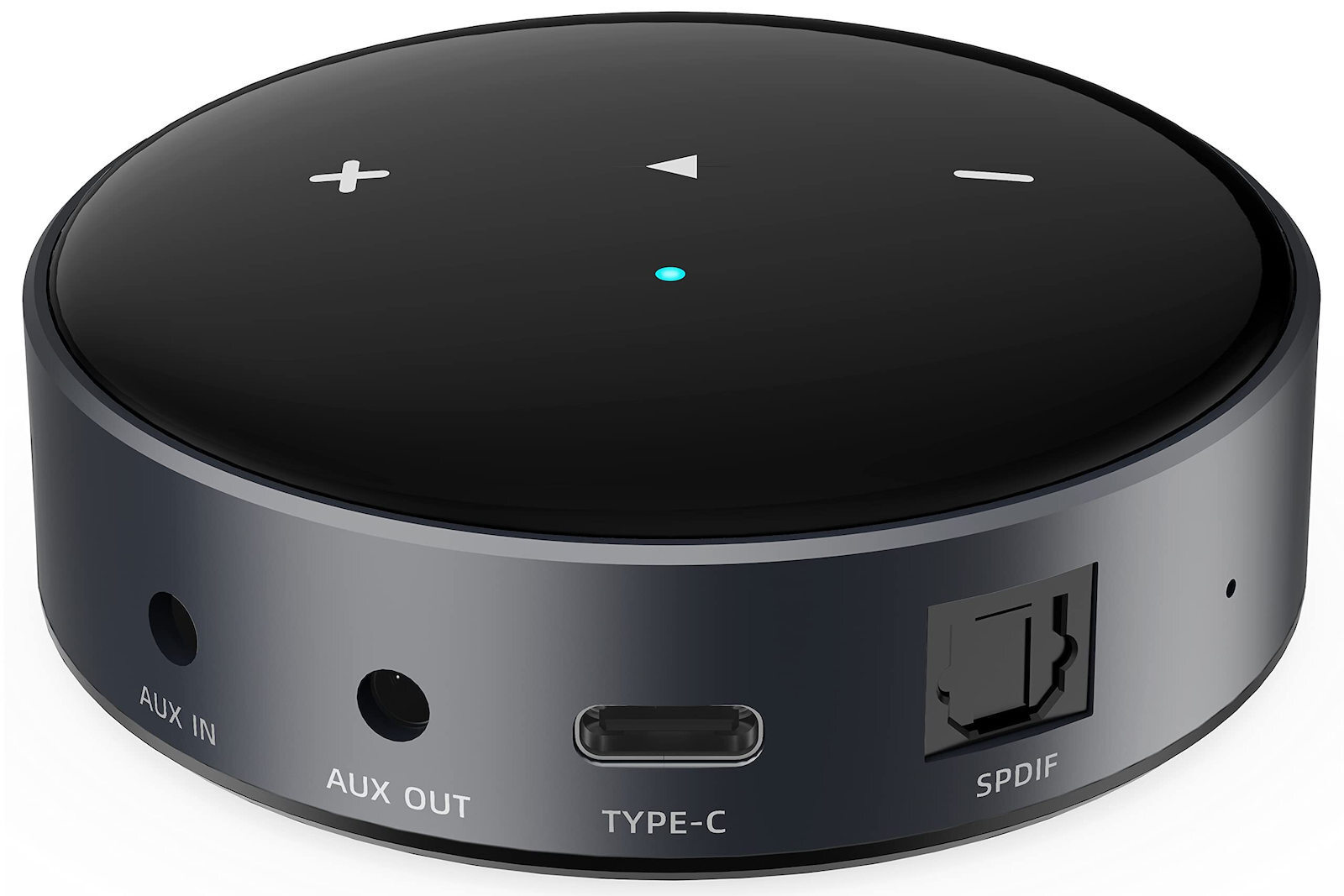

Inputs

• WiFi
• Bluetooth 5.0
• 1x Jack 3.5mm

Outputs

• 1x Jack 3.5mm
• 1x Optical Toslink

Wirelles connectivity

• WiFi EEE 802.11a/b/g/n/ac 2.4G
• WiFi EEE 802.11a/n/ac 1x1 5G
• Bluetooth 5.0
• Line input level 1Vrms

Output power

• Line in to line out : 2Vrms
• Bluetooth to line out : 2Vrms
• Line in to SPDIF out: -3dBFS
• Bluetooth to SPDIF out: 0dBFS
• THD+N Line in to line out : 0.009%
• Bluetooth to line out : 0.05%
• Line in to SPDIF out : 0.005%
• Bluetooth to SPDIF out : 0.005%
• SNR Line in to line out : 102dB
• Bluetooth to line out : 103dB
• Line in to SPDIF out : 105dB
• Bluetooth to SPDIF out : 297dB
• Crosstalk Line in to line out : -106dB
• Bluetooth to line out : -107dB
• Line in to SPDIF out : -103dB
• Bluetooth to SPDIF out : -364dB

Dynamic range

• Line in to line out : 96dB
• Bluetooth to line out : 121dB
• Entrée ligne vers sortie SPDIF : 97dB
• Bluetooth to SPDIF out : 213dB
