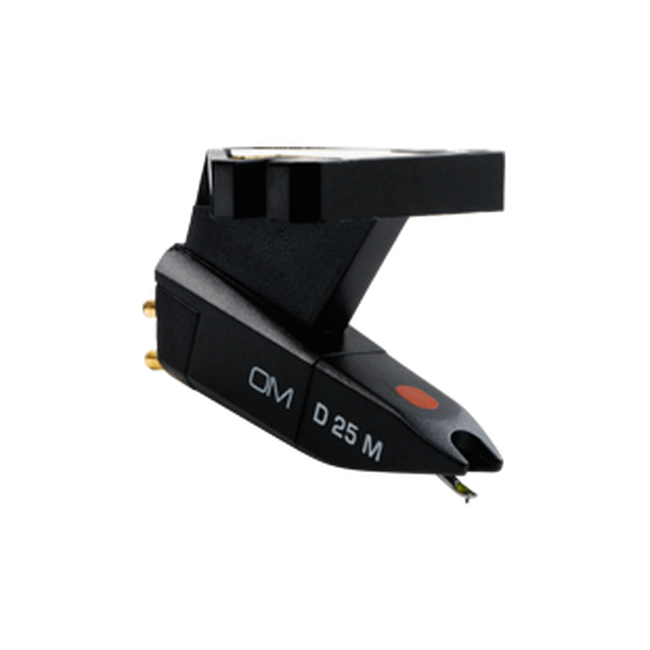

Ortofon OM D25M
The OM D25M is a magnetic cartridge (MM) with a spherical stylus that is an optimal solution for playing mono 25µm microgroove vinyl records, which require a slightly larger stylus profile for best sound reproduction.
Υποστηρίζουμε αγορές με δόσεις με χρήση χρεωστικής κάρτας. Για λεπτομέρειες καλέστε μας τηλέφωνο
Υποστήριξη μετά την πώληση
Εγγύηση προμηθευτή έωςέτη
Δίπλα σας από το 1976
Πάνω από 46 χρόνια εμπειρίας!
Γίνετε μέλος μας
Κερδίστε ειδικές προσφορές
The OM D25M is a magnetic cartridge (MM) with a spherical stylus that is an optimal solution for playing mono 25µm microgroove vinyl records, which require a slightly larger stylus profile for best sound reproduction.
| Technical data | |
| Output voltage at 1000 Hz, 5cm/sec. | 4 mV, Lateral (mono) |
| Frequency range at - 3dB | 20-20.000 Hz |
| Frequency response | 20-18.000 Hz +3 / - 2 dB |
| Tracking ability at 315Hz at recommended tracking force *) | > 70 µm |
| Compliance, dynamic, lateral | 7 µm / mN |
| Stylus type | Spherical |
| Stylus tip radius | R 25 µm |
| Tracking force range | 2,0-3,0 g (20-30 mN) |
| Tracking force, recommended | 2,5 g (25 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 750 Ohm |
| Internal inductance | 450 mH |
| Recommended load resistance | 47 kOhm |
| Recommended load capacitance | 200-600 pF |
| Cartridge colour, body/stylus | Black/Black |
| Cartridge weight | 5 g |
