Here are the main highlights of the Eversolo DMP-A10:
- ES9039PRO DAC and XMOS XU316 USB interface
- Supports up to PCM 32bit 768kHz, DSD512
- Bluetooth 5.0: SBC, AAC, aptX, aptX LL, aptX HD and LDAC
- Preamplifier stage with R2R volume control
- Display potentiometer with custom interface
- 4 GB DDR RAM + 64 GB internal memory (plus two external SSD slots up to 4TO)
- Lossless CD and metadata ripping via USB
- Advanced room correction
- Dual subwoofer output

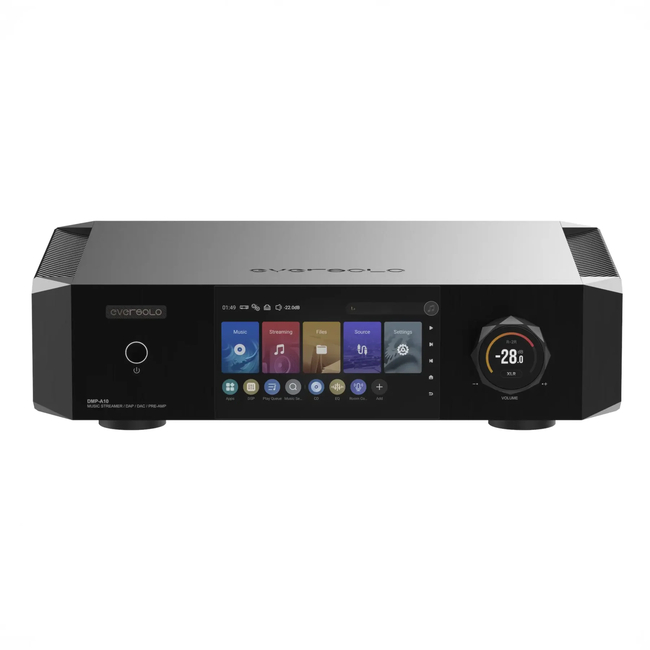

Eversolo DMP-A10: a high-end streamer
The DMP-A10 not only supports numerous local file formats (MP3, WMA, FLAC, ALAC, AAC, OGG, WAV, AIFF, DFF, DSF, DSD512), but also provides access to numerous streaming platforms such as Qobuz, Deezer, Tidal, Amazon Music and Apple Music. All from the 6.5” color LCD touchscreen on the front panel. The interface is highly intuitive, and the EverSolo Control application also enables remote control of the device.
Eversolo DMP-A10: high-performance DAC
The DAC section of the Eversolo DMP-A10 is based on an ESS Technology ES9039PRO chip that significantly reduces distortion and noise levels. It also enables the DMP-A10 to handle high-resolution streams up to PCM 32bit 768kHz and native DSD512, and to process them with great precision.
Eversolo DMP-A10: XMOS XU-316 interface
The third-generation XMOS XU-316 USB interface offers decoding of high-resolution streams via the DMP-A10's USB input. A true CPU, it also enables the DMP-A10 to support PCM 24bit 192kHz and DSD DoP64 streams via its Toslink optical and coaxial SPDIF inputs.
Eversolo DMP-A10: advanced storage
The DMP-A10 is equipped with 4GB of DDR RAM + 64GB of internal memory, enabling it to store numerous CD-quality files. Using this internal memory is extremely simple, as all you have to do is connect a hard disk and copy and paste via the network drive interface. This means there's no need to be connected to a computer. Like the DMP-A8, it also features an external hard drive slot. But this time it's not one but 2 external 4TB SSD hard drives that can be supported by the DMP-A10.
Eversolo DMP-A10: CD ripper/player
Using an external USB CD drive, the DMP-A10 can not only play CDs, but also rip them, thanks to its internal memory and the integrated Eversolo application. CD copying is lossless, thanks to sophisticated data processing with error correction. CD metadata is also copied (cover art, titles, authors, etc.).
Eversolo DMP-A10: Bluetooth 5.0
A Qualcomm QCC5125 Bluetooth receiver chip makes it compatible with SBC, AAC, aptX, aptX LL, aptX HD and LDAC high-definition codecs for the most reliable and stable level of wireless transmission.
Eversolo DMP-A10: OCXO clock
Inside the DMP-A10 are two ultra-high-precision OCXO clock oscillators for flawless signal processing, whatever the recording resolution. The masterpieces of the DMP-A10, these clock oscillators are extremely precise, preventing any fluctuation in signal processing, and therefore ensuring low jitter.
Eversolo DMP-A10: High-end preamplification and R2R volume control
The DMP-A10's preamplifier stage features R2R volume control, made up of precision resistors and relays. These components ensure precise volume control. In fact, volume control is performed by 64 relay microphones, eliminating any distortion or noise present in the analog signal.
DMP-A10: dual subwoofer outputs
Two subwoofer outputs offer the possibility of an immersive installation. These subwoofer outputs feature independent adjustment of gain, crossover frequency and delay for perfect adjustment. These outputs can also be disabled by selecting "MIXER" or "STEREO" mode.
The subwoofer function is only available for PCM signals below 192KHz.
DMP-A10: advanced EQ control
The DMP-A10 is equipped with a 10-band PEQ (parametric equalizer) module, allowing precise adjustment of specific frequencies, gain and Q factors, which considerably improves sound quality. Thanks to fine-tuning of the PEQ, the DMP-A10 guarantees a natural, pleasant sound. It also supports FIR filter imports, volume control and dynamic compression.
Eversolo DMP-A10: dual linear power supplies
Eversolo has equipped its DMP-A10 with a dual power supply design. This configuration consists of a toroidal transformer and a low-noise linear power supply. This separates the audio circuits from the DMP-A10's system circuits to avoid interference.
DMP-A10 overview
1Switch on / power supply IEC2Trigger IN/OUT3Digital outputs43x Antenna connector5Ground6SFP fiber/ RJ45 ethernet port72x USB-A 3.0 port8Digital inputs9Analog inputs10Analog inputs
Specifications
- Material: Aluminum alloy
- Display: 6.5" LCD touchscreen
- DAC: ES9039Pro | Supports up to stereo DSD512 Native + PCM 768KHz 32-bit
- Audio Processor: XMOS XU316
- Storage: 4G DDR4+64G eMMC
- SSD: M.2 NVMe 2280 protocol, up to 4TB SSD
- USB Ports: (x2) USB-A 3.0
- Ethernet: RJ-45(10/100/1000Mbps)
- SFP Fiber Network: Supports single-mode single-fiber, single-mode dual-fiber optical modules, as well as SFP electrical port modules
- WiFi: 2.4G+5G
- Music Service: TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, Deezer etc.
- Streaming: Roon Ready, TIDAL Connect, WebDav, UPnP, DLNA etc.
- Bluetooth Input: BT 5.0, supports SBC/AAC
- USB-B Audio Input: Windows(10, 11), Mac, Android, iOS | Supports up to stereo DSD512, PCM 768KHz 32Bit
- Analog Input: XLR (BAL)+ RCA (pre-input) | Input range: RCA MAX 2.5 Vrms, XLR MAX 5 Vrms
- Optical + Coaxial I/O: Supports up to stereo PCM 192KHz 24Bit, DSD64 Dop
- ARC Input: Supports up to stereo PCM 192KHz 24Bit
- USB Audio: Supports up to stereo DSD512 Native, PCM 768KHz 32Bit
- (Requires UAC compliant DAC devices)
- Analog Output: XLR BAL + RCA (Pre-out)
- Control Methods: On-screen touch, Android/iPhone/iPad APP control, remote
- XLR OutputOutput Level: 4.2V
- Frequency Response: 20Hz~20KHz (±0.15dB)
- THD+N: <0.000078% (-122dB)
- Dynamic Range: >130dB
- SNR: >130dB
- Crosstalk: >-123dB
- RCA OutputOutput Level: 2.1V
- Frequency Response: 20Hz~20KHz (±0.15dB)
- THD+N: <0.00009% (-121dB)
- Dynamic Range: > 129dB
- SNR: > 129dB
- Crosstalk: >-122dB
- Power Supply: AC 110~240V 50/60Hz
- Rated Power: 30W
- Dimensions: 430 x 310 x 117mm
In the Box
- DMP-A10 Streamer
- Power cable
- Trigger cable
- Remote control
- (x3) Antenna
- User manual
