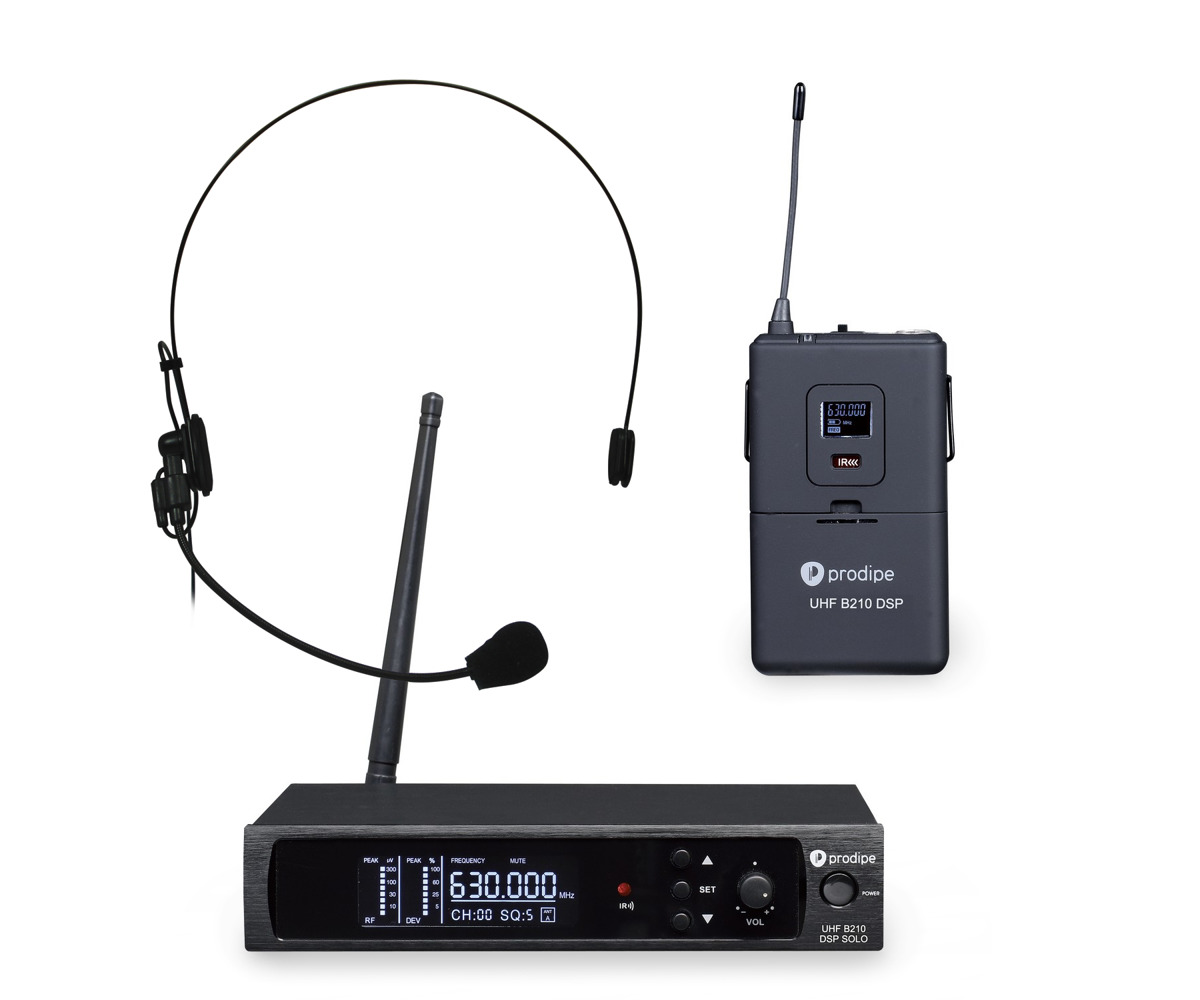

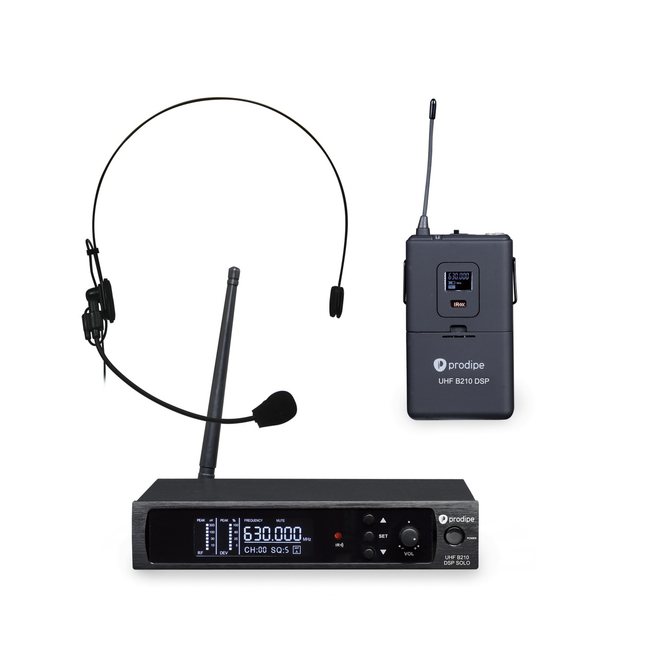

Use the new UHF B210 DSP bodypacks, Digital Signal Processor (DSP) technology equipped, to reproduce the musicality of your instruments and turn wireless into wired!

The new Prodipe headset mic is specially designed for people on the move.

It adapts perfectly to your morphology. Comfortable and light, it boasts a tailor-made cardioid capsule for singing and vocals.

Features:

• Adjustable headset mic

• DSP circuit

• Automatic IR search and selection of 100 available UHF frequencies

• Mini XLR connections on the UHF B210 DSP bodypack

• 1 balanced XLR output + 1 unbalanced Jack output.

• 8 B210 DSP systems can be used simultaneously

Specifications:

Microphone:

• Type: Electret condenser

• Directivity: Cardioid

• Sensitivity: -45dB 3dB (0dB=1V/Pa - 1KHz)

• Frequency response: 100HZ - 12,5 KHz

• Output impedance: 2,2KΩ (to 1KHz)

• Cable lenght:1m

Main functions:

• Tranmission:UHF

• Bandwith: 630 - 680MHz

• Frequencies: 100

• Dynamic range: >90dB

• Harmonic distorsion: <0.1%

• Frequency response: 30Hz - 20KHz

• Range: 60m

Transmitter:

• Power consumption: 10mW

• Modulation: FM

• Power source:LR6 (AA) 1.5V 2 (approx. 8h)

Receiver:

• Power supply: AC100~240V (50-60Hz)

• Voltage: 12V

• S/N Ratio: >96dB

• RX Sensitivity: <-94dBm

• Unbalanced audio output: 6.35mm Jack

• Balanced audio output: XLR

• Κατασκευαστής : Prodipe
• Supplier Code : APA2018-24359
