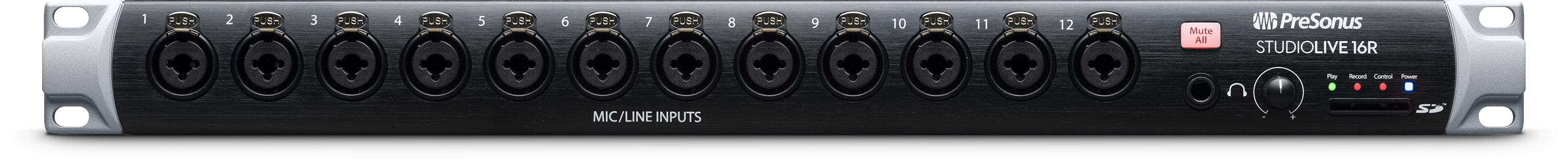

Presonus StudioLive 16R Series III
The perfect partner for a StudioLive Series III console.
The StudioLive 16R Series III rack mixer is a perfect partner for yourStudioLive Series III console/recorder, serving as either a simple stage box or a combination stage box and monitor mixer. Since Series III rack mixers and consoles can network using AVB, you can connect your StudioLive 16R to a Series III front-of-house console with one lightweight CAT5e or CAT6 Ethernet cable, eliminating the need for a heavy, expensive copper snake—and the signal degradation that goes with long analog cable runs.
You can even remote control the StudioLive 16R’s preamps and phantom power from your networked Series III console. In stage box + monitor mixer mode, the StudioLive 16R not only serves as an excellent networked stage box, it is a full blown monitor mixer with far more processing and mixing power than any mixer in its class—all packed into just one rackspace. (1U).
The most powerful rack mixer in its class.
When we say the StudioLive Series III stage boxes and rack mixers are by far the most powerful rackmount digital mixers in their class, that’s no idle claim. The result of ten years of R&D, third-generation StudioLive Series III rack mixers are fully recallable, including remote-controlled XMAX preamps.
Yet despite their extensive features, StudioLive Series III rack mixers actually improve upon PreSonus’ legendary ease of use while letting you customize their workflow and operations in software to fit the way you work. The coveted StudioLive sound is better than ever, including third-generation Fat Channel processing, re-engineered from the ground up, and vintage-style EQs and compressors.
Add built-in AVB networking, multitrack recording via USB 2.0 and AVB, onboard stereo recording to SD Card, and a complete suite of software, and you have a mixing and recording powerhouse that’s equally formidable as a stage box/monitor mixer, as a rackmount front-of-house mixer controlled from a touchscreen computer or tablet, and as the heart of your studio.
A third-generation Fat Channel.
StudioLive Series III rack mixers boast the same third-generation Fat Channel processing found in StudioLive Series III consoles. Delivering digital precision with the heart and soul of analog, the Series III Fat Channel implements a plug-in-style workflow that features vintage-style EQ and compression options on every channel, from classic tube limiters to passive EQs.
In addition to channel processing, all StudioLive Series III mixers offer 6-band, fully parametric EQ on all mix outputs. Enjoy extensive, studio-style processing when recording, mixing monitors, or even running the front-of-house system.
Technical Specifications
Digital Audio and Control | |
|---|---|
ADC Dynamic Range | 115 dB (A-wtd, 48 kHz) |
DAC Dynamic Range | 115 dB (A-wtd, 48 kHz) |
USB Recording Port | USB 2.0, Type-B |
Network Control Port | RJ-45 |
AVB Audio Network Port | Locking XLR Ethernet |
Internal Processing | 32-bit, floating point |
Sampling Rate | 48 kHz (44.1 kHz coming soon) |
A/D/A Bit Depth | 24 |
Reference Level for 0 dBFS | +18 dBu |
Total System Latency | 1.9 ms (local routing, analog in-analog out, all processing active) |
Microphone Preamplifier | |
|---|---|
Input Type | Combo locking XLR mic-” TRS line |
Frequency Response to Main Output (at unity gain) | 20-20 kHz, 0.5 dBu |
Input Impedance | 1 kΩ |
THD to Main Output | <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd |
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) | 94 dB |
Common Mode Rejection Ratio (1 kHz at unity gain) | 65 dB |
Gain Control Range (1 dB) | 0 dB to +60 dB |
Maximum Input Level (unity gain) | +12 dBu |
Phantom Power (2 VDC) | 48 VDC, switchable per channel |
