HIGHLIGHTS
– Bluetooth
– Phono input
– Coaxial and Opt. Inputs
– MP3 input
– Headphone output
– Double power supply
– High quality DAC
MAIN FEATURES
– High quality manufacturing
– Shielded preamplifier
– Large power output amplifier stage for both channels
– Power stage generously dimensioned allowing it to drive any kind of speakers (8, 4, 2 Ohms).
– Bluetooth with integrated antenna
– Optical and Coaxial digital inputs
– Phono input
– MP3 input 3.5mm
– Headphone output 6.35mm
DAC: The S/PDIF input is interfaced to a AK4112 chip and analog digital conversion is supported by a PCM1606 circuit from Texas Instrument. Maximum sampling is 24 bits at 96 kHz on the coaxial and optical inputs.
Digital Inputs: The OPTICAL connector will override the source connected to COAXIAL, unless the source connected to the optical connector is turned off. In this case, you can listen to the source connected in coaxial.

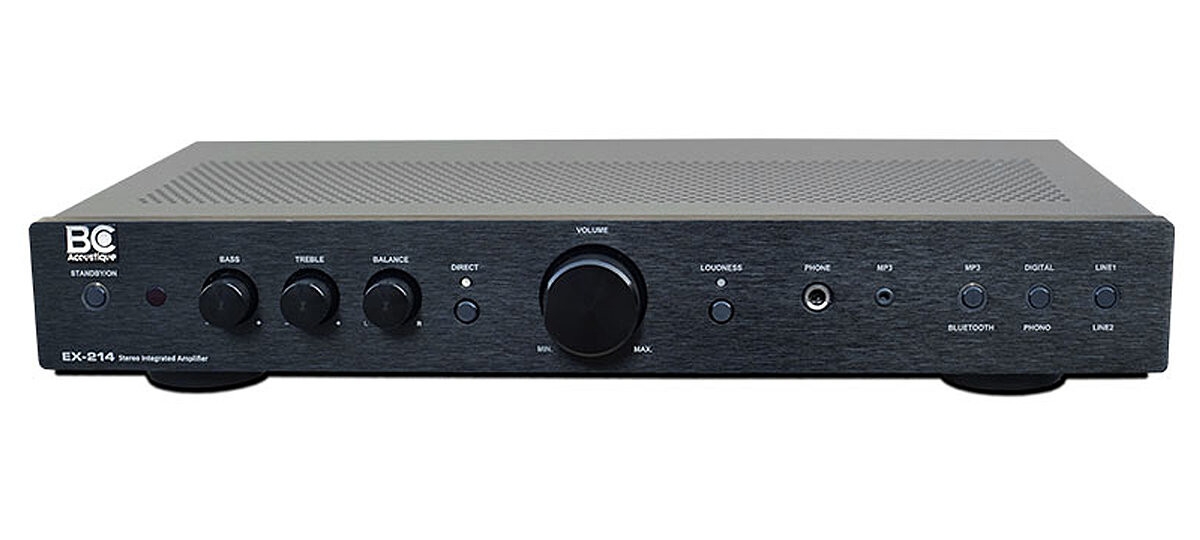

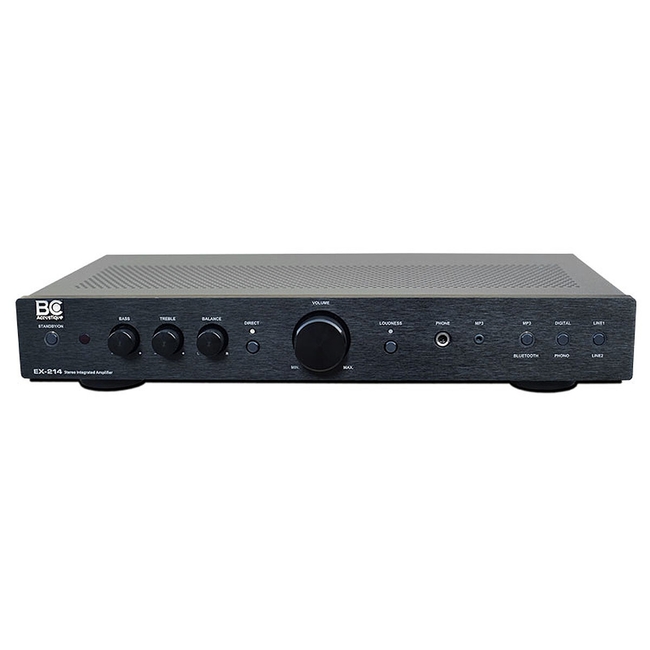

Front panel:
Treble knob: 10Hz +/-10dB
Bass knob: 100Hz +/-10dB
Balance: yes
Direct tactile switch: yes (white LED)
Loudness tectile switch: yes (white LED)
Standby LED: red / blue
Included Accessories
1x Detachable IEC power cord
1x Remote control
2x Batteries
1x Manual
SPECIFICATIONS
Amplifier section
Power: 2x45W RMS into 8 Ω and 2x70W into 4 Ω
Total harmonic distorition < 0,01%
Signal to noise ratio > 100 dBA
Bandwidth: 20 Hz – 20 KHz
Analog max. input: 3,5V
Speaker Impedance Compatibility Range: 2-8 Ω
Bluetooth
Range: about 10 m

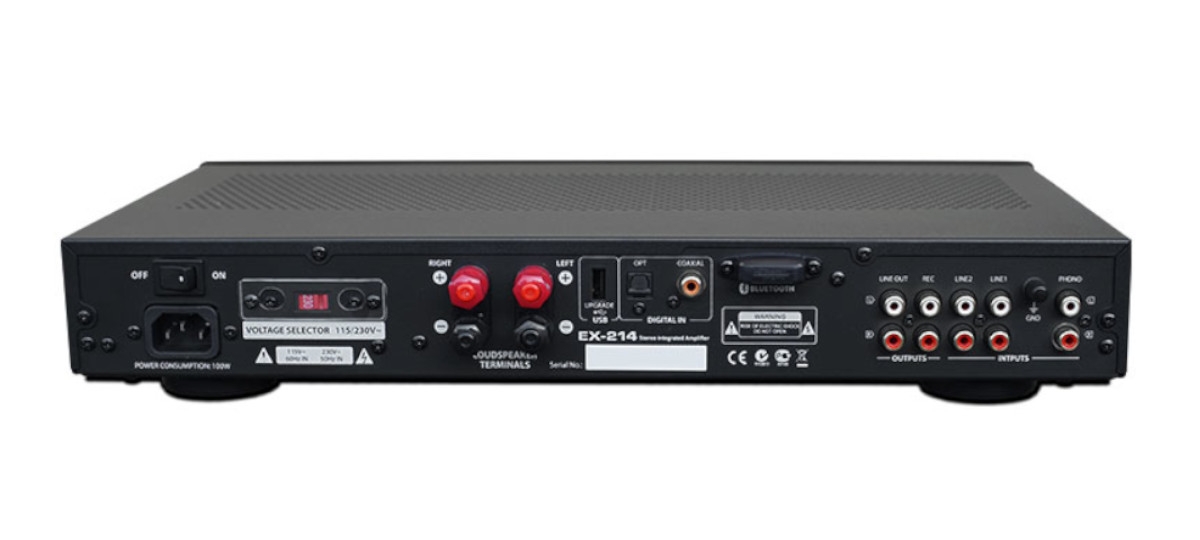

Connectors
2x RCA line inputs
1x Phono input
1x Optical input
1x Coaxial input
1x Output line
1x Output REC
1x MP3 input (Mini-jack 3. 5 mm)
1x USB input (firmware)
1x RCA line output: Pre-Out
1x Headphone Jack 6.35 mm in front
1x Bluetooth integrated antenna
4x Screw terminals compatible with banana plugs
Phono input
Input impedance: 47 KΩ
Gain: 45dB
Frequency band: 10Hz – 20KHz (± 0.2dB of RIAA)
Distortion (1kHz, 1W, 8Ω) < 0.005%
S/PDIF input interfaced: AK4112
DAC: PCM1606
GENERAL
EAN Code Black: 0634654606228
Dimensions (WxHxD) & Weight – PRODUCT: 430 x 60 x 245 mm / 5.72 Kg
Dimensions (WxHxD) & Weight – PACKAGING: 520 x 160 x 346 mm / 6.4 Kg
