Uncompromised Audio Purity
With a focus on delivering pristine sound, the RS130 is engineered to eliminate digital noise and ensure stable output. Its support for Fiber Optic Ethernet and Fiber Optic USB effectively blocks unwanted noise sources, allowing you to indulge in pure audio bliss. The built-in high-precision OCXO clock guarantees precise timing, maintaining a constant temperature for stable and accurate clock signals.
Sophisticated Aesthetics and Engineered for Perfection
Designed to captivate audiophiles both audibly and visually, the RS130 boasts exquisite crystal buttons that exude class and elegance. Complemented by a novel symbol logo-inspired ventilation hole, the RS130 ensures efficient heat dissipation while adding a touch of sophistication to your space.
Pure Power, Pure Sound
For the cleanest and most stable power supply, the RS130 employs a linear power stage powered by a high-capacity supercapacitor. This innovative approach reduces power supply noise to near battery levels, resulting in cleaner and more natural sound quality.

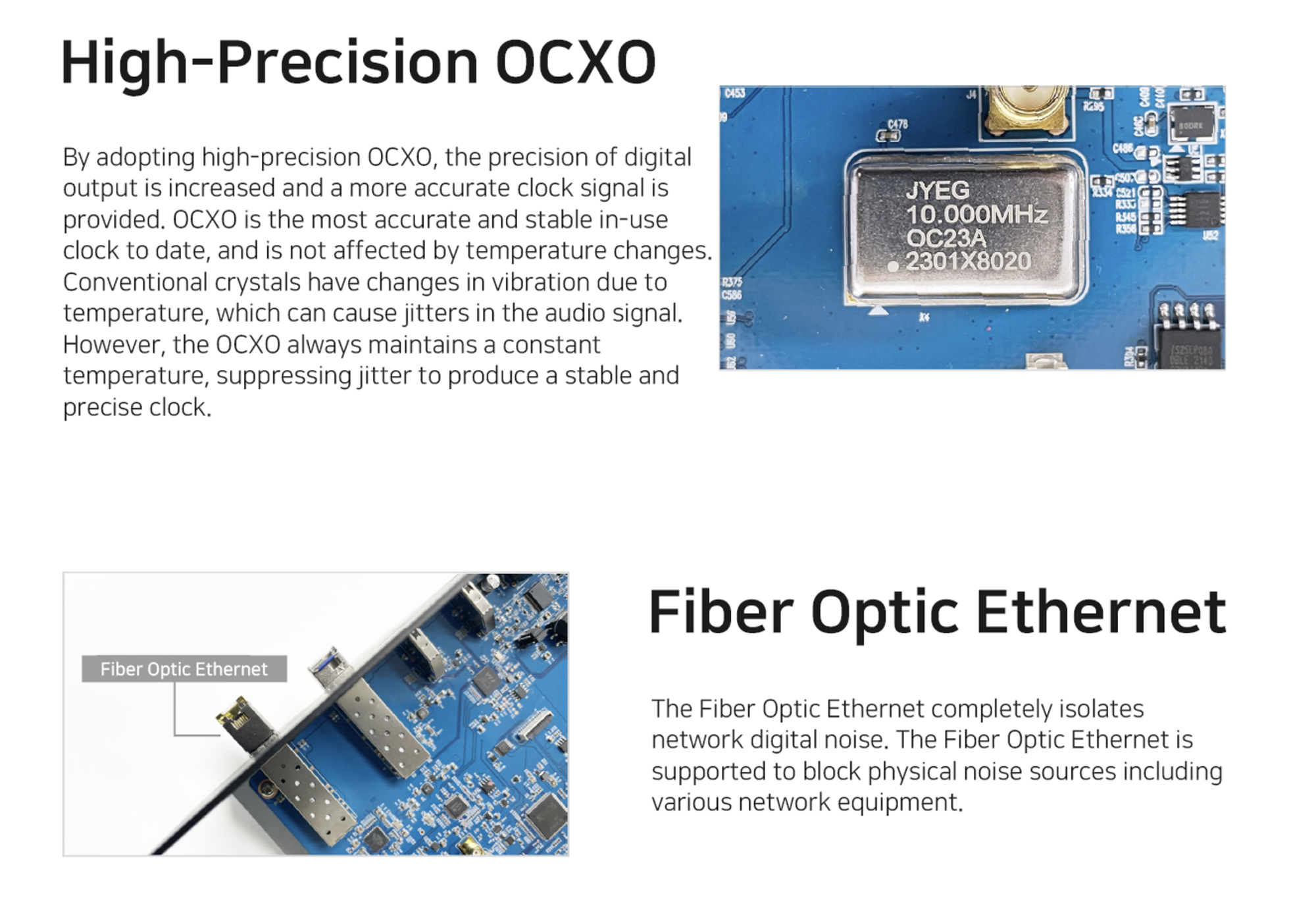

Unleashing Precision
Experience unrivaled precision with the high-precision OCXO. This cutting-edge clock source delivers an accurate and stable clock signal unaffected by temperature changes. Say goodbye to jitter in the audio signal, and embrace a more stable and precise audio performance.
Unrivaled Noise Suppression
The RS130 leverages Fiber Optic Ethernet to completely isolate network digital noise. It effectively blocks physical noise sources, including various network equipment. Similarly, the Fiber Optic USB employs optical conversion to separate pure data from driving noise, ensuring only flawless sound reaches your DAC.

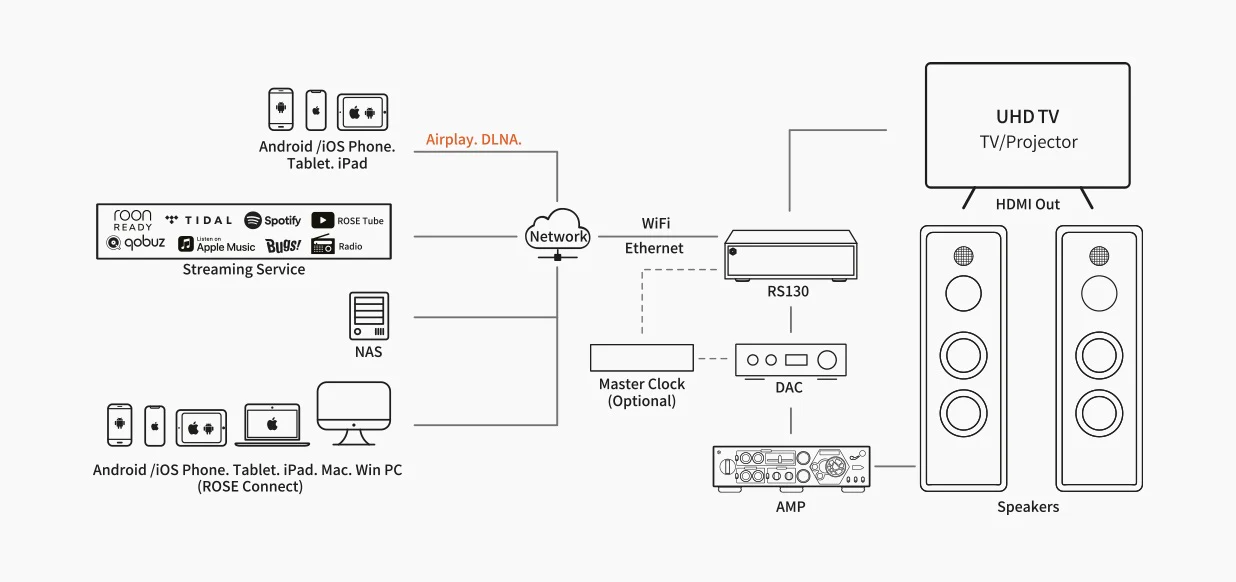

Seamless Synchronization
Embrace perfect synchronization with the RS130's external master clock input. This intelligent feature ensures that audio data is output in sync with the master clock, eliminating jitter in connections between the audio source and the DAC for a harmonious performance.
Music, Cached for Perfection
With an applied SSD for music caching, the RS130 ensures stable playback by eliminating the effects of vibration and noise from traditional HDDs. Delight in seamless network streaming with minimized delay errors.
Χαρακτηριστικά
- Operating System: Customized Android 7.1
- Dimensions:430(W) x 317(D) x 125(H) mm
- Weight:12kg
- Display:15.4" TFT LCD & Capacitive Touch Screen (eDP)
- CPU: Dual-Core Cortex-A72 and Quad-Core Cortex-A53 with separate NEON coprocessor
- GPU: ARM Mali-T860 MP4 Quad-Core GPU
- Memory: LPDDR4 4GB
- Cache Storage: NVMe SSD 256GB
- Network Connection
- Network:SFP Ethernet 10/100/1000 BASE-T(SFP COPPER Type)WiFi:802.11ac Dualband USB Wireless LAN Card (Dongle)
- Bluetooth: V4.2 (USB Dongle)
- Streaming Playback
- Supported Streaming Platforms: Airplay, DLNA, Roon Ready, Spotify Connect, BluetoothSupported Streaming Services: TIDAL, Qobuz, Apple Music, Bugs, ROSE Tube, Internet Radio, ROSE Podcast

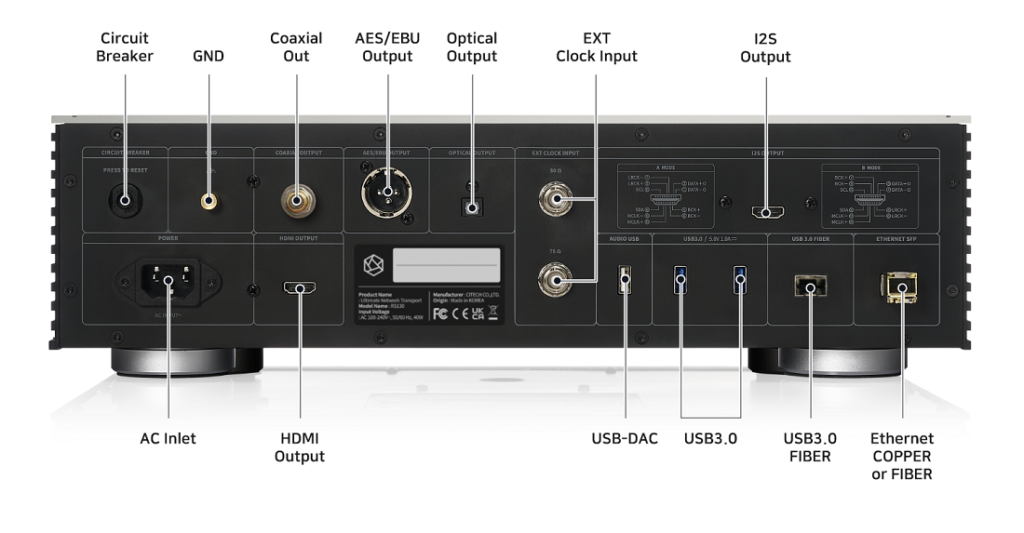

- Input/Outputs
- Audio Output:Optical x 1, Coaxial x 1, AES/EBU OUT x1, HDMI 12S OUT x 1
- Video Output: HDMI 2.0 x 1 (up to 3840 x 2160/60Hz)
- Media Connections
- File System: NTFS / exFAT/FAT32
- Network Protocol: SMBv2/FTP/WebDav
- Storage Interface: USB3.0 x 2, SATA X 1, USB 3.0 Fiber
- Clock Sync Input: 5002 BNC x 1, 75Ω BNC x 1
- Inputable Frequency: 10MHz
- Supported Codec
- Audio: MQA, WAV, FLAC, AIFF, WMA, MP3, OGG, APE, DFF, DSF, AAC, CDA, AMR, APE, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A, ALAC, PCM : 8kHz~768kHz(8/16/24/32bit per Sample), Native DSD: DSD64(2.8MHz)/ DSD128(5.6MHz)/DSD256(11.2MHz)/ DSD512(22.4MHz)
- Video: ASF, AVI, MKV, MP4, WMV,
- H.264/AVC, Base/Main/High/High10 profile @ level 5.1; up to 4Kx2K @ 30fps
- H.265/HEVC, Main/Main 10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps
- VP9, profile 0, up to 4Kx2K @ 60fps
- MPEG-1, ISO/IEC 11172-2, up to 1080P @ 60fps
- MPEG-2, ISO/IEC 13818-2, SP@ML, MP@HL, up to 1080P @ 60fps
- MPEG-4, ISO/IEC 14496-2, SP@LO-3, ASP@LO-5, up to 1080P @ 60fps
- VC-1, SP@ML, MP@HL, AP@LO-3, up to 1080P @ 60fps
- Power
- Input Voltage: AC100-240V 50/60Hz
- Circuit Breaker: 6A Thermal Circuit Breaker
- Software Update
- SW Update: SW update via internet, USB OTA, ROSE Store
- Remote Control
- App: ROSE Connect (Android, iOS, PC)
- Physical: IR Remote Control, Bluetooth Remote Control
- Accessories
- Included Accessories: Power Cord x 1, Remote Controller x 1 (AAA Battery x 2), Manual x 1, SSD Screw x 4 SFP RJ45 COPPER TRANSCEIVER MODULE x 1, WiFi/BT Dongle x 1
