SKU: 001255

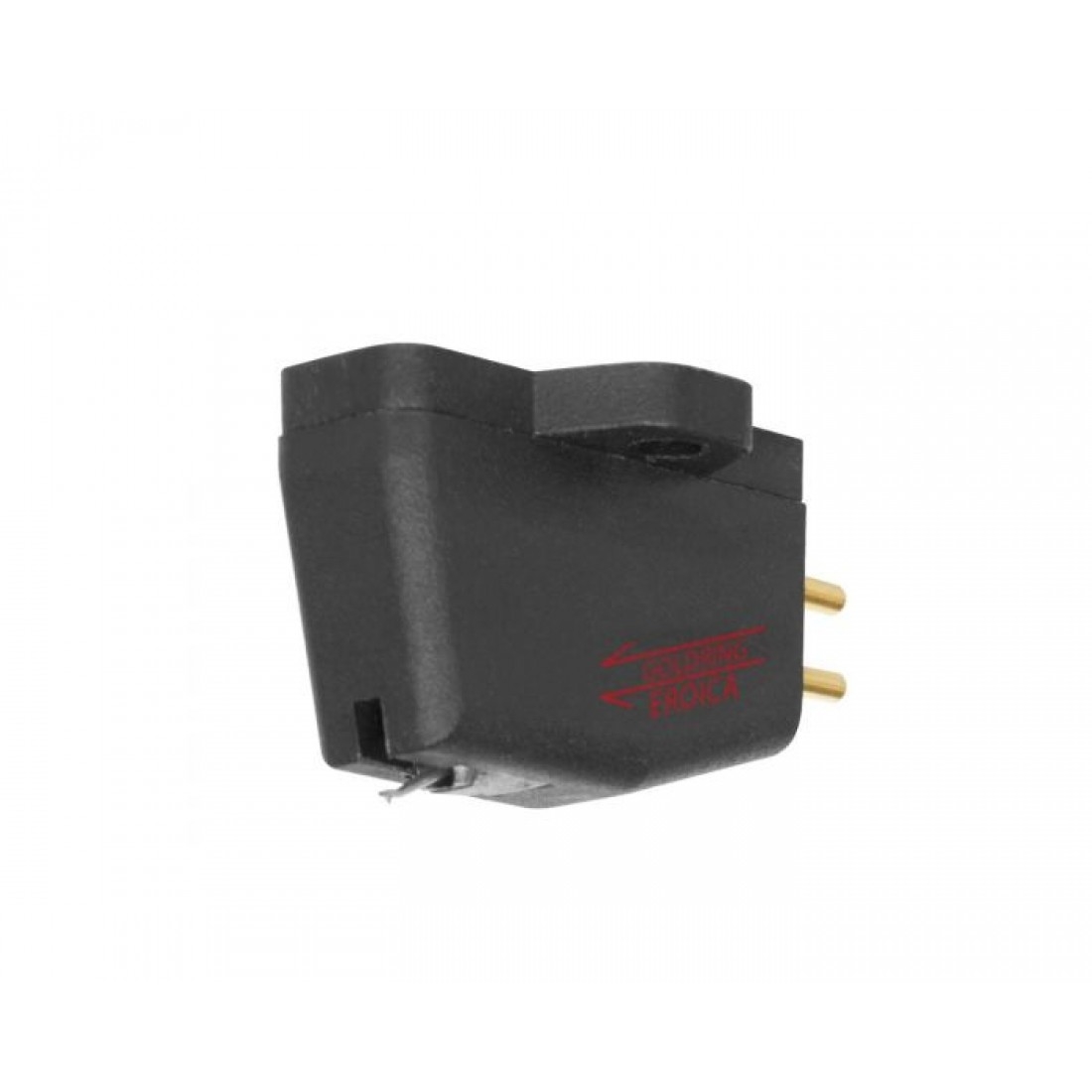

Goldring Eroica-H Moving Coil Cartridge

Ισορ.καναλιών 1dB max@1kHz Eroica-H Διαχ.καν.>25dB @ 1kHz Απόκριση 20Hz-22kHz@±3dB Ευαισθ. 2,5mV± 1,5dB Βάρος κεφαλής /Τύπος 5,5gr/Gyger II Δύναμη αναγν. 1,5-2,0 gr (1,7gr nom.).Αυτή η κεφαλή χρησιμοποιεί μια γραφίδα της βελόνας Gyger ΙΙ με χαμηλή έξοδο που σημαίνει ότι θα πρέπει να χρησιμοποιείται με έναν ενισχυτή που διαθέτει μια ειδική εισόδου phono κινητού πηνίου. Η Eroica προσφέρει ένα εξαιρετικά υψηλό επίπεδο απόδοσης και αξιοπιστίας.

Κατόπιν παραγγελίας - Σύμφωνα με την αποθήκη του προμηθευτή
€595,00 Final Price
Add to cart
Do you have any questions or want to place a phone order? Call us at 2109401167
Type him postcode της περιοχής σας - ώστε να σας ενημερώσουμε για τους τρόπους αποστολής / παραλαβής.
badge

After Sales Support

Supplier guarantee up toYears

star

Next to you since 1976

Over 46 years of experience!

group

Join us

Earn special offers

Alternative Suggestions
Reloop Concorde Black
SKU: 58138
In Stock
€94,99
Τελευταία Τεμάχια
Shure M92E
SKU: 0013776
In Stock
€94,00
€89,00
Audio Technica AT-XP5
SKU: 58697
In Stock
€109,00
€89,00
Audio Technica VM520EB
SKU: 0016068
In Stock
€159,00
€129,00
Audio Technica AT-VM95EN
SKU: 42558
In Stock
€149,00
€139,00
Audio Technica VM540ML
SKU: 0016070
In Stock
€299,00
€269,00
Audio Technica AT-VM95ML
SKU: 42634
In Stock
€199,00
€179,00
Ortofon OM 5E
SKU: 002197
In Stock
€75,00
Ortofon OM 5s
SKU: 57715
In Stock
€59,00
Audio Technica AT81cp  κεφαλή P-Mount
SKU: 0017142
In Stock
€40,00
€30,00
Audio Technica AT-VM95E
SKU: 40417
In Stock
€69,00
€58,00
Top seller
Audio Technica AT-VM95C
SKU: 41714
In Stock
€45,00
€38,00
Goldring E1 Moving Magnet Cartridge GL0054
SKU: 42548
In Stock
€79,00
€78,00
Goldring E2 Moving Magnet Cartridge GL0056
SKU: 42549
In Stock
€109,00
€108,00
Audio Technica AT85EP
SKU: 42641
In Stock
€60,00
€40,00
Audio Technica VM510CB
SKU: 0016067
In Stock
€139,00
€118,00
Audio Technica VM530EN
SKU: 0016069
In Stock
€239,00
€198,00
Ortofon 2M Blue
SKU: 002199
In Stock
€209,00
€207,00
Numark Groove Tool
SKU: 005861
In Stock
€22,90
Audio Technica AT-XP3
SKU: 58689
In Stock
€69,00
€58,00

Η Eroica  είναι μια πραγματικά audiophile κινητού πηνίου κεφαλή, η οποία διαθέτει προηγμένο σχεδιασμό πέλματος πόλων, χρησιμοποιώντας έναν ισχυρό μαγνήτη νεοδυμίου . Αυτή η μοναδική κατασκευή επιτρέπει μια πιο σύντομη μαγνητική διαδρομή, η οποία βοηθά στη μείωση της ποσότητας του σιδήρου στη κεφαλή, κρατώντας το βάρος στα 5.5 γρ. Η ακαμψία είναι επίσης πρωταρχικής σημασίας και το σώμα Pocan® (της κεφαλής) επιτρέπει να στερεώνεται σταθερά στην κεφαλή, διατηρώντας τις ενεργειακές απώλειες στο ελάχιστο.

προδιαγραφές

Frequency Response20 Hz - 22 kHz ± 3 dB
Channel Balance1 dB max. @ 1 kHz
Channel Separation25 dB @ 1 kHz
Sensitivity2.5 mV ± 1 dB, 1 kHz @ 5 cm/sec
Static Compliance18 mm/N
Equivalent tip mass0.6 mg
Vertical Tracking Angle20°
Stylus RadiusGyger II
Stylus TypeNon-Replaceable
Load Resistance47 kΩ
Load Capacitance100 - 500 pF
Internal Inductance0.2 mH
Internal Resistance77 Ω
Cartridge Weight5.5 g
Fixing Centre0.5" (12.7 mm)
Playing Weight1.5 - 2.0 g (1.7 g nom.)



Οδηγίες τοποθέτησης της κεφαλής στον βραχίονα




Step 1
Put the cartridge up to the headshell and gently tighten the screws into the holes.

Step 2
Then use the Allen key to tighten (but not over-tighten) the cartridge into place. To prevent damage, be careful not to knock the stylus guard or stylus

Step 3
Then connect the wires from the back of the tone arm to the coloured connecting pins at the rear of the cartridge. Each wire is colour coded (red, white, green, blue). It is best to use tweezers or a pair of small pliers to connect them.

Step 4
As they are very delicate, it is best to grab the wire by the connector to prevent damage. Ensure the wires are connected properly.

Step 5
The next stage is correctly aligning the cartridge to the protractor. Gently put the stylus of the cartridge on to the crossover point of the protractor.

Step 6
Holding the cartridge off the protractor, use the Allen key to gently loosen the screws. Once loosened you need to rotate the cartridge so that it is parallel with the lines on the protractor. When you are happy that they are parallel, you need to re-tighten the screws.

Step 7
When tightened, place the stylus back on the protractor to confirm it still lines up.

Step 8
Use the second chart to check that everything is parallel in both positions. When you are happy, ensure the screws are tight enough (but not too tight). Your cartridge is now correctly aligned.
